US Type G2150 Bolt Type Chain Shackle
U.S. Type G2150 Bolt Type Chain Shackle
Size: 3/16" -- 4"
Type: Dee type
Material: Alloy steel
Surface Finish: Galvanized, Hot Dip Galvanized, Painted, Self color
Manufacturing Process: Drop Forged
Treatment: Quenched and Tempered
Standard: RR-C-271F, Type IVA, Grade A, Class 2
Application: Heavy Industry, Mining, General Industry, Industrial Lifting, Marine Engineering, Slings Connection
Product Details

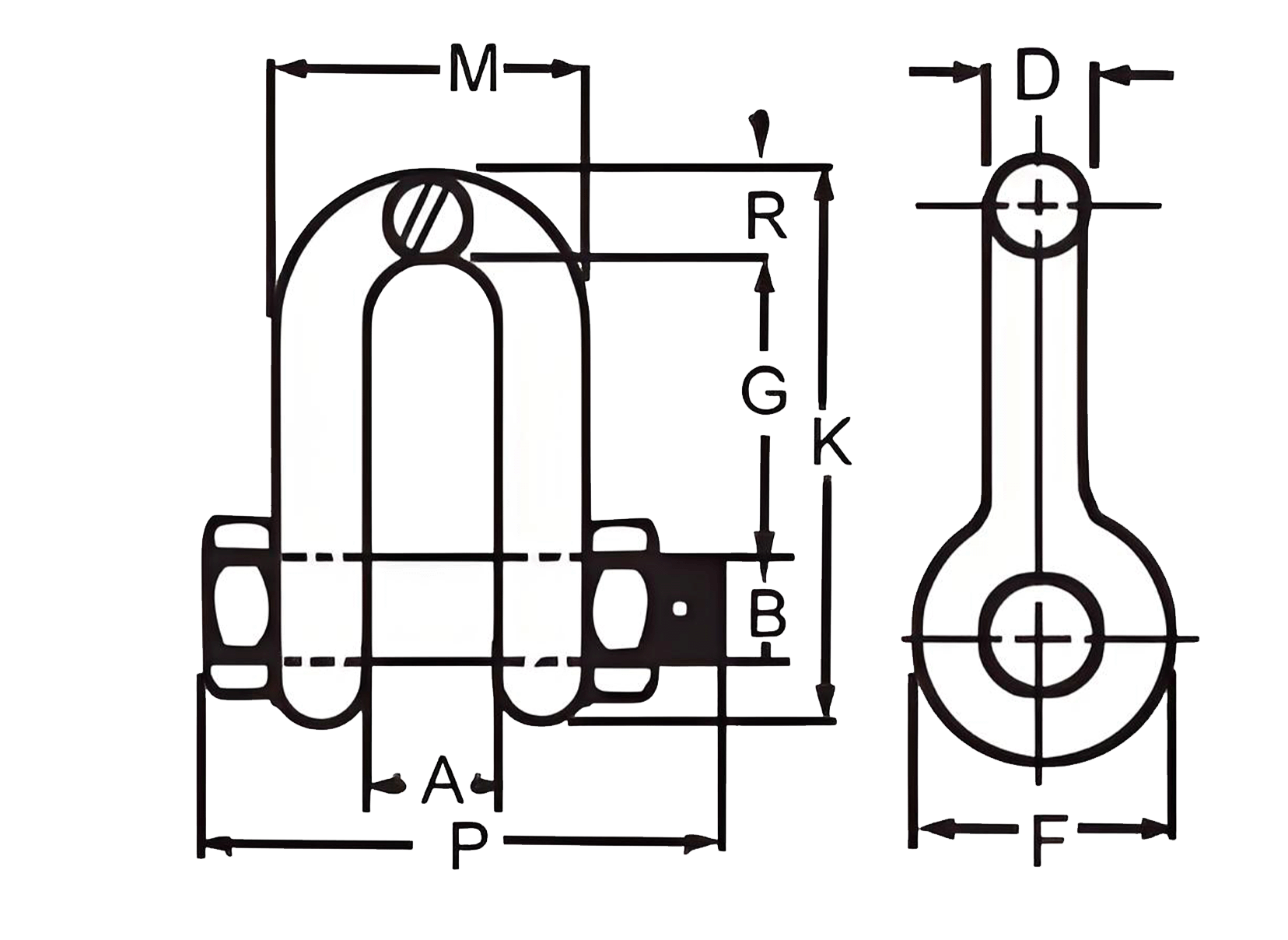

| Nominal Size (in.) | Working Load Limit (tons) | Dimensions (in.) | 2130 Weight Each (Ibs) | 2150 Weight Each (lbs) | |||||||||||||||
| A | B | C | D | E | F | G | H | K | L | M | N | P | R | ||||||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.60 | 0.56 | -- | 1.47 | -- | 0.98 | -- | 0.19 | 1.29 | -- | 0.06 | -- | ||
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | -- | 1.84 | -- | 1.28 | -- | 0.25 | 1.56 | -- | 0.17 | 0.13 | ||
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | -- | 2.09 | -- | 1.47 | -- | 0.31 | 1.82 | -- | 0.22 | 0.23 | ||
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | -- | 2.49 | -- | 1.78 | -- | 0.38 | 2.17 | -- | 0.33 | 0.33 | ||
| 7/16 | 1-1/2 | 0.75 | 0.50 | 1.69 | 0.44 | 1.16 | 1.06 | -- | 2.91 | -- | 2.03 | -- | 0.44 | 2.51 | -- | 0.49 | 0.49 | ||
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.50 | 1.31 | 1.19 | 1.63 | 3.28 | 3.03 | 2.31 | 1.81 | 0.50 | 2.80 | 0.50 | 0.79 | 0.75 | ||
| 5/8 | 3-1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.50 | 2.00 | 4.19 | 3.75 | 2.94 | 2.31 | 0.69 | 3.53 | 0.63 | 1.68 | 1.47 | ||
| 3/4 | 4-3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2.00 | 1.81 | 2.38 | 4.97 | 4.53 | 3.50 | 2.75 | 0.81 | 4.07 | 0.81 | 2.72 | 2.58 | ||
| 7/8 | 6-1/2 | 1.44 | 1.00 | 3.31 | 0.88 | 2.28 | 2.09 | 2.81 | 5.83 | 5.33 | 4.03 | 3.19 | 0.97 | 4.71 | 0.97 | 3.95 | 3.85 | ||
| 1 | 8-1/2 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 3.19 | 6.56 | 5.94 | 4.96 | 3.69 | 1.06 | 5.31 | 1.00 | 6.12 | 5.55 | ||
| 1-1/8 | 9-1/2 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 3.58 | 7.47 | 6.78 | 5.16 | 4.06 | 1.25 | 5.09 | 1.25 | 8.27 | 7.60 | ||
| 1-1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.25 | 3.25 | 3.00 | 3.94 | 8.25 | 7.50 | 5.75 | 4.53 | 1.38 | 6.51 | 1.38 | 11.71 | 10.81 | ||
| 1-3/8 | 3-1/2 | 2.25 | 1.50 | 5.25 | 1.38 | 3.63 | 3.31 | 4.38 | 9.16 | 8.28 | 6.38 | 5.00 | .50 | 7.21 | 1.50 | 15.83 | 13.75 | ||
| 1-1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.50 | 3.88 | 3.63 | 4.81 | 10.00 | 9.06 | 6.88 | 5.38 | 1.62 | 7.73 | 1.62 | 20.80 | 18.50 | ||
| 1-3/4 | 25 | 2.88 | 2.00 | 7.00 | 1.75 | 5.00 | 4.19 | 5.75 | 12.34 | 10.97 | 8.86 | 6.38 | 2.25 | 9.05 | 2.12 | 33.91 | 31.40 | ||
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.00 | 5.75 | 4.85 | 6.75 | 13.68 | 12.28 | 9.97 | 7.25 | 2.40 | 10.41 | 2.00 | 52.25 | 46.75 | ||
| 2-1/2 | 55 | 4.13 | 2.75 | 10.50 | 2.62 | 7.25 | 5.69 | 8.00 | 17.84 | 14.84 | 12.87 | 9.38 | 3.13 | 13.56 | 2.62 | 98.25 | 85.00 | ||
| 3 | 85 | 5.00 | 3.25 | 13.00 | 3.00 | 7.88 | 6.50 | 8.50 | 21.50 | 16.88 | 14.36 | 11.00 | 3.62 | 16.50 | 3.50 | 154.00 | 124.25 | ||
| 3-1/2 | 120 | 5.25 | 3.75 | 14.63 | 3.62 | 9.00 | 8.00 | -- | 24.63 | -- | 16.50 | -- | 4.12 | 19.00 | -- | 265.00 | -- | ||
| 4 | 150 | 5.50 | 4.24 | 14.50 | 4.10 | 10.00 | 9.00 | -- | 25.69 | -- | 18.12 | -- | 4.56 | 19.75 | -- | 338.00 | -- | ||
Note: * Drop Forged, Quenched And Tempered, With Alloy Pins.
* Max Proof Load is 2.2 Times The Working Load Limit, Min Break Strength is 6 Times W.L.L.
