Delta Plate / Triangular Connecting Plate
Delta Plate / Triangular Connecting Plate
Material: high-strength steel
Surface Treatment: black anti-tar coating, Hot dip Galvanized
Safe Working Load (SWL): 9.5-200Ton
Certification: BV, ABS, LRS, DNV-GL, and CCS
Applications: Multi-point connection, Mooring arrangements, Buoy mooring systems, Lifting spreader beams
Product Details

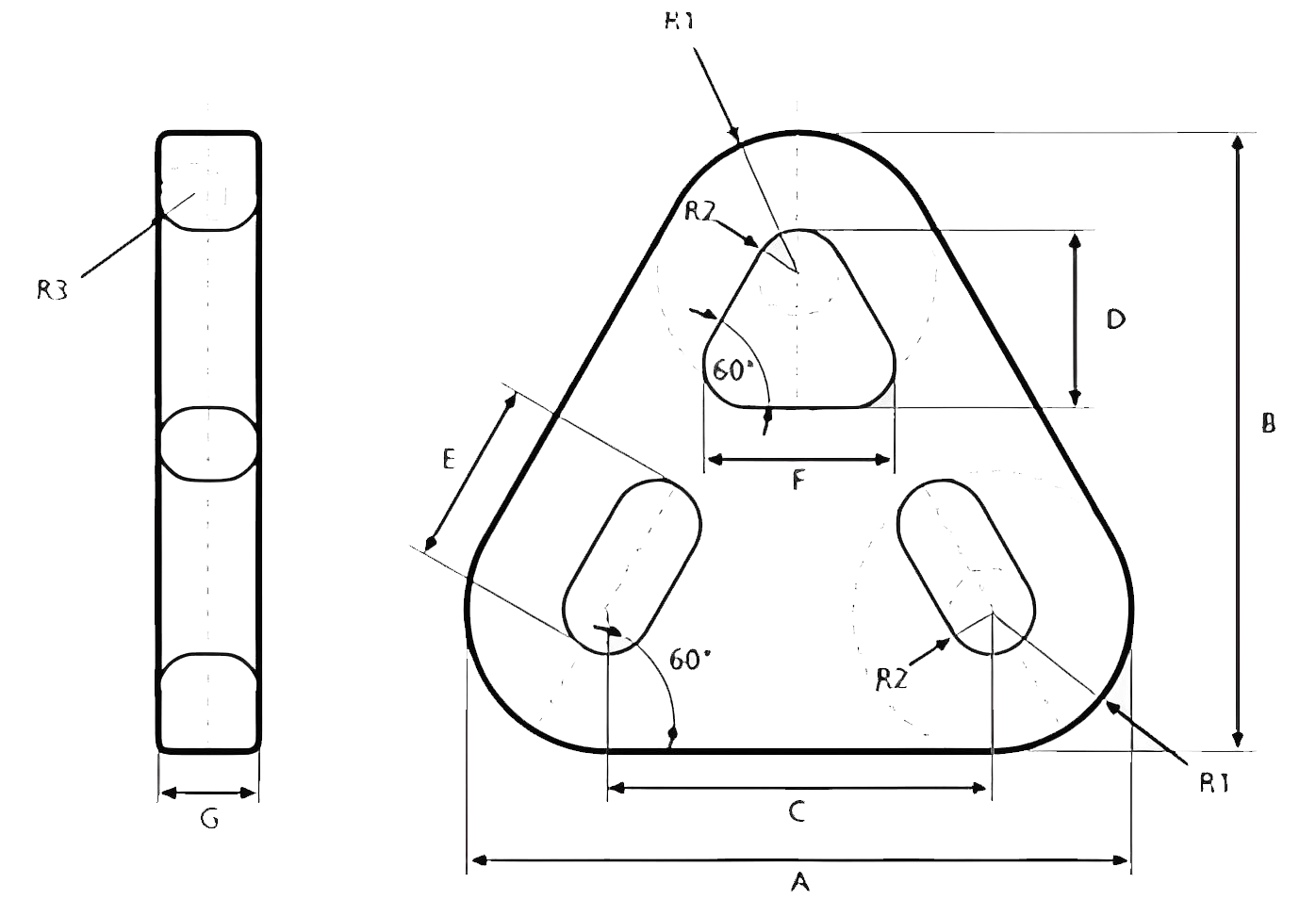

| WLL Tonnes | BL Tonnes | A mm | B mm | C mm | D mm | E mm | F mm | G mm | R1 mm | R2 mm | R3 mm | Weight Kgs |
| 95 | 57 | 250 | 230 | 148 | 70 | 75 | 75 | 36 | 51 | 19 | 14 | |
| 12 | 72 | 287 | 264 | 175 | 80 | 85 | 87 | 42 | 56 | 20 | 16 | 16.5 |
| 17 | 102 | 355 | 326 | 215 | 95 | 105 | 102 | 50 | 70 | 25 | 20 | 335 |
| 35 | 210 | 507 | 469 | 287 | 130 | 143 | 140 | 70 | 110 | 34 | 25 | 835 |
| 55 | 330 | 600 | 553 | 350 | 167 | 167 | 180 | 90 | 125 | 40 | 32 | 123 |
| 85 | 510 | 690 | 639 | 399 | 185 | 195 | 199 | 115 | 145 | 46 | 40 | 191 |
| 120 | 720 | 825 | 762 | 475 | 219 | 230 | 237 | 125 | 175 | 55 | 45 | 357 |
| 200 | 1200 | 1089 | 1006 | 627 | 270 | 300 | 289 | 165 | 231 | 73 | 59 | 830 |
