Swivel Shackle

Product attributes :

Marine Anchor Chain Swivel Shackle for Boat

Brand: RM

Chain Grade: U2, U3

Surface Treatment: Black Painted

Material: Alloy Stee

Purpose: Marine / Offshore / Shipbuilding / Mooring / Fishing

Certification: ABS / LR / BV / CCS / DNV

Type: Anchor Chains Accessories

Our swivel shackles are designed for secure and flexible connections in marine, offshore, and industrial applications, ensuring smooth rotation under heavy loads.

The swivel mechanism allows free movement, reducing chain twist and improving operational safety during anchoring and mooring.

We supply swivel shackles in various sizes to match different anchor chain diameters and marine equipment specifications.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

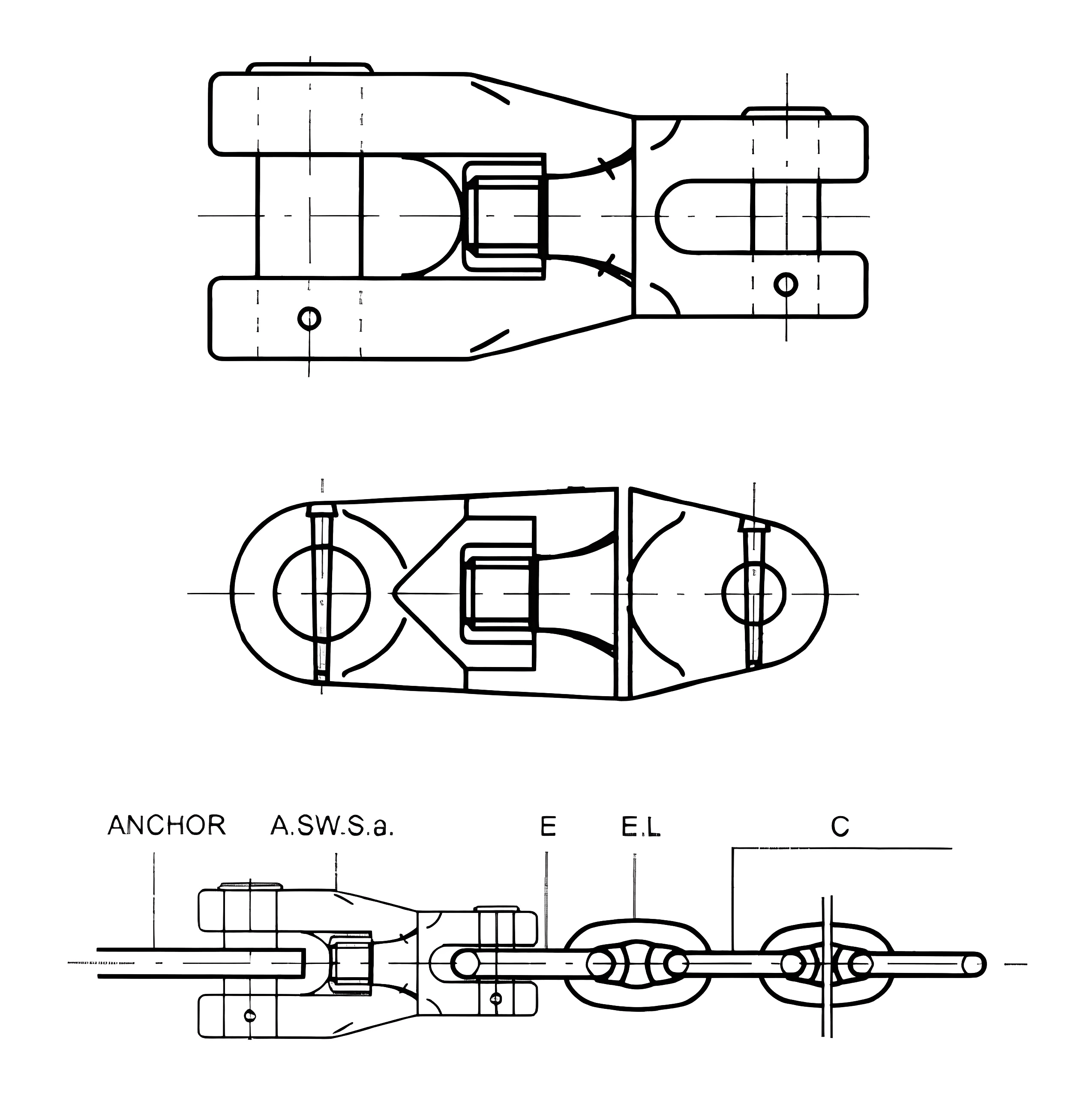

APPLY TO ANCHOR CHAIN'S SPECIFICATION MM	SWIVEL SHACKLE(A-TYPE)AM3(MM)
APPLY TO ANCHOR CHAIN'S SPECIFICATION MM	L	B	B1	b	b1	R	R1	b1	b2	L1	L2	b3
111 114 117	1498	660	460	225	165	230	188	200	154	361	315	M180
105 107	1398	600	420	220	150	210	176	185	140	335	269	M175
100 102	1308	571	412	210	143	206	164	175	133	300	253	M160
90 92 95	1206	532	380	200	133	190	152	165	124	280	231	M150
84 87	1118	487	352	180	122	176	140	150	113	260	214	M140
78 81	1042	454	328	172	113	164	130	140	106	240	193	M130
70 73 76	965	426	304	168	106	152	120	130	100	225	164	M120
64 66 68	868	380	265	145	95	136	106	116	88	200	170	M110
58 60 62	787	348	252	135	88	126	100	106	82	185	152	M100
54 56	712	314	218	120	78	109	88	102	73	168	135	M90
50 52	712	290	202	110	73	109	88	96	68	168	135	M90

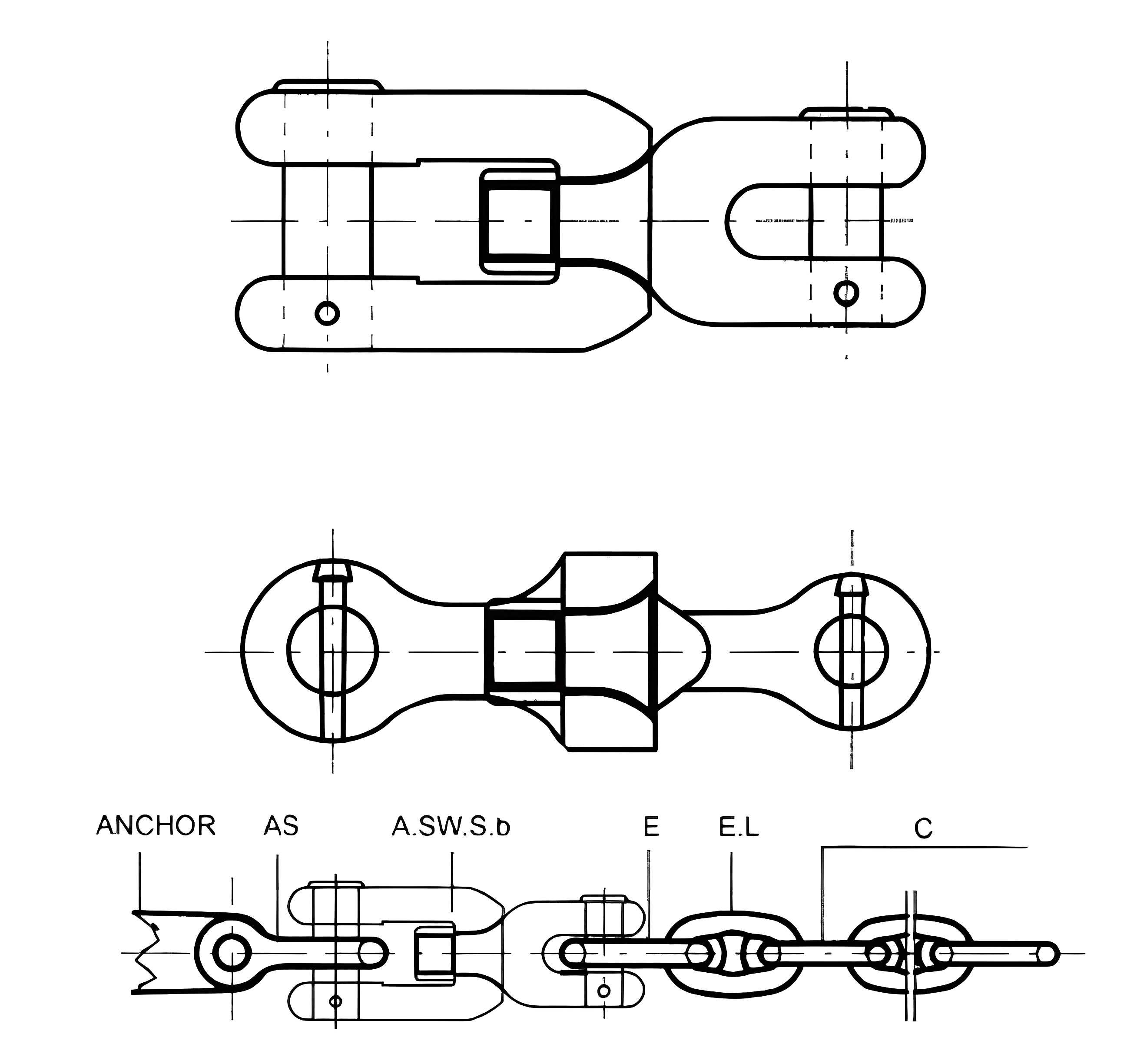

PPLY TO ANCHOR CHAIN'S SPECIFICATION MM	SWIVEL SHACKLE(B-TYPE)AM3(MM)
PPLY TO ANCHOR CHAIN'S SPECIFICATION MM	L	I	B	b	B1	b1	D	D1	d1	d2	C
111	1483	955	555	244	444	155	389	333	189	144	422
107	1430	920	535	235	428	150	375	321	182	139	407
105	1403	903	525	231	420	147	368	315	178	137	399
102	1363	877	510	224	408	143	357	306	173	133	388
100	1336	860	500	220	400	140	350	300	170	130	380
97	1296	834	485	213	288	136	340	291	165	126	369
95	1269	817	475	209	380	133	333	285	162	124	361
92	1229	791	460	202	368	129	322	276	156	120	350
90	1202	774	450	198	360	126	315	270	153	117	342
87	1162	748	435	191	348	122	305	261	148	113	331
84	1122	722	420	185	336	118	294	252	142	109	319
81	1082	697	405	178	324	113	286	243	138	105	308
78	1042	671	390	172	312	109	273	234	133	101	296
76	1015	654	380	167	304	106	268	228	130	99	289
73	975	628	365	161	292	102	255	219	124	95	277
70	935	602	350	154	280	98	245	210	119	91	266
68	908	585	340	150	272	95	238	204	116	88	258
66	882	568	330	145	264	92	231	198	112	86	251
64	855	550	320	141	256	90	224	192	109	83	243
62	828	533	310	136	248	87	217	186	105	81	236
60	802	516	300	132	240	84	210	180	102	78	228
58	775	499	290	128	232	81	203	174	99	75	220
56	748	482	280	123	224	78	196	168	95	73	213
54	721	464	270	119	216	76	189	162	92	70	205
52	695	447	260	114	208	73	182	156	88	68	198
50	668	430	250	110	200	70	175	150	85	65	190
