Australian Standard Link Chain

(5)

Product attributes :

Australian Standard Link Chain

Brand: RM

Finish: Self Color, Galvanized

Structure: Welded chain

Material: Carbon steel

The Australian Standard Link Chain is designed for versatility in general lifting and rigging operations. Manufactured with solid steel and precision welding, this chain offers consistent durability under demanding conditions.

Whether used in industrial hoisting or everyday rigging, it maintains load security and operational efficiency. Its standardized link shape ensures compatibility with a wide range of hardware components.

Our link chains comply with Australian Standard specifications, ensuring consistent quality, dimensional accuracy, and safe working loads.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

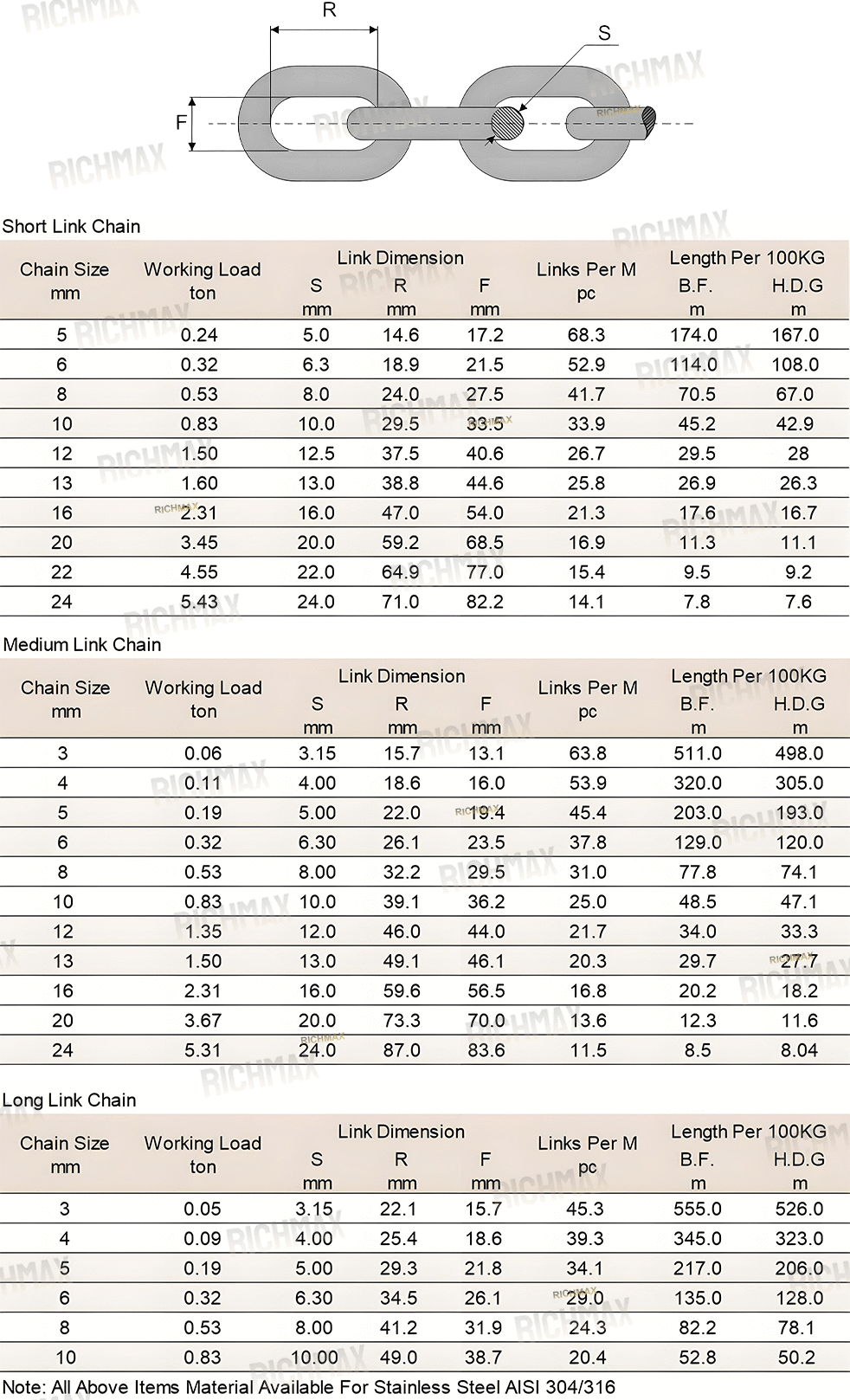

Short Link Chain

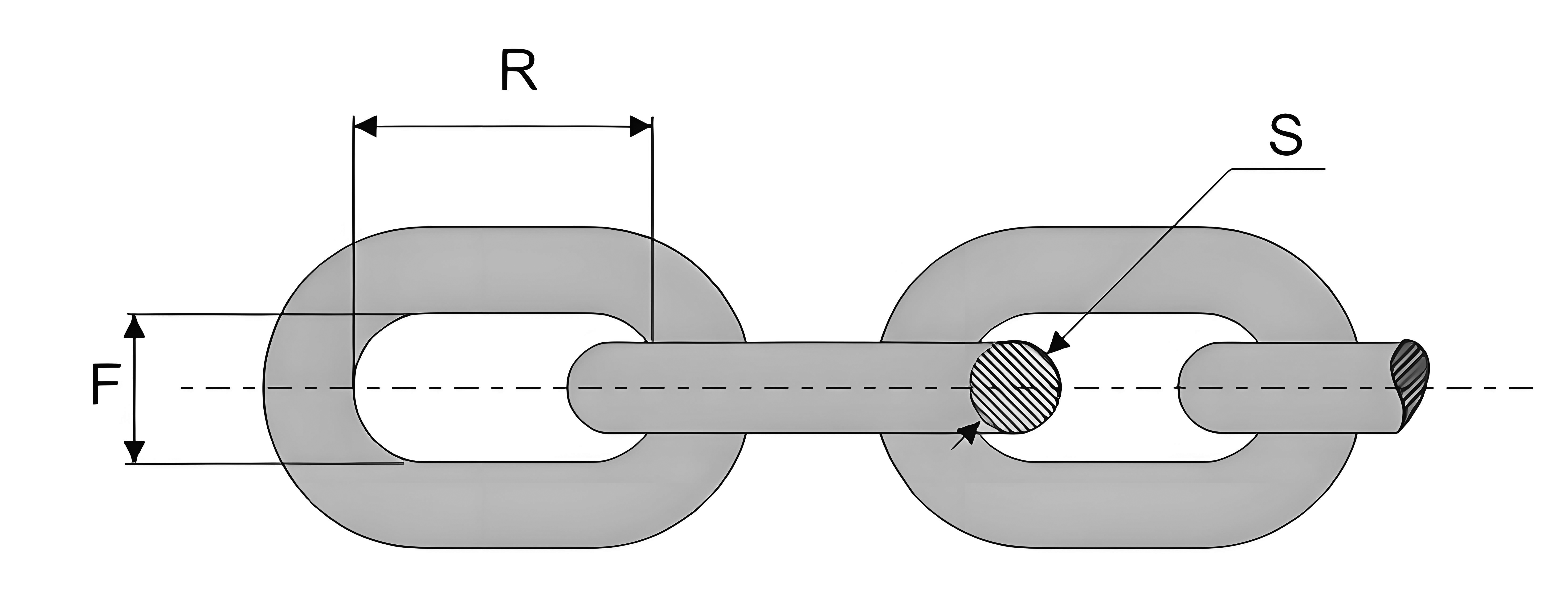

Chain Size mm	Working Load ton	Link Dimension			Links Per M pc	Length Per 100KG
Chain Size mm	Working Load ton	S mm	R mm	F mm	Links Per M pc	B.F. m	H.D.G m
5	0.24	5.0	14.6	172	68.3	174.0	167.0
6	0.32	6.3	18.9	21.5	52.9	114.0	108.0
8	0.53	8.0	24.0	27.5	41.7	70.5	67.0
10	0.83	10.0	29.5	33.5	33.9	45.2	42.9
12	1.50	12.5	37.5	40.6	26.7	29.5	28
13	1.60	13.0	38.8	44.6	25.8	26.9	26.3
16	2.31	16.0	47.0	54.0	21.3	17.6	16.7
20	3.45	20.0	59.2	68.5	16.9	11.3	11.1
22	4.55	22.0	64.9	77.0	15.4	9.5	9.2
24	5.43	24.0	71.0	82.2	14.1	7.8	7.6

Medium Link Chain

Chain Size mm	Working Load ton	Link Dimension			Links Per M pc	Length Per 100KG
Chain Size mm	Working Load ton	S mm	R mm	F mm	Links Per M pc	B.F. m	H.D.G m
3	0.06	3.15	15.7	13.1	63.8	511.0	498.0
4	0.11	4.00	18.6	16.0	53.9	320.0	305.0
5	0.19	5.00	22.0	19.4	45.4	203.0	193.0
6	0.32	6.30	26.1	23.5	37.8	129.0	120.0
8	0.53	8.00	32.2	29.5	31.0	77.8	74.1
10	0.83	10.0	39.1	36.2	25.0	48.5	47.1
12	1.35	12.0	46.0	44.0	21.7	34.0	33.3
13	1.50	13.0	49.1	46.1	20.3	29.7	27.7
16	2.31	16.0	59.6	56.5	16.8	20.2	18.2
20	3.67	20.0	73.3	70.0	13.6	12.3	11.6
24	5.31	24.0	87.0	83.6	11.5	8.5	8.04

Long Link Chain

Chain Size mm	Working Load ton	Link Dimension			Links Per M pc	Length Per 100KG
Chain Size mm	Working Load ton	S mm	R mm	F mm	Links Per M pc	B.F. m	H.D.G m
3	0.05	3.15	22.1	15.7	45.3	555.0	526.0
4	0.09	4.00	25.4	18.6	39.3	345.0	323.0
5	0.19	5.00	29.3	21.8	34.1	217.0	206.0
6	0.32	6.30	34.5	26.1	29.0	135.0	12B.0
8	0.53	8.00	41.2	31.9	24.3	82.2	78.1
10	0.83	10.00	49.0	38.7	20.4	52.8	50.2

Note: All Above Items Material Available For Stainless Steel AISI 304/316.
