DIN 5685 Link Chain

(5)

Product attributes :

DIN 5685 A/C Short/Long Link Chain

Brand: RM

Finish: Self Color, Galvanized

Structure: Welded chain

Material: Carbon steel

Manufactured from strong steel and conforming to DIN 5685 A/C specifications, this link chain ensures consistent performance in industrial and marine operations. With both short and long versions available, it can accommodate diverse applications including lifting slings, lashing systems, and load supports.

The DIN 5685 A/C Short/Long Link Chain is offered in varied sizes and finishes to meet exact rigging needs.

DIN5685 link chain is manufactured to meet German DIN standards, offering both short and long link designs for versatile applications.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

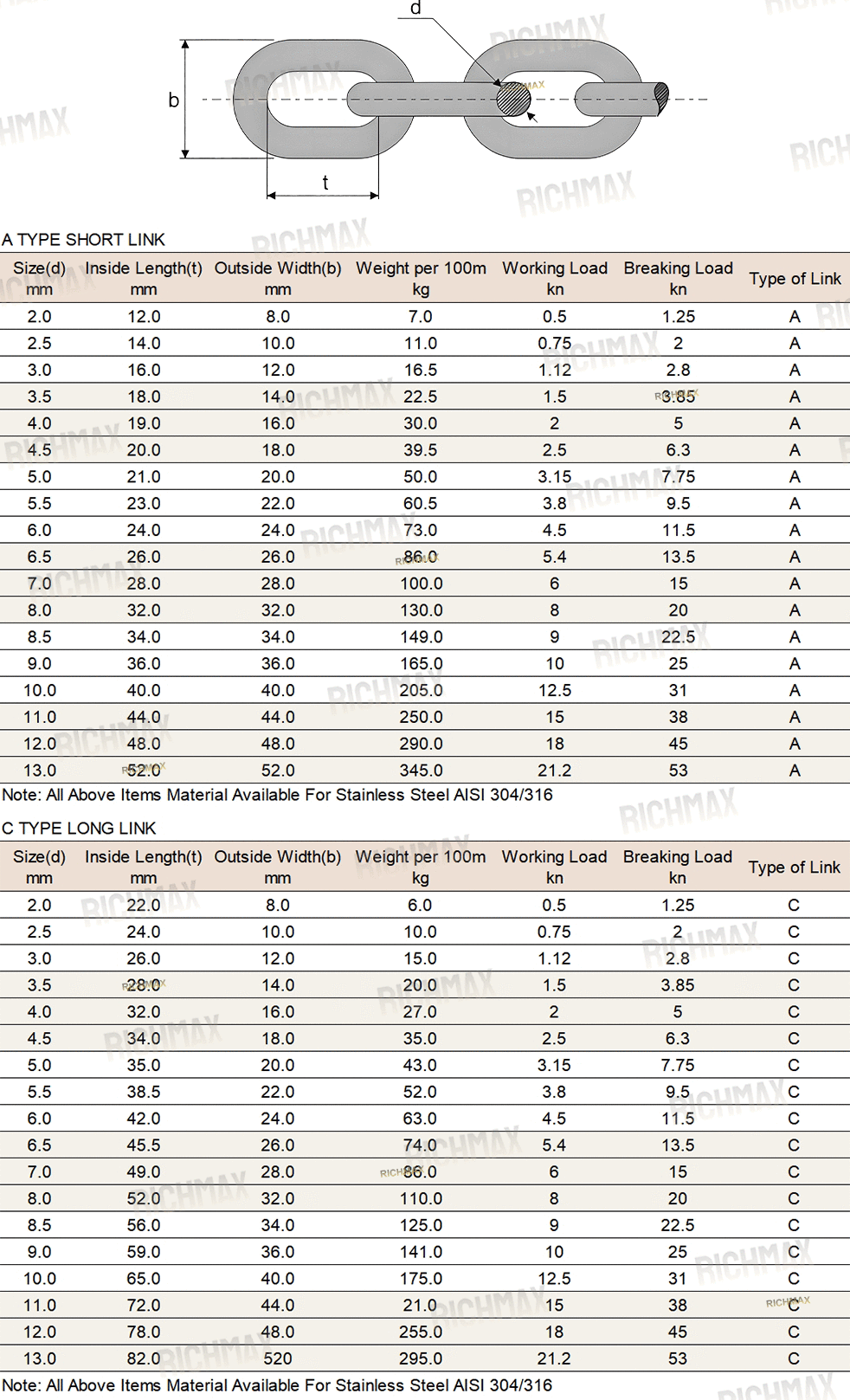

A TYPE SHORT LINK

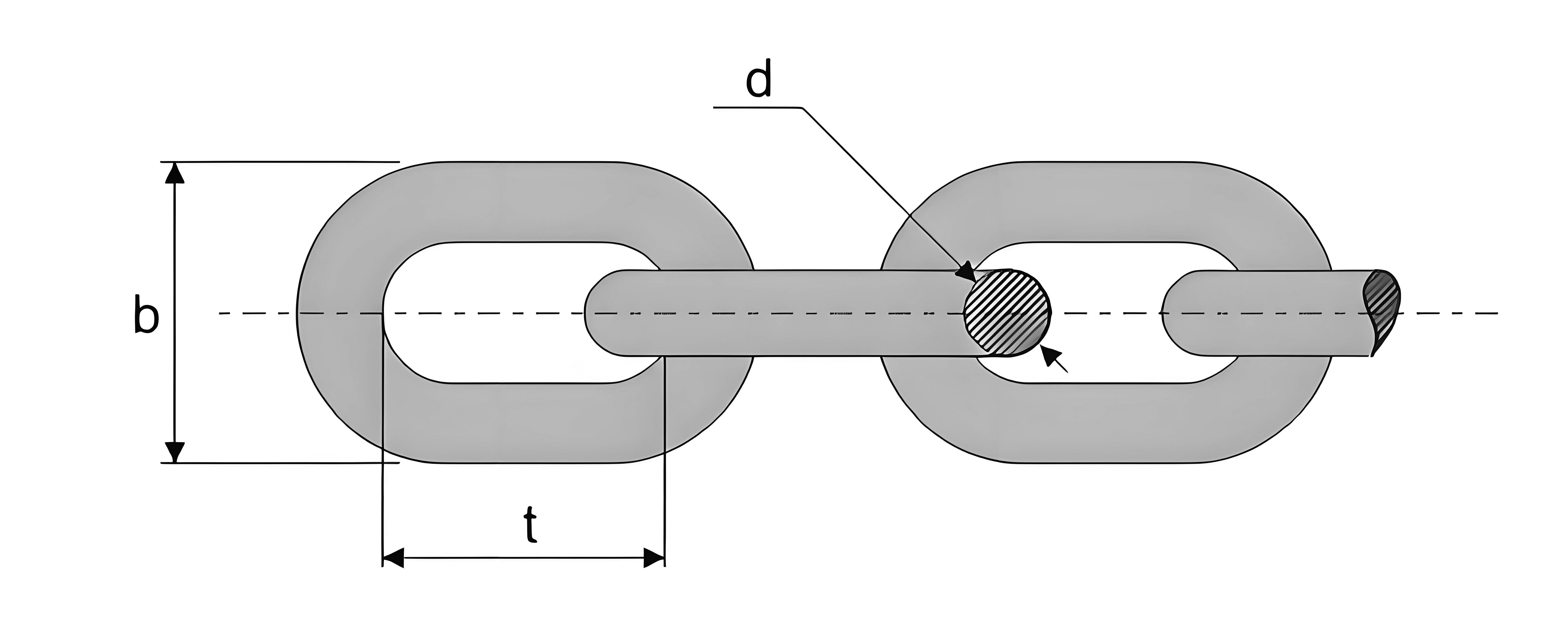

Size(d) mm	Inside Length(t) mm	Outside Width(b) mm	Weight per 100m kg	Working Load kn	Breaking Load kn	Type of Link


2.0	12.0	8.0 7.0		0.5	1.25	A
2.5	14.0	10.0	11.0	0.75	2	A
3.0	16.0	12.0	16.5	1.12	2.8	A
3.5	18.0	14.0	22.5	1.5	3.85	A
4.0	19.0	16.0	30.0	2	5	A
4.5	20.0	18.0	39.5	2.5	6.3	A
5.0	21.0	20.0	50.0	3.15	7.75	A
5.5	23.0	22.0	60.5	3.8	9.5	A
6.0	24.0	24.0	73.0	4.5	11.5	A

6.5	26.0	26.0	86.0	5.4	13.5	A
7.0	28.0	28.0	100.0	6	15	A
8.0	32.0	32.0	130.0	8	20	A

8.5	34.0	34.0	149.0	9	22.5	A
9.0	36.0	36.0	165.0	10	25	A
10.0	40.0	40.0	205.0	12.5	31	A
11.0	44.0	44.0	250.0	15	38	A
12.0	48.0	48.0	290.0	18	45	A
13.0	52.0	52.0	345.0	21.2	53	A

C TYPE LONG LINK

Size(d) mm	Inside Length(t) mm	Outside Width(b) mm	Weight per 100m kg	Working Load kn	Breaking Load kn	Type of Link
2.0	22.0	8.0	6.0	0.5	1.25	C
2.5	24.0	10.0	10.0	0.75	2	C
3.0	26.0	12.0	15.0	1.12	2.8	C
3.5	28.0	14.0	20.0	1.5	3.85	C
4.0	32.0	16.0	27.0	2	5	C
4.5	34.0	18.0	35.0	2.5	6.3	C
5.0	35.0	20.0	43.0	3.15	7.75	C
5.5	38.5	22.0	52.0	3.8	9.5	C
6.0	42.0	24.0	63.0	4.5	11.5	C
6.5	45.5	26.0	74.0	5.4	13.5	C
7.0	49.0	28.0	86.0	6	15	C

8.0	52.0	32.0	110.0	8	20	C
8.5	56.0	34.0	125.0	9	22.5	C
9.0	59.0	36.0	141.0	10	25	C
10.0	65.0	40.0	175.0	12.5	31	C
11.0	72.0	44.0	211.0	15	38	C
12.0	78.0	48.0	255.0	18	45	C
13.0	82.0	52.0	295.0	21.2	53	C

Note: All Above Items Material Available For Stainless Steel AISI 304/316
