British Standard Link Chain

(5)

Product attributes :

British Standard Link Chain

Brand: RM

Finish: Self Color, Galvanized

Structure: Welded chain

Material: Carbon steel

The British Standard Link Chain is a high-performance chain designed for use in lifting and rigging applications. Made from high-strength steel, it provides secure, reliable connections for all types of lifting machinery and equipment.

Whether you're handling heavy loads or need a durable chain for regular use, this chain guarantees strength and long-lasting reliability.

Our link chains are produced in strict accordance with British Standard specifications, ensuring consistent quality, strength, and reliability for demanding lifting, marine, and industrial applications.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

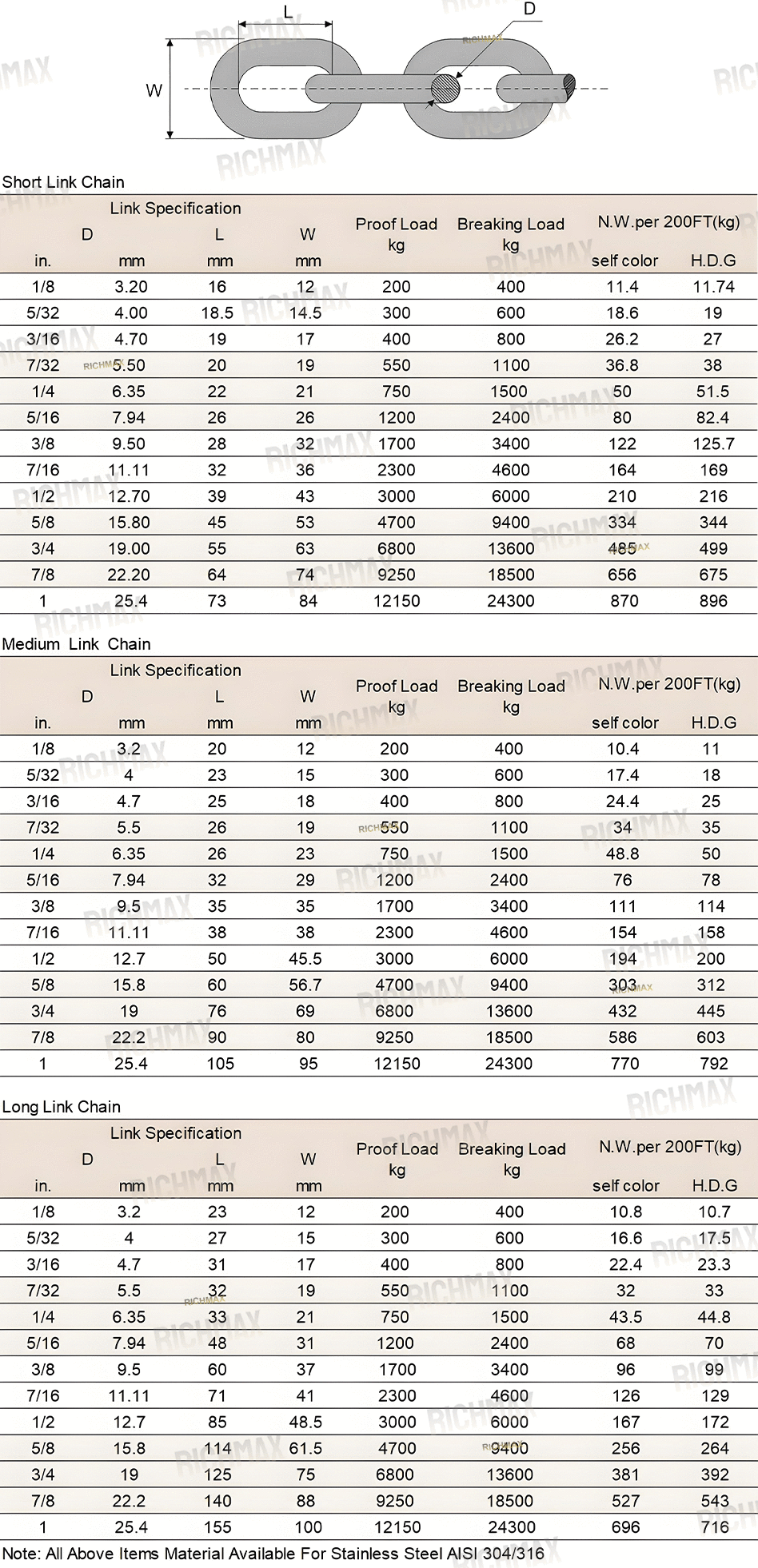

Short Link Chain

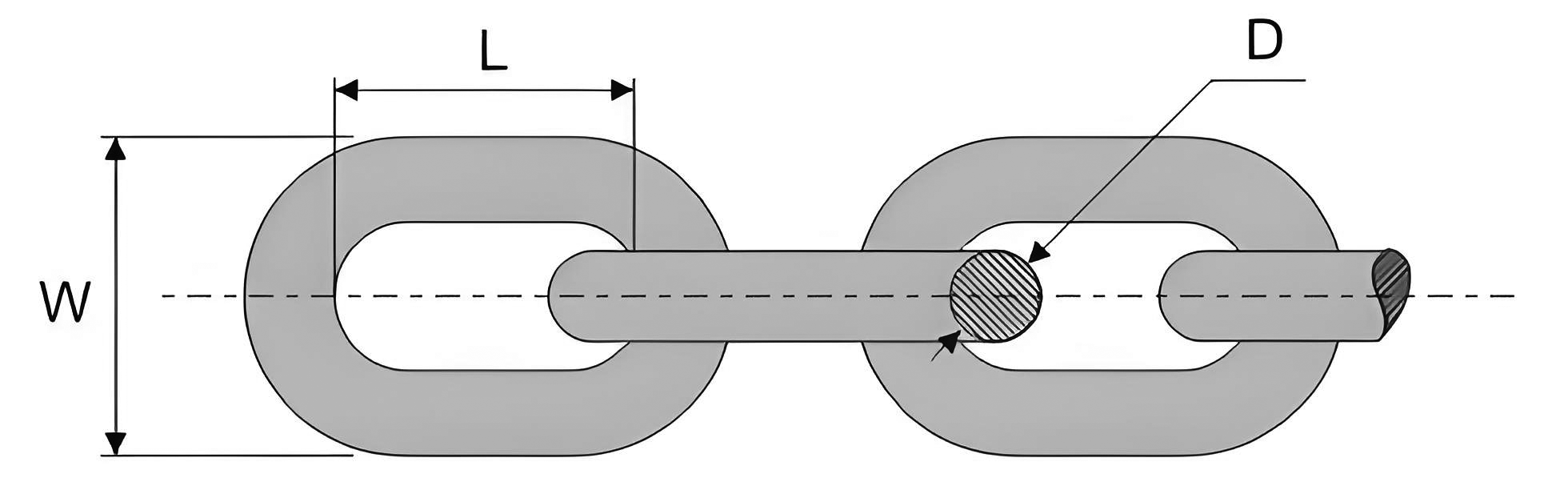

Link Specification				Proof Load	Breaking Load	N.W.per 200FT(kg)
D		L	W	Proof Load	Breaking Load	N.W.per 200FT(kg)
in.	mm	mm	mm	kg	kg	self color	H.D.G
1/8	3.20	16	12	200	400	11.4	11.74
5/32	4.00	18.5	14.5	300	600	18.6	19
3/16	4.70	19	17	400	800	26.2	27
7/32	5.50	20	19	550	1100	36.8	38
1/4	6.35	22	21	750	1500	50	51.5
5/16	7.94	26	26	1200	2400	80	82.4
3/8	9.50	28	32	1700	3400	122	125.7
7/16	11.11	32	36	2300	4600	164	169
1/2	12.70	39	43	3000	6000	210	216
5/8	15.80	45	53	4700	9400	334	344
3/4	19.00	55	63	6800	13600	485	499
7/8	22.20	64	74	9250	18500	656	675
1	25.4	73	84 12150	12150	24300	870 896	896

Medium Link Chain

Link Specification				Proof Load	Breaking Load	N.W.per 200FT(kg)
D		L	W	Proof Load	Breaking Load	N.W.per 200FT(kg)
in.	mm	mm	mm	kg	kg	self color	H.D.G
1/8	3.2	20	12	200	400	10.4	11
5/32	4	23	15	300	600	17.4	18
3/16	4.7	25	18	400	800	24.4	25
7/32	5.5	26	19	550	1100	34	35
1/4	6.35	26	23	750	1500	48.8	50
5/16	7.94	32	29	1200	2400	76	78
3/8	9.5	35	35	1700	3400	111	114
7/16	11.11	38	38	2300	4600	154	158
1/2	12.7	50	45.5	3000	6000	194	200
5/8	15.8	60	56.7	4700	9400	303	312
3/4	19	76	69	6800	13600	432	445
7/8	22.2	90	80	9250	18500	586	603
1	25.4	105	95	12150	24300	770	792

Long Link Chain

Link Specification				Proof Load	Breaking Load	N.W.per 200FT(kg)
D		L	W	Proof Load	Breaking Load	N.W.per 200FT(kg)
in.	mm	mm	mm	kg	kg	self color	H.D.G
1/8	3.2	23	12	200	400	10.8	10.7
5/32	4	27	15	300	600	16.6	17.5
3/16	4.7	31	17	400	800	22.4	23.3
3/16	4.7	31	17	400	800	22.4	23.3
7/32	5.5	32	19	550	1100	32	33
1/4	6.35	33	21	750	1500	43.5	44.8
5/16	7.94	48	31	1200	2400	68	70
3/8	9.5	60	37	1700	3400	96	99
7/16	11.11	71	41	2300	4600	126	129
1/2	12.7	85	48.5	3000	6000	167	172
5/8	15.8	114	61.5	4700	9400	256	264
3/4	19	125	75	6800	13600	381	392
7/8	22.2	140	88	9250	18500	527	543
1	25.4	155	100	12150	24300	696	716

Note:All Above ltems Material Available For Stainless Steel AISI304/316
