G80 U.S.Type A-342 Forged Master Link

Product attributes :

The G80 U.S.Type A-342 Forged Master Link is a critical component for assembling lifting slings and rigging chains in marine, construction, and transportation sectors. Made from premium-grade alloy steel, it features exceptional load-bearing capacity and wear resistance.

Its precisely forged structure minimizes the risk of deformation under extreme loads, making it highly reliable for demanding lifting operations. Compatible with a wide variety of chains and hooks, this master link offers outstanding performance and safety across different rigging environments.

Product Details

Chain Size
in.
Weight
kg
W.L.L.
ton
B.L
ton

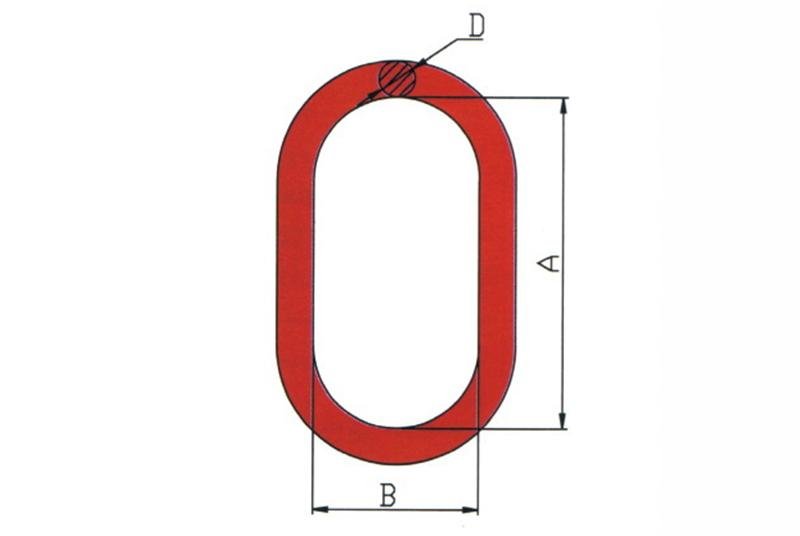

Dimensions(mm)
ABD
1/20.36 3.2 16 127 63.5 13
5/80.7 4.1 20.5 152 76 16
3/40.93 5.6 28 140 70 19
7/81.5 6.8 34 160 90 22
2.1 11 55 178 89 25
1-1/44.24 16.4 82 222 111 32
1-1/27.17 24.6 123 267 135 38
1-3/411.55 38.5 192.5 305 152 45
17.2 46.5 232.5 355 178 51
2-1/424.5 64.9 324.5 406 203 57
2-1/230.9 72.6 363 406 203 63.5
2-3/439.5 98.4 492 406 241 70
50.34 103.4 517 457 228 76
3-1/465.68 119 595 508 254 82.5
3-1/290.24 126.5 632.5 310 305 89
3-3/489.27 152.4 762 508 254 95
103.43 169.2 846 508 254 101.6
