G80 Weld On Hook
G80 Weld On Hook
Size: 1Ton-10Ton
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

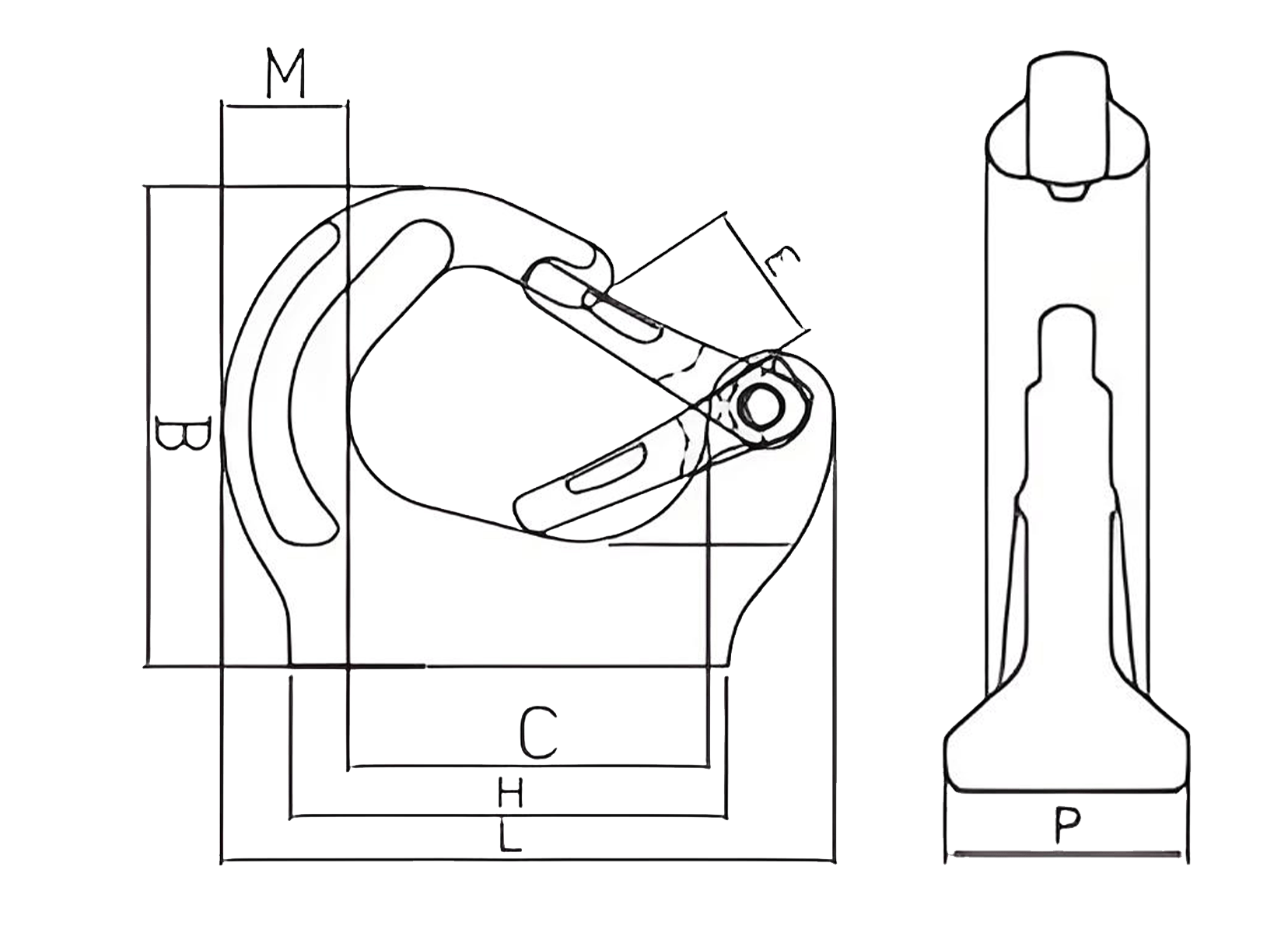

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | B±1.5 | C±1.2 | E±0.5 | H±2 | M±1 | P±1 | L±2 |
| 1.0T | 0.49 | 1 | 5 | 77.6 | 61.3 | 25 | 93 | 23 | 25 | 101.6 |
| 2.0T | 0.87 | 2 | 10 | 92 | 67 | 28 | 81 | 23.4 | 34 | 114 |
| 3.0T | 1.13 | 3 | 15 | 106 | 73.5 | 30 | 116 | 30.5 | 36 | 129 |
| 5.0T | 2.50 | 5 | 25 | 133 | 94 | 39 | 159 | 44 | 43.5 | 171 |
| 8.0T | 3.26 | 8 | 40 | 137 | 94 | 36 | 159 | 44 | 51 | 177 |
| 10.0T | 5.20 | 10 | 50 | 170 | 135 | 48 | 194 | 54.7 | 53 | 223 |
Ultimate Load is 5 times the Working Load Limit
