#1 MARINE HARDWARE
JIS Frame Type Turnbuckle With Eye &Eye,Hook &Eye,Hook &Hook
JIS Frame Type Turnbuckle with Eye & Eye, Hook & Eye, and Hook & Hook is designed for adjusting tension in load-bearing systems. Compliant with Japanese Industrial Standards, this turnbuckle ensures strength, corrosion resistance, and safety.
Each configuration supports specific rigging needs in marine, industrial, or construction environments.
Product Details

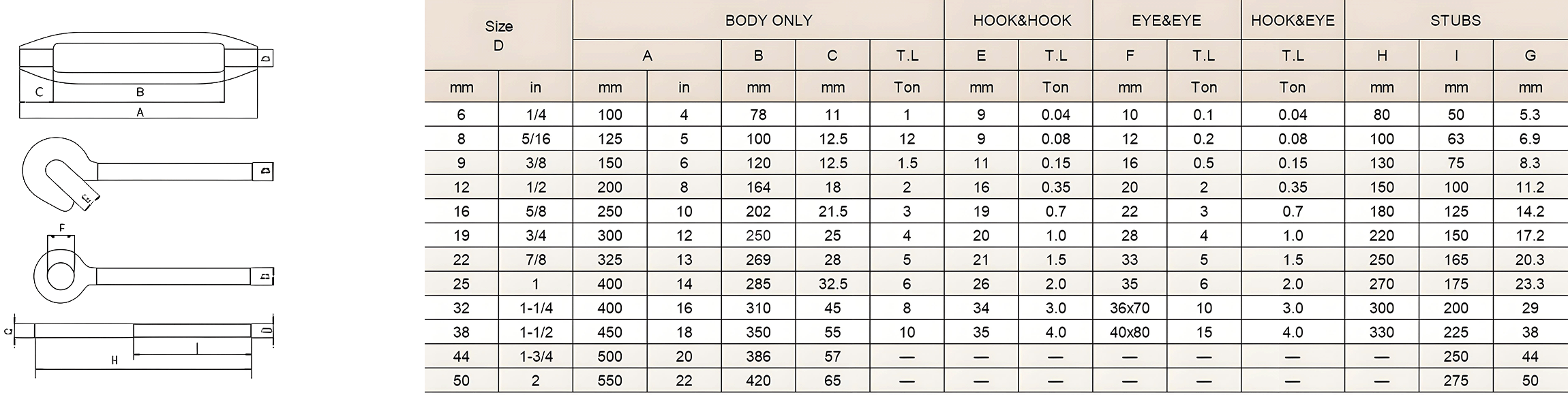

| Size mm | Body Length mm | Weight(kg/pc) | T.L. ton | |||||||||||
| Eye&Eye | Hook&Eye | Hook &Hook | ||||||||||||
| 6 | 100 | 0.116 | 0.114 | 0.112 | 1 | |||||||||
| 8 | 125 | 0.22 | 0.218 | 0.215 | 1.2 | |||||||||
| 9 | 150 | 0.3 | 0.293 | 0.29 | 1.5 | |||||||||
| 12 | 200 | 0.58 | 0.585 | 0.57 | 2 | |||||||||
| 16 | 250 | 1.07 | 1.05 | 1.03 | 3 | |||||||||
| 19 | 300 | 1.77 | 1.78 | 1.77 | 4 | |||||||||
| 22 | 325 | 2.55 | 2.58 | 2.6 | 5 | |||||||||
| 25 | 350 | 3.79 | 3.77 | 3.72 | 6 | |||||||||
| 32 | 400 | 7.6 | 7.52 | 7.44 | 8 | |||||||||
