#1 MARINE HARDWARE
Korean Standard Link Chain
Built to meet Korean industrial specifications, the Korean Standard Link Chain is a dependable solution for heavy-load lifting and rigging. Its robust construction and consistent link dimensions ensure uniform stress distribution under load.
This chain is commonly used in manufacturing, shipyards, and machinery industries, where secure and efficient load control is essential. The chain’s surface finish resists environmental wear, enhancing durability in rigorous working conditions.
Product Details

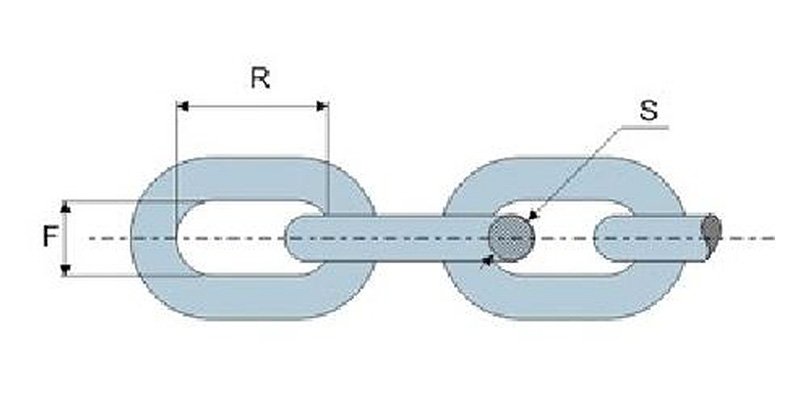

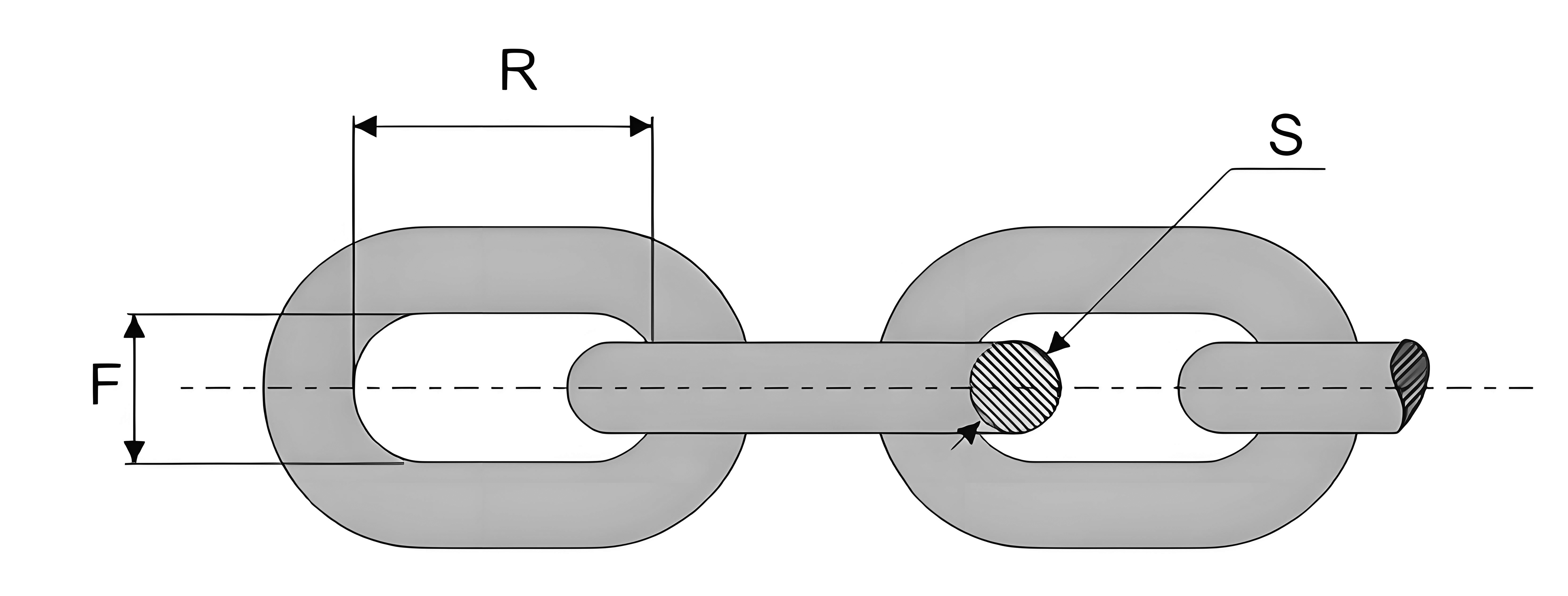

| Nominal Size(S) mm | Material Size mm | Inside Length(R) mm | Inside Width(F) mm | Length Per pc m | Weigth Per pc kg | |
| Short Link | 3 | 3.0 | 20.0 | 5.3 | 30 | 4.50 |
| 4 | 4.0 | 22.0 | 7.5 | 30 | 9.00 | |
| 5 | 4.8 | 23.7 | 8.3 | 30 | 12.74 | |
| 6 | 5.8 | 27.3 | 10.0 | 30 | 18.86 | |
| 7 | 7.0 | 31.0 | 12.0 | 15 | 14.14 | |
| 8 | 7.8 | 35.0 | 13.7 | 15 | 17.23 | |
| 9 | 8.8 | 39.0 | 15.2 | 15 | 22.13 | |
| 12 | 12.0 | 38.0 | 18.0 | 15 | 45.00 | |
| 15 | 15.0 | 45.0 | 23.0 | 15 | 75.45 | |
| 16 | 16.0 | 53.0 | 23.0 | 15 | 76.41 | |
| 19 | 19.0 | 58.0 | 25.0 | 10 | 78.28 | |
| Long Link | 4 | 3.9 | 34.3 | 6.2 | 30 | 7.26 |
| 4.5 | 4.5 | 44.4 | 9.2 | 30 | 9.46 | |
| 5 | 4.8 | 45.0 | 11.0 | 30 | 11.31 | |
| 6 | 6.0 | 47.0 | 12.0 | 30 | 18.00 | |
| 7 | 6.8 | 50.0 | 11.4 | 15 | 11.19 | |
| 12 | 12.0 | 50.0 | 18.0 | 15 | 42.00 | |
| 15 | 14.8 | 64.0 | 23.0 | 15 | 61.44 | |
| 19 | 19.0 | 75.0 | 25.0 | 10 | 71.00 | |
