BS464 Wire Rope Thimble – British Standard Reinforcement for Marine and Industrial Rigging

Manufactured to BS464 British Standard for Accuracy and Safety

The BS464 Wire Rope Thimble is precision-engineered to meet the dimensional and strength requirements of the British Standard.

Each unit is produced in accordance with BS464:1958 specification, ensuring uniform groove geometry, exact rope seat curvature, and a tolerance range of ±0.3mm for critical dimensions.

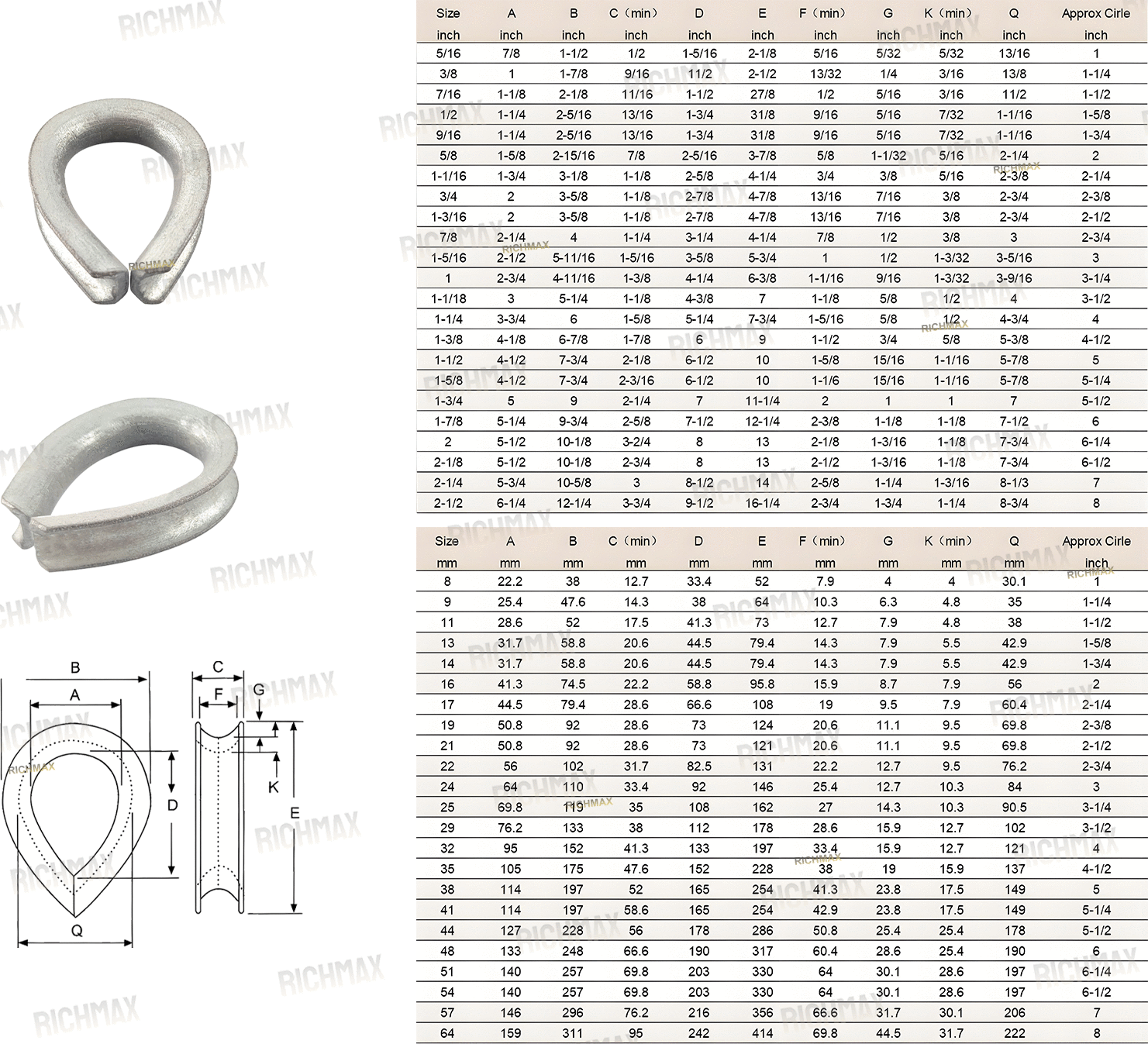

Contact us for detailed dimensional charts or compliance documents for your project specifications.

Enhanced Durability with Hot-Dip Galvanized Finish

A heavy-duty zinc coating provides excellent corrosion resistance and long-lasting protection in harsh environments.

The thimble surface is protected with 85μm zinc coating, tested to exceed 480 hours of neutral salt spray exposure per ASTM B117.

Request a corrosion resistance test report to confirm marine-grade quality.

Wide Range of Sizes for Different Rope Diameters

The BS464 thimble range accommodates various wire rope sizes and load capacities.

Available sizes range from 6mm up to 64mm, with matching tolerances for common rope constructions such as 6x19, 6x36, and compacted strand ropes.

Get a quotation for customized sizes or OEM production with your logo or packaging specifications.

Reliable Performance in Marine and Industrial Applications

Engineered for demanding rigging and hoisting systems, the BS464 Wire Rope Thimble prevents deformation and abrasion at rope terminations.

Commonly applied in mooring lines, lifting slings, ship deck rigging, and port handling systems, ensuring long-term wire rope reliability.

Contact our technical team for professional advice on selecting the right thimble for your rigging application.

Quality Assurance and Factory Testing Certification

Each BS464 thimble undergoes a full inspection process to guarantee safety and performance.

Every batch is tensile-tested, dimensionally verified, and certified under ISO 9001:2015 Register quality control system.

Request inspection certificates and test data to ensure compliance with your quality standards.
