JIS F2014-1987 Single Roller Fairlead
Roller Dia.: 100mm-450mm
Standard: JIS F 2014-87
Material: Cast steel, Cast iron
Surface finish: Marine painted
Suitable Rope: Steel wire rope, Synthetic rope
Application: Mooring line guiding, Cable handling, Chain guiding

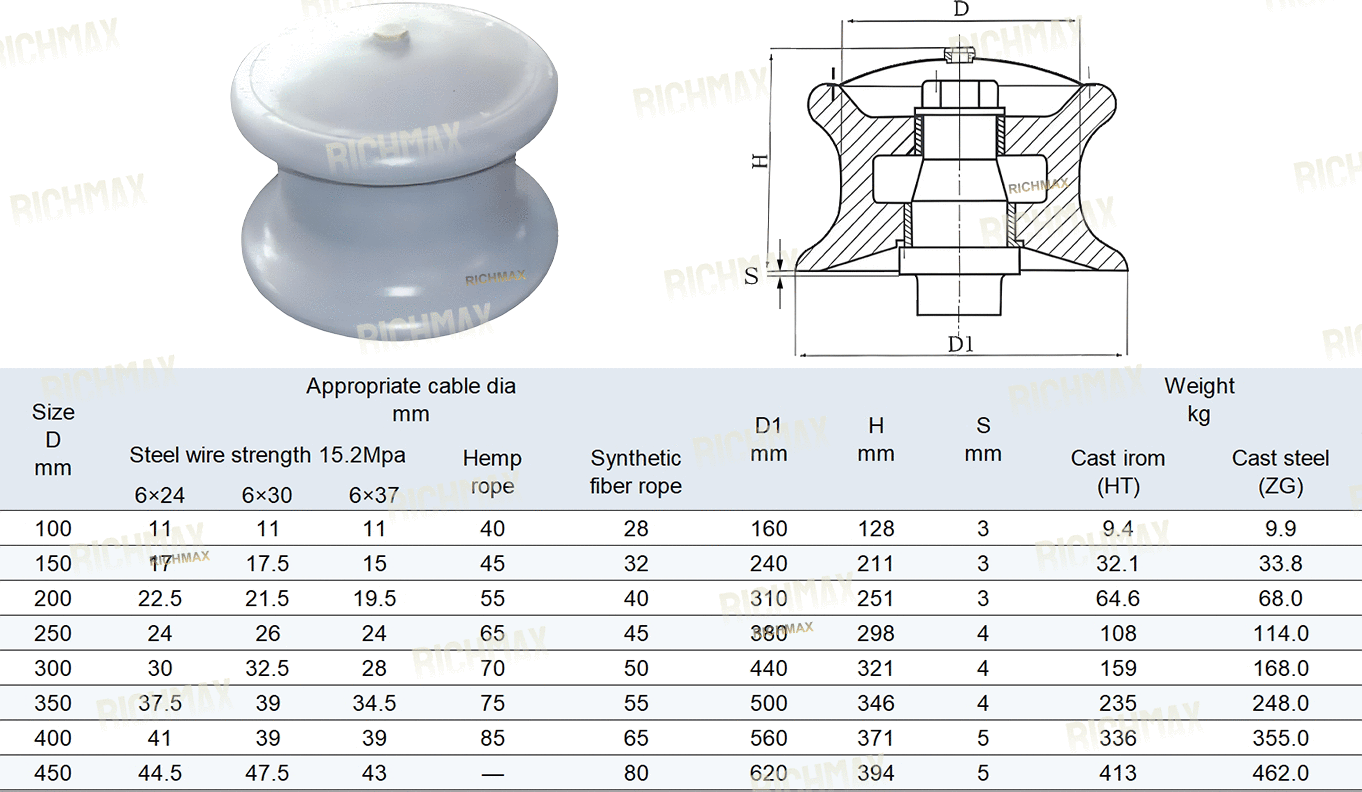

| Size D (mm) | 6 x 24 Cable Dia.(mm) | 6 x 30 Cable Dia.(mm) | 6 x 37 Cable Dia.(mm) | Hemp rope (mm) | Synthetic fiber rope (mm) | D1 (mm) | H (mm) | S (mm) | Cast iron (kg/pc) | Cast steel (kg/pc) |
| 100 | 11 | 11 | 11 | 40 | 28 | 160 | 128 | 3 | 9.4 | 9.9 |
| 150 | 17 | 17.5 | 15 | 45 | 32 | 240 | 211 | 3 | 32.1 | 33.8 |
| 200 | 22.5 | 21.5 | 19.5 | 55 | 40 | 310 | 251 | 3 | 64.6 | 68.0 |
| 250 | 24 | 26 | 24 | 65 | 45 | 380 | 298 | 4 | 108 | 114.0 |
| 300 | 30 | 32.5 | 28 | 70 | 50 | 440 | 321 | 4 | 159 | 168.0 |
| 350 | 37.5 | 39 | 34.5 | 75 | 55 | 500 | 346 | 4 | 235 | 248.0 |
| 400 | 41 | 39 | 39 | 85 | 65 | 560 | 371 | 5 | 336 | 355.0 |
| 450 | 44.5 | 47.5 | 43 | - | 80 | 620 | 394 | 5 | 413 | 462.0 |
| Remark: 6 x 24/6 x 30/6 x 37 Steel Wire Strength 15.2Mpa | ||||||||||
