G80 Clevis Self-Lock Hook Improved for Secure Chain Sling Connection & Industrial Lifting

G80 Selflock Hook Improved
G80 Selflock Hook Improved

#1 MARINE HARDWARE

G80 Clevis Self-Lock Hook IMPROVED

Product attributes :

G80 Clevis Self-Lock Hook IMPROVED

Size: 6mm-32mm

Surface finish: Powder coating

Surface Colour: Red, Yellow

Material: Super Alloy steel

Manufacturing process: Forged - Quenched and Tempered

Usage: Suitable for EN818-2 G80 chain

Quality control:

◆ Individually proof test at 2.5 times Working Load Limit

 Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

Note: Positive lock latch is Self-Locking when hook is loaded

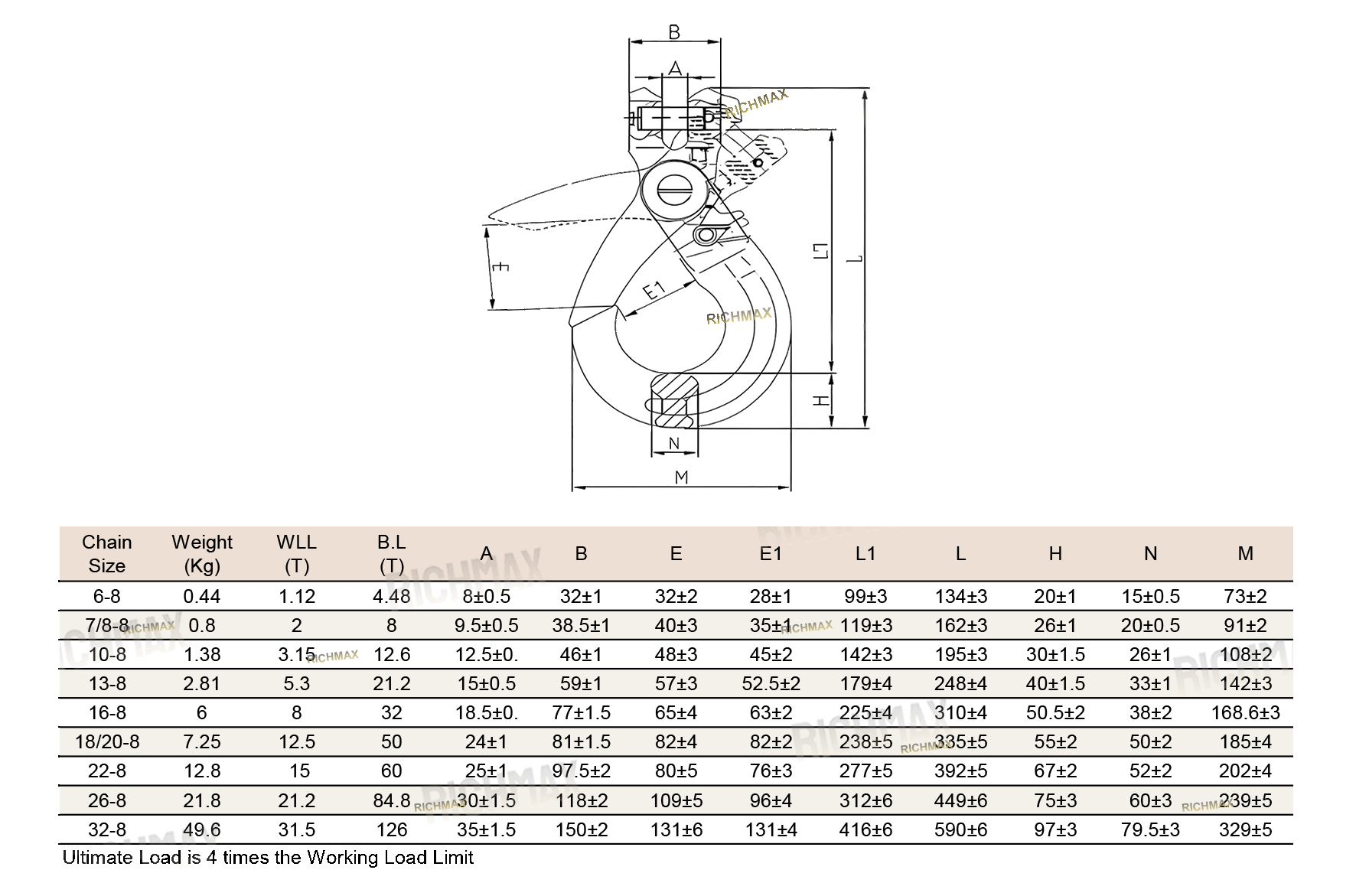

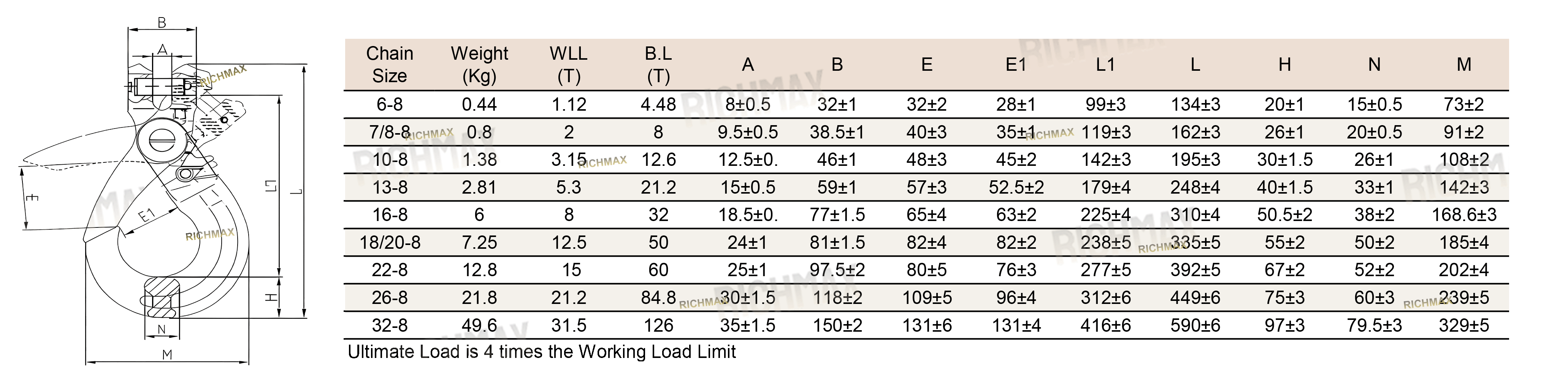

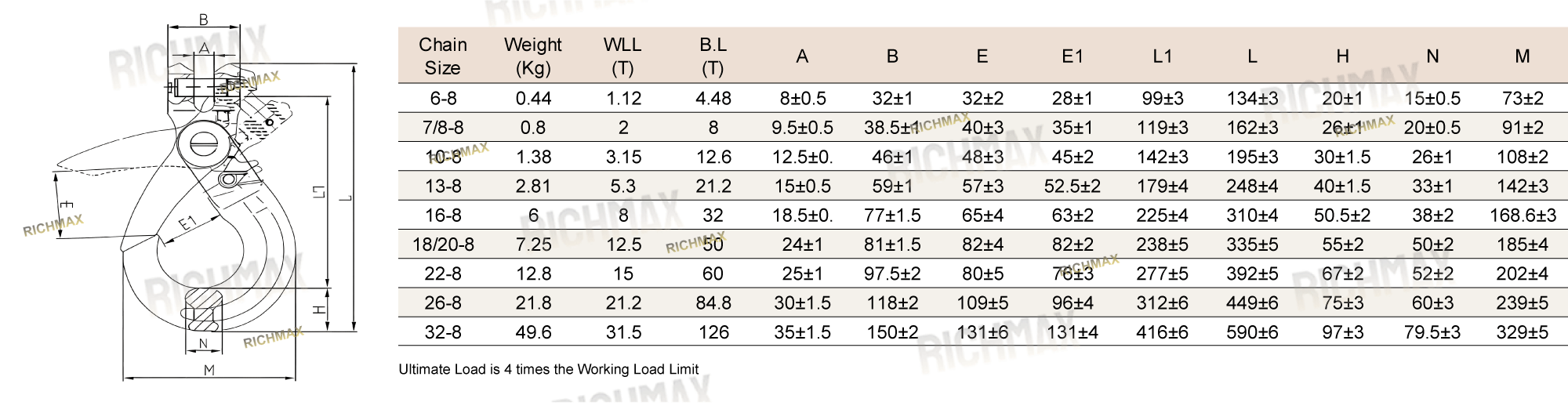

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)
ABEE1L1LHNM
6-80.44 1.12 4.48 8±0.532±132±228±199±3134±320±115±0.573±2
7/8-80.8 9.5±0.538.5±140±335±1119±3162±326±120±0.591±2
10-81.38 3.15 12.6 12.5±0.46±148±345±2142±3195±330±1.526±1108±2
13-82.81 5.3 21.2 15±0.559±157±352.5±2179±4248±440±1.533±1142±3
16-832 18.5±0.77±1.565±463±2225±4310±450.5±238±2168.6±3
18/20-87.25 12.5 50 24±181±1.582±482±2238±5335±555±250±2185±4
22-812.8 15 60 25±197.5±280±576±3277±5392±567±252±2202±4
26-821.8 21.2 84.8 30±1.5118±2109±596±4312±6449±675±360±3239±5
32-849.6 31.5 126 35±1.5150±2131±6131±4416±6590±697±379.5±3329±5

Ultimate Load is 4 times the Working Load Limit


  • Why G80 Clevis Self-Lock Hook Improved Is the Preferred Choice for Chain Sling Safety

    The G80 clevis self lock hook improved is specifically designed for direct connection with chain sling systems, offering a safer and more stable lifting solution compared to standard hooks.

    Its clevis design allows easy installation without additional connectors, while the automatic locking mechanism ensures the hook remains securely closed during lifting operations.

    This combination significantly reduces the risk of accidental load release in demanding environments.

    If you are looking for reliable G80 self locking hooks for chain sling applications, contact us now for a fast quotation and expert support.

  • Advanced Safety Design: Automatic Locking System for Heavy Duty Lifting

    This G80 clevis self locking hook features an advanced automatic safety latch that locks under load, ensuring maximum lifting security.

    Manufactured from high-strength alloy steel and heat-treated for durability, it meets Grade 80 lifting requirements.

    Compared to traditional lifting hooks, this improved version enhances operational safety and minimizes human error during rigging operations, making it ideal for safety-critical lifting tasks.

    Send us your required specifications today to get a competitive quote for high-performance lifting hooks.

  • Designed for Chain Sling Integration: Easy Assembly & High Efficiency

    The clevis type design allows direct connection to Grade 80 chains without the need for additional links, improving assembly efficiency and reducing setup time.

    This makes the G80 clevis self lock hook highly suitable for chain sling systems used in industrial lifting, material handling, and rigging applications.

    Its compatibility with standard chain sizes ensures flexible use across multiple lifting configurations.

    Looking for bulk supply of clevis self locking hooks for your sling production? Contact us now for stable supply and fast delivery.

  • Wide Range of Sizes & OEM Customization for Global Buyers

    We provide a full range of G80 clevis self locking hooks in various sizes and load capacities to meet diverse lifting requirements.

    Customization options are available, including logo marking, packaging solutions, and technical modifications based on your project needs.

    Our OEM and ODM services are tailored for distributors, wholesalers, and lifting equipment suppliers worldwide.

    Tell us your project requirements and let us deliver a customized lifting hardware solution.

  • Strict Quality Control & Compliance with International Lifting Standards

    All G80 self locking hooks are produced under strict quality management systems to ensure consistent performance and safety.

    Each product undergoes load testing, material inspection, and dimensional verification before shipment.

    Compliance with international standards such as CE and ISO ensures the hooks meet global market requirements and enhances buyer confidence.

    Work with a trusted lifting hardware supplier—send your inquiry today to ensure certified quality and reliability.

  • Factory Direct Supply, Competitive Pricing & Reliable Export Service

    As a professional manufacturer of lifting and rigging hardware, we offer factory direct pricing, stable production capacity, and efficient global logistics support.

    Whether you require small MOQ trial orders or large-scale procurement, we ensure consistent quality and on-time delivery.

    Our export experience covers multiple regions, making us a reliable long-term partner.

    Contact us now to receive the latest price list and build a long-term supply partnership.
