#1 MARINE HARDWARE
G80 European Type Master Link Assembly
G80 European Type Master Link Assembly
Size: 6mm-32mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection

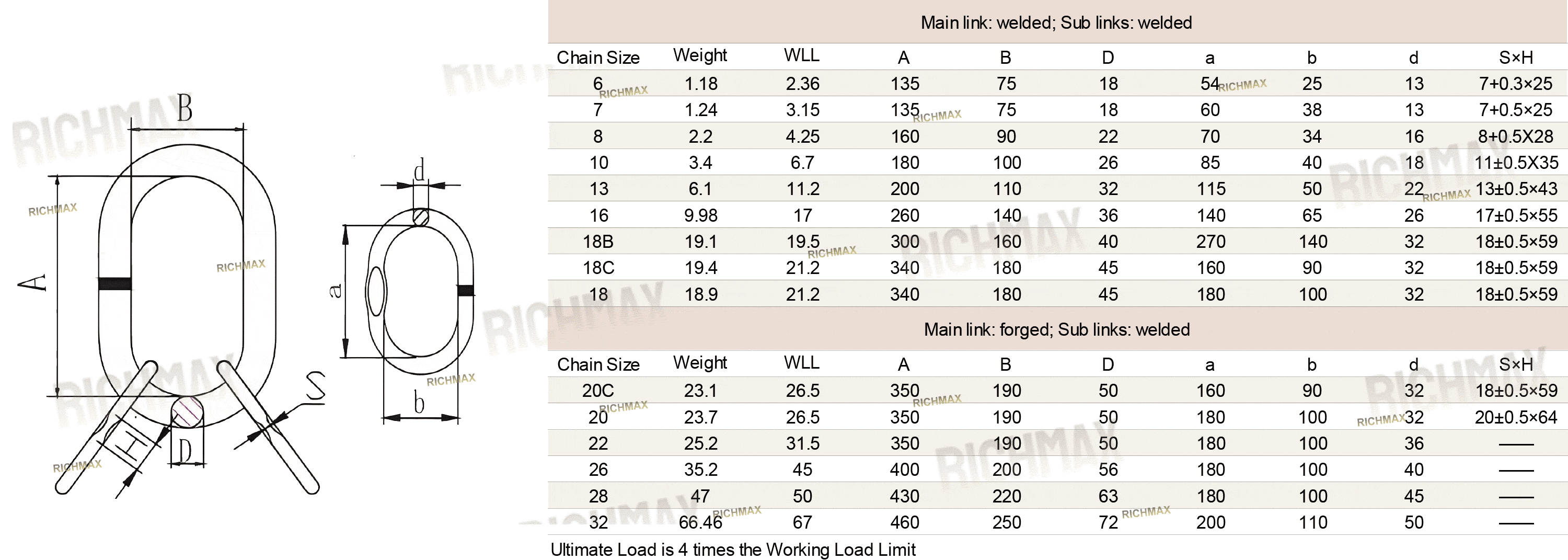

Product Details
| Main link: welded; Sub links: welded | |||||||||
| Chain Size | Weight (Kg) | WLL (T) | A | B | D | a | b | d | S×H |
| 6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 7+0.3×25 |
| 7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 7+0.5×25 |
| 8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 8+0.5X28 |
| 10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 11±0.5X35 |
| 13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 13±0.5×43 |
| 16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 17±0.5×55 |
| 18B | 19.1 | 19.5 | 300 | 160 | 40 | 270 | 140 | 32 | 18±0.5×59 |
| 18C | 19.4 | 21.2 | 340 | 180 | 45 | 160 | 90 | 32 | 18±0.5×59 |
| 18 | 18.9 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 | 18±0.5×59 |
| Main link: forged; Sub links: welded | |||||||||
| Chain Size | Weight (Kg) | WLL (T) | A | B | D | a | b | d | S×H |
| 20C | 23.1 | 26.5 | 350 | 190 | 50 | 160 | 90 | 32 | 18±0.5×59 |
| 20 | 23.7 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | 20±0.5×64 |
| 22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | —— |
| 26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | —— |
| 28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | —— |
| 32 | 66.46 | 67 | 460 | 250 | 72 | 200 | 110 | 50 | —— |
Ultimate Load is 4 times the Working Load Limit
EN Certified Multi-Leg Sling Core – G80 European Type Master Link Assembly Advantage
Designed in compliance with European EN standards, this G80 European type master link assembly serves as the central connection point for multi-leg chain sling systems.
It ensures safe load distribution and reliable rigging performance, making it ideal for chain sling top link applications, EN master link systems, and lifting master link assembly setups.
The certified design enhances trust and compliance for European market requirements.
Contact us now to source EN-compliant master link assemblies for your lifting projects.
High Strength G80 Alloy Steel for Maximum Load Performance
Manufactured from premium G80 alloy steel, this master link assembly delivers outstanding strength and durability for heavy lifting operations.
It is widely used in lifting master link assembly applications, chain sling systems, and industrial rigging hardware.
Advanced heat treatment ensures excellent fatigue resistance and long service life under repeated load conditions.
Send your inquiry today to secure reliable bulk supply with competitive pricing.
Optimized Load Distribution for Safe and Stable Lifting
This G80 master link assembly is engineered to distribute loads evenly across multiple sling legs, reducing stress concentration and enhancing lifting stability.
It is ideal for multi leg sling master link applications, lifting chain systems, and heavy duty lifting link setups.
The balanced structure improves operational safety in demanding environments.
Contact us now to improve safety and efficiency in your lifting operations.
Compatible with EN Chain Sling Components and Rigging Systems
The European type master link assembly is designed for seamless compatibility with EN-standard chains, hooks, and connecting links.
It supports flexible rigging configurations and is widely used in chain sling top link systems, lifting master link assembly applications, and industrial lifting setups.
Request a quotation now to match your specific project requirements.
Surface Treatment Options for Corrosion Resistance and Durability
To meet various environmental demands, this master link assembly can be supplied with surface treatments such as powder coating, painted finish, or galvanized coating.
These options improve corrosion resistance and extend service life in marine hardware, offshore lifting, and outdoor rigging conditions.
Ideal for alloy steel master link and lifting hardware supplier requirements.
Contact us today for customized finishing solutions and bulk supply.
Reliable Manufacturer Supply with OEM & Bulk Order Support
As a professional lifting hardware manufacturer, we provide consistent product quality, strict inspection processes, and flexible OEM customization for global B2B buyers.
Our G80 master link assemblies are widely used by distributors, wholesalers, and project contractors requiring stable supply and competitive pricing.
Send your inquiry now to receive a tailored quotation and expert support.
