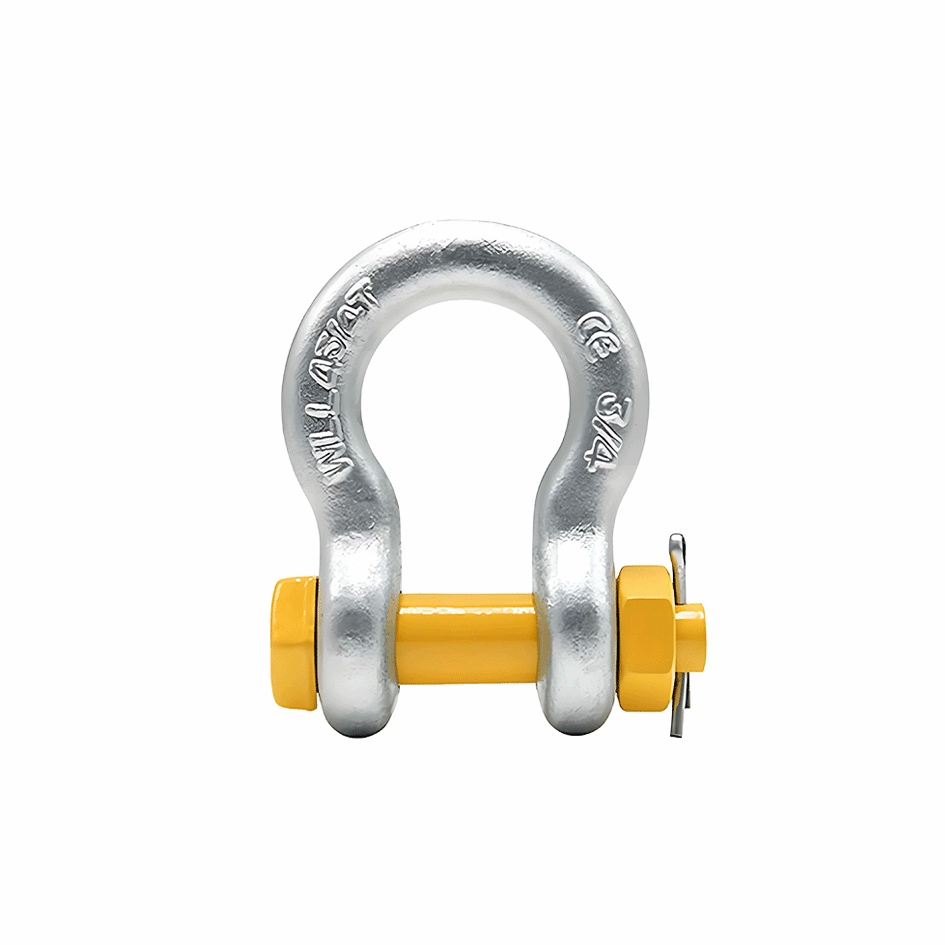

U.S Type G2130 Bolt Type Anchor Shackle – Heavy-Duty Forged Alloy Steel for Rigging & Marine Lifting

High-Strength Forged Alloy Steel Body

The U.S Type G2130 Bolt Type Anchor Shackle is precision-forged from premium alloy steel with quenched and tempered, ensuring outstanding strength and long-term durability for demanding lifting and rigging tasks. Contact us today to request material certificates or proof load test data for your project requirements.

Secure Bolt-Type Design for Heavy-Duty Applications

Equipped with a nut and cotter pin, this bolt-type shackle offers extra security against accidental release, making it ideal for permanent or critical lifting setups.

Ask our team for a comparison guide between screw pin and bolt-type shackles to choose the best option for your rigging system.

Corrosion-Resistant Galvanized Finish

Each G2130 anchor shackle is finished with a hot-dip galvanized/self-color/zinc-plated/powder-coated surface finish that enhances corrosion resistance in marine and outdoor environments.

Request a surface treatment sample or corrosion test report to confirm performance under your local climate conditions.

Compliant with International Standards

The U.S Type G2130 Shackle is manufactured according to Federal Specification RR-C-271 Type IVA, ensuring consistent quality, dimensional accuracy, and global standard compliance.

Download our full compliance documents or inspection reports to simplify your tender submission process.

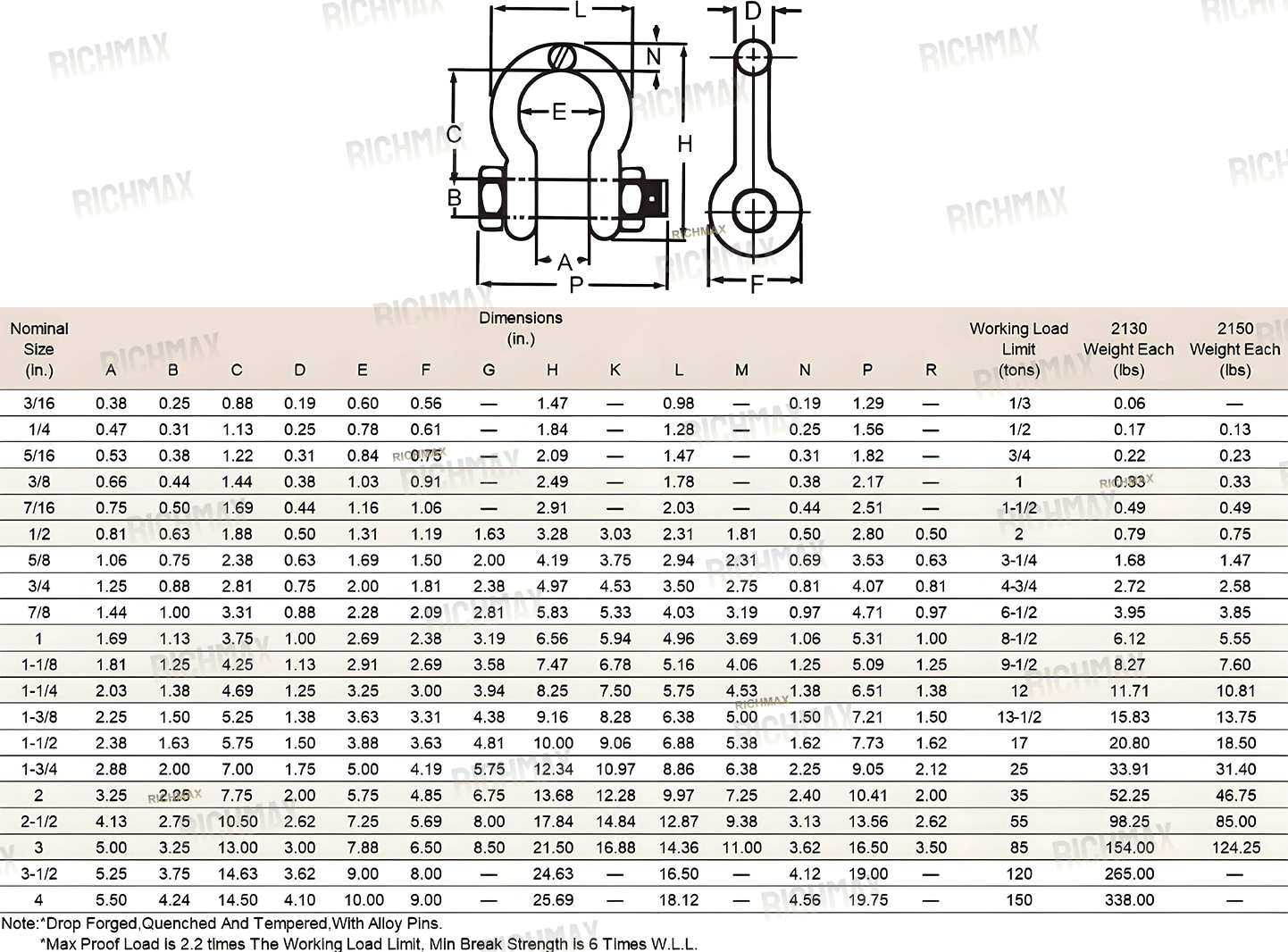

Wide Range of Sizes and Working Load Limits

Available in multiple sizes with working load limits ranging from 0.5Ton–150Ton, this shackle provides flexible options for lifting, towing, or marine anchoring. SAFETY FACTOR：6:1

Contact us to get a customized dimension sheet or request a quotation based on your required load capacity.

OEM Branding and Global Supply Service

As a professional rigging hardware manufacturer, we support OEM logo engraving, custom packaging, and global logistics service for distributors and project contractors. The Regular Lead Time is around 25days.

Send us your OEM specifications or bulk purchase inquiry now to get factory-direct pricing and fast lead time.
