U.S Type G2150 Bolt Type Chain Shackle – Heavy-Duty Alloy Steel for Lifting, Towing & Marine Rigging

High-Strength Alloy Steel Construction

The U.S Type G2150 Bolt Type Chain Shackle is forged from premium alloy steel with quenched & tempered, providing exceptional load-bearing strength and resistance to deformation under high stress.

Contact our sales team for technical data sheets or WLL test certificates customized for your lifting requirements.

Secure Bolt-Nut-Cotter Locking Mechanism

Featuring a bolt with nut and cotter pin, the G2150 shackle ensures superior safety by preventing accidental pin loosening during operation, ideal for long-term or heavy-duty applications.

Request a sample or comparison chart to find the best locking system for your project.

Hot-Dip Galvanized Surface for Corrosion Resistance

Each U.S Type G2150 shackle undergoes hot-dip galvanization/self-color/zinc-plated/powder-coated finish for excellent corrosion resistance in marine and outdoor environments.

Ask for a surface treatment sample or salt-spray test report to verify the coating performance.

Complies with Federal Specification RR-C-271 Type IVB

Manufactured to meet U.S Federal Standard RR-C-271 Type IVB, this shackle guarantees consistent performance, dimensional accuracy, and reliable mechanical properties.

Download full compliance certificates or inspection reports to support your procurement documentation.

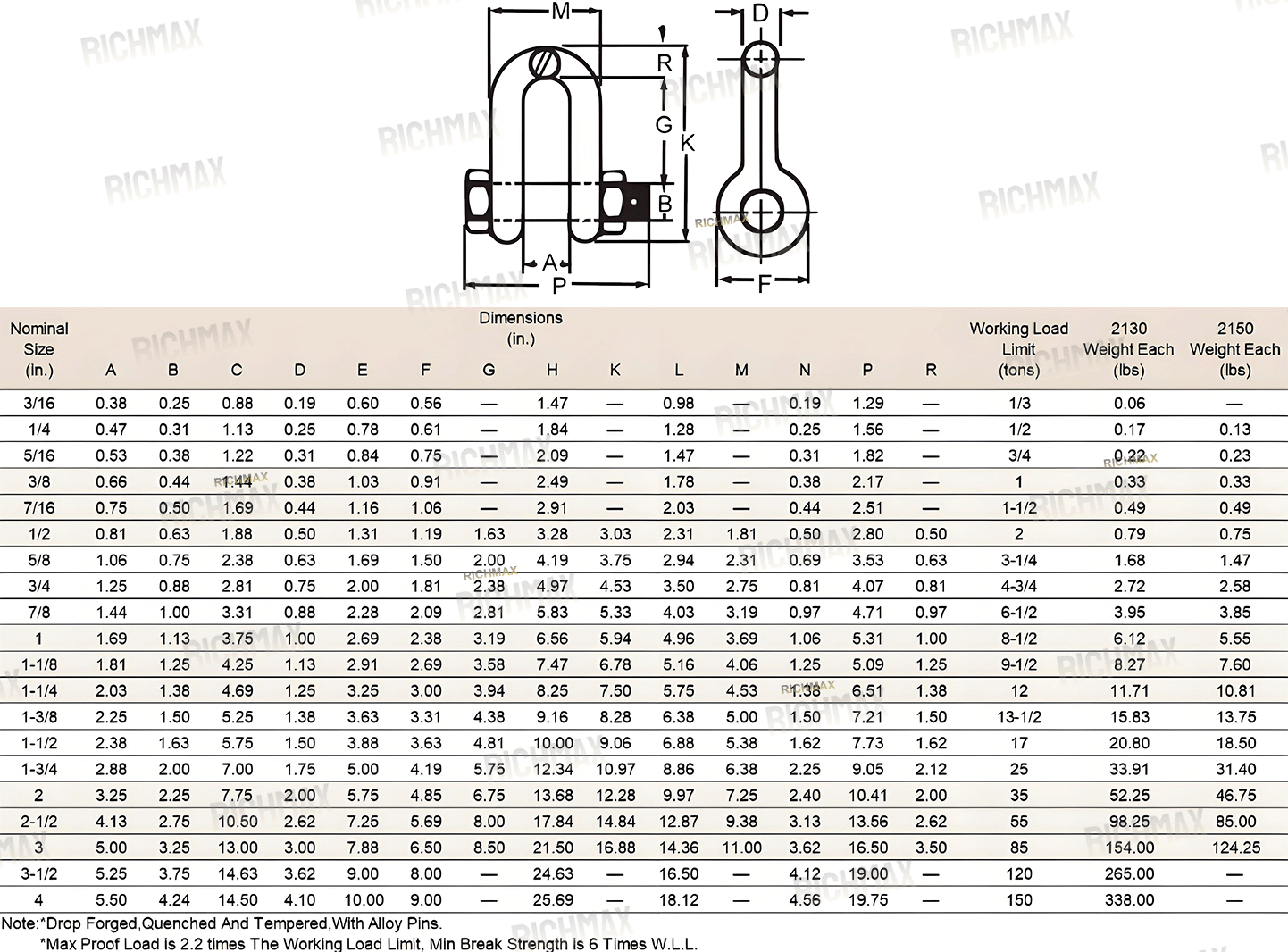

Available in Multiple Sizes and Load Capacities

The G2150 Chain Shackle is available in a wide range of sizes with Working Load Limits from 0.33Ton–150Ton, offering flexible solutions for lifting, towing, and marine anchoring. SAFETY FACTOR：6:1

Get a complete size chart and quotation tailored to your required capacity and usage environment.

OEM Customization and Global Supply Service

We provide OEM manufacturing with logo engraving, customized packaging, and flexible delivery for distributors and contractors worldwide. The Regular Lead Time is around 25days.

Send us your OEM specifications or purchase inquiry now to receive factory-direct pricing and fast delivery.
