JIS F7359 5K Marine Cast Iron Lift Check Angle Valve
Pressure: 5K
Size: DN15-DN150
Material: cast iron, ductile iron
Type: Check valve
Media: Water,Oil,Steam
#2 MARINE EQUIPMENT
JIS F7359 5K Marine Cast Iron Lift Check Angle Valve
JIS F7359 5K Marine Cast Iron Lift Check Angle Valve
Pressure: 5K
Size: DN15-DN150
Material: cast iron, ductile iron
Type: Check valve
Media: Water,Oil,Steam
Product Details

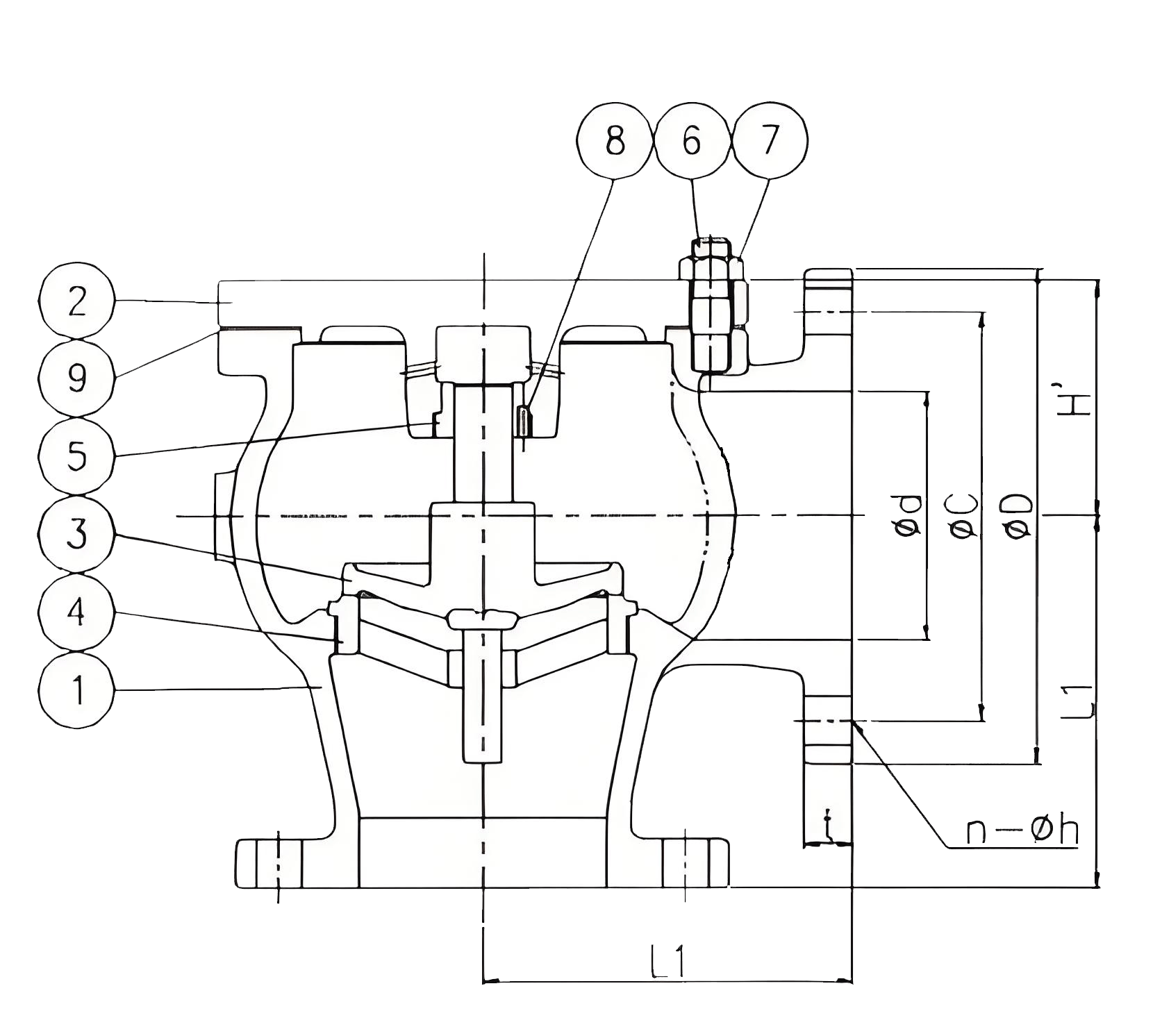

| unit:mm | ||||||||
| Rating | SIZE | φd | L/L1 | H/H' | FF Flange | |||
| φD | φC | t | n-φh | |||||
| 5K ANGLE | 50A | 50 | 100 | 77 | 130 | 105 | 16 | 4-15 |
| 65A | 65 | 115 | 81 | 155 | 130 | 18 | 4-15 | |
| 80A | 80 | 130 | 84 | 180 | 145 | 18 | 4-19 | |
| 100A | 100 | 150 | 96 | 200 | 165 | 20 | 8-19 | |
| 125A | 125 | 170 | 108 | 235 | 200 | 20 | 8-19 | |
| 150A | 150 | 190 | 125 | 265 | 230 | 22 | 8-19 | |
| 200A | 200 | 220 | 157 | 320 | 280 | 24 | 8-23 | |
| NO. | Parts | Material |
| 1 | Body | FC200 |
| 2 | Bonnet | FC200 |
| 3 | Disc | SCS13 |
| 4 | Valve seat | SCS13 |
| 5 | Bush | C3604 |
| 6 | Stud bolt | SS400 |
| 7 | Hex.nut | SS400 |
| 8 | Set screw | SS400 |
| 9 | Gasket | NON ASBESTOS |
