#2 MARINE EQUIPMENT
Marine Cast Iron Wafer Type Butterfly Valve Lever Type
Wafer Style Butterfly Valves, Wafer Butterfly Valves.
Valve Manufacturing standards: API, ANSI, BS, DIN, JIS.
Butterfly Valve Sealing: metal seated, resilient seated.
Valve Size Range: 1-1/4 - 64 Inch (DN32mm - DN1600mm).
Pressure: from PN0.1MPa to PN6.4MPa.
Applicable tempt.: from -40 degrees C to 425 degrees C.
Butterfly Valve Connection: wafer, flanged, lug.
Valve Body materials: cast iron, ductile iron, aluminum bronze, carbon steel, stainless steel

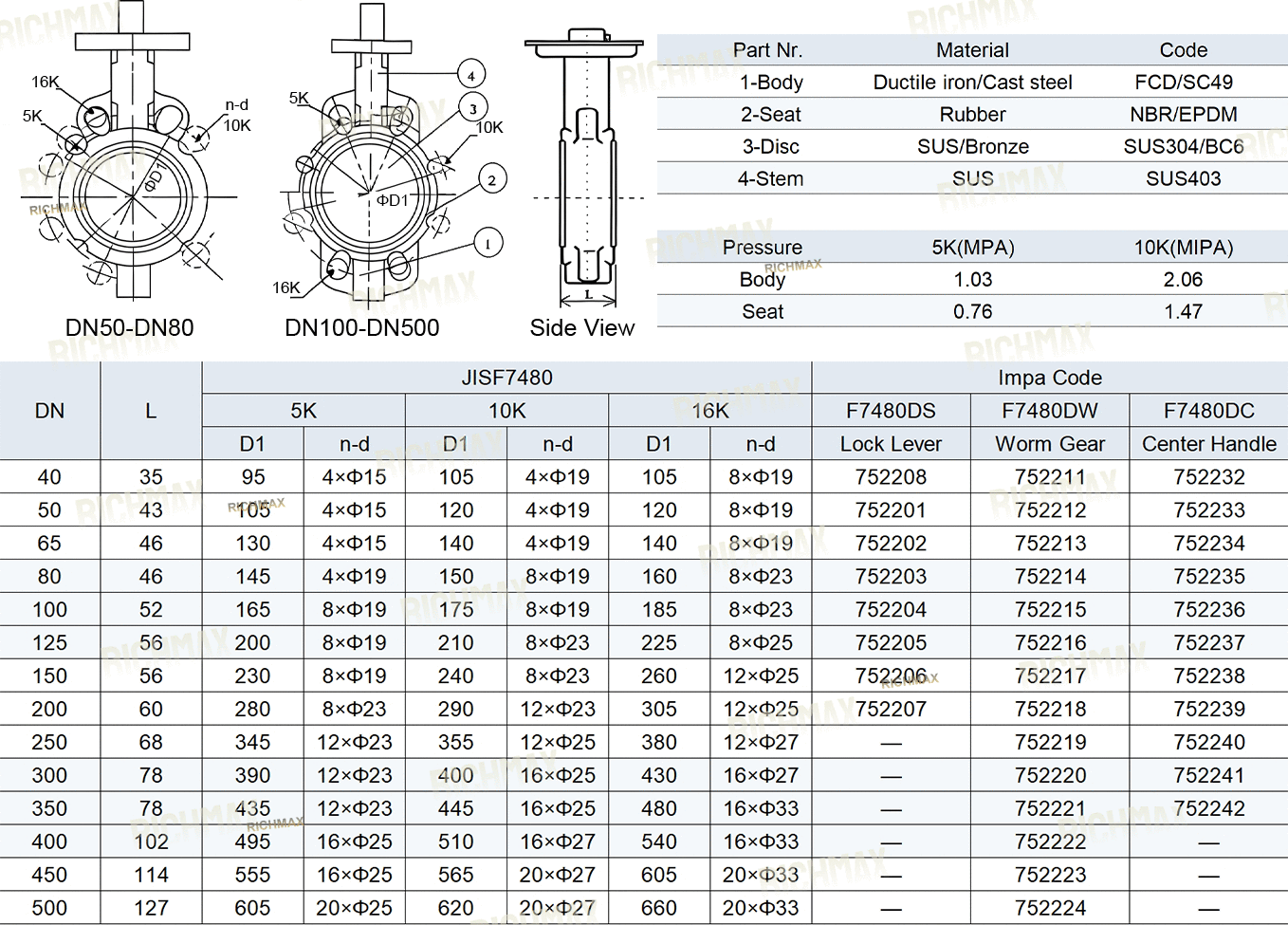

Product Details
| Code | Module | Face to Face | Pitch | Weight kg | |||||||||||||||||
| 752201 | DN50 | 43 | 105 | 4 | |||||||||||||||||
| 752202 | DN65 | 46 | 130 | 4.5 | |||||||||||||||||
| 752203 | DN80 | 46 | 145 | 5.5 | |||||||||||||||||
| 752204 | DN100 | 52 | 165 | 8 | |||||||||||||||||
| 752205 | DN125 | 56 | 200 | 13 | |||||||||||||||||
| 752206 | DN150 | 56 | 230 | 15.5 | |||||||||||||||||
| 752207 | DN200 | 60 | 280 | 23 | |||||||||||||||||
The marine butterfly valve is constructed from high-grade cast iron, providing durability and excellent performance in ship pipeline systems.
Its wafer type structure ensures easy installation between flanges, saving space and reducing weight in marine applications.
Equipped with a manual lever handle, the valve offers precise control for opening and closing in ship systems.
