| Nominal Size (in.) | Working Load Limit (tons) | Dimensions (in.) | Weight Each (Ibs) | ||||||

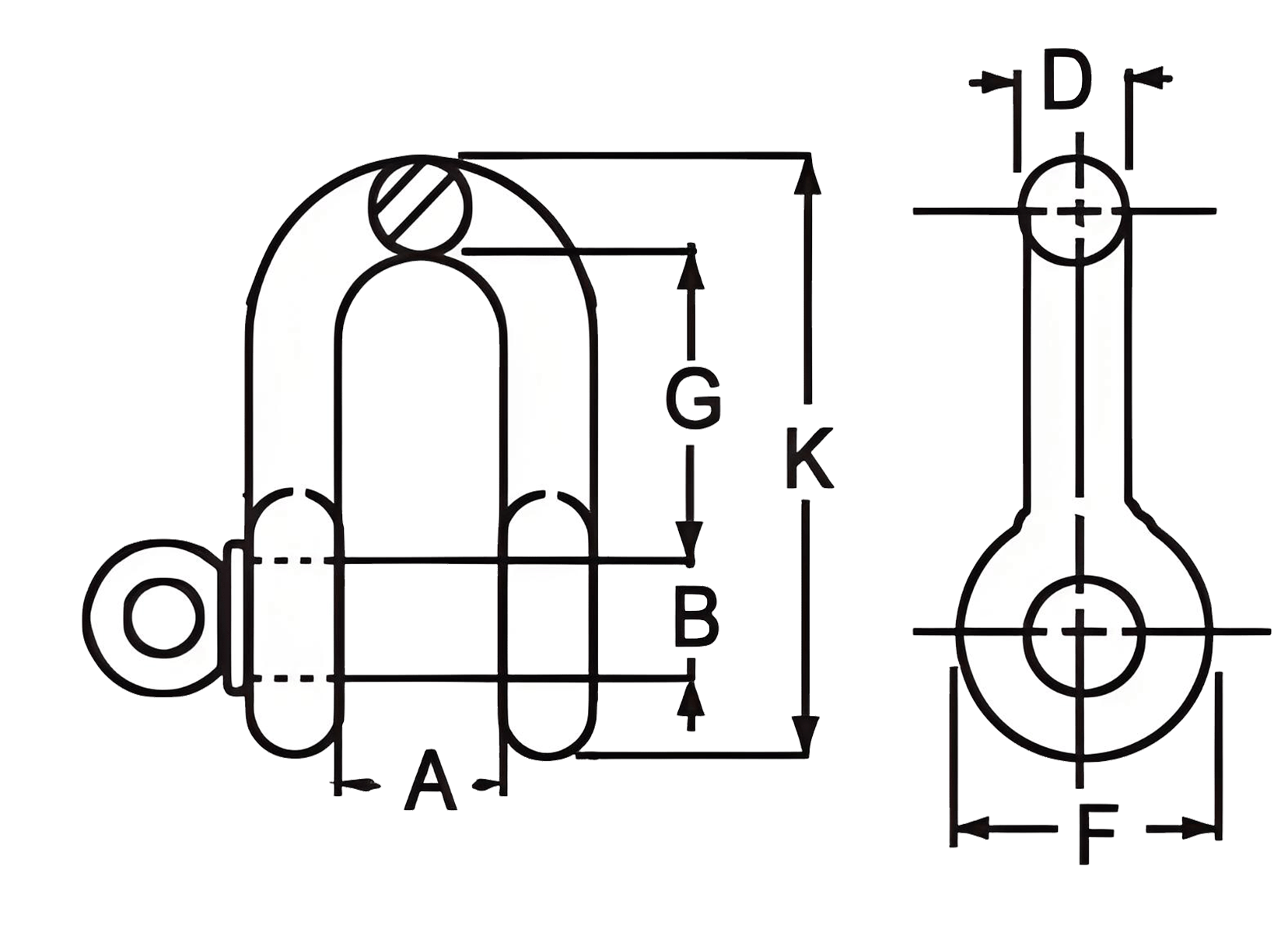

| A | B | D | F | G | K | G-210 | G-215 | ||
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.61 | 0.88 | 1.59 | 0.11 | 0.10 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.75 | 1.03 | 1.91 | 0.17 | 0.18 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.91 | 1.25 | 2.30 | 0.24 | 0.25 |
| 7/16 | 1-1/2 | 0.75 | 0.50 | 0.44 | 1.06 | 1.44 | 2.66 | 0.40 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 0.50 | 1.19 | 1.63 | 3.03 | 0.59 | 0.50 |
| 5/8 | 3-1/4 | 1.06 | 0.75 | 0.63 | 1.50 | 2.00 | 3.75 | 1.21 | 1.21 |
| 3/4 | 4-3/4 | 1.25 | 0.88 | 0.75 | 1.81 | 2.38 | 4.53 | 2.25 | 2.00 |
| 7/8 | 6-1/2 | 1.44 | 1.00 | 0.88 | 2.09 | 2.81 | 5.33 | 3.16 | 3.28 |
| 1 | 8-1/2 | 1.69 | 1.13 | 1.00 | 2.38 | 3.19 | 5.94 | 4.75 | 4.75 |
| 1-1/8 | 9-1/2 | 1.81 | 1.25 | 1.13 | 2.69 | 3.58 | 6.78 | 6.75 | 6.3 |
| 1-1/4 | 12 | 2.03 | 1.38 | 1.25 | 3.00 | 3.94 | 7.50 | 9.06 | 9.00 |
| 1-3/8 | 13-1/2 | 2.25 | 1.50 | 1.38 | 3.31 | 4.38 | 8.28 | 11.63 | 12.00 |
| 1-1/2 | 17 | 2.38 | 1.62 | 1.50 | 3.62 | 4.81 | 9.06 | 15.95 | 16.15 |
| 1-3/4 | 25 | 2.88 | 2.12 | 1.75 | 4.19 | 5.75 | 10.97 | 26.75 | 29.96 |
| 2 | 35 | 3.25 | 2.00 | 2.00 | 4.81 | 6.75 | 12.28 | 42.31 | 43.25 |
| 2-1/2 | 55 | 4.13 | 2.62 | 2.62 | 5.69 | 8.00 | 14.84 | 71.75 | -- |
