U.S. Type G209 Screw Pin Anchor Shackle
U.S Type G209 Screw Pin Anchor Shackle
Product Details
| Nominal Size (in.) | Working Load Limit (tons) | Dimensions (in.) | Weight Each (Ibs) | |||||||

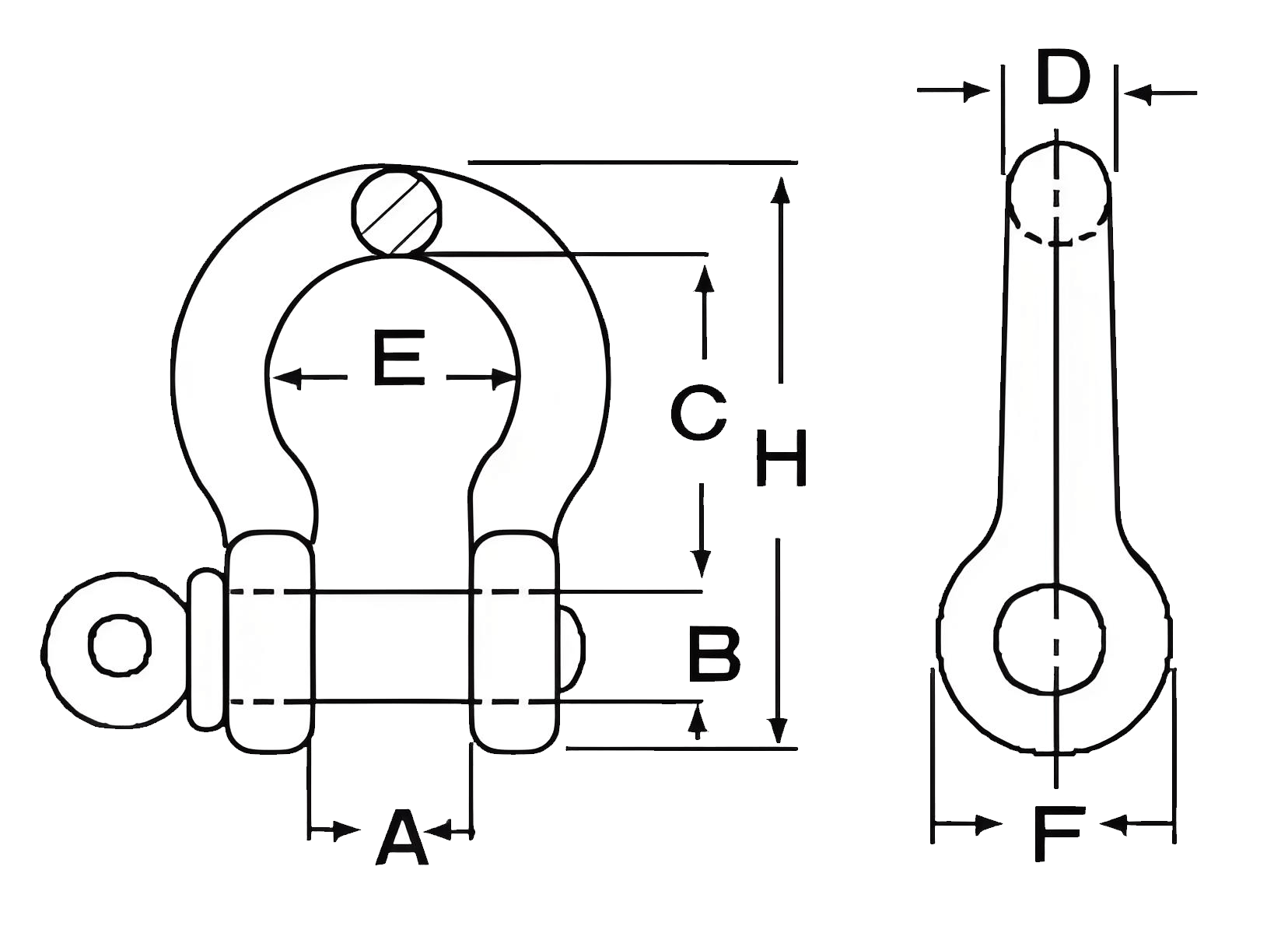

| A | B | C | D | E | F | H | G-209 | G-213 | ||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.60 | 0.56 | 1.47 | 0.05 | -- |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.84 | 0.12 | 0.13 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 2.09 | 0.19 | 0.17 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 0.31 | 0.25 |
| 7/16 | 1-1/2 | 0.75 | 0.50 | 1.69 | 0.44 | 1.16 | 1.06 | 2.91 | 0.38 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.50 | 1.31 | 1.19 | 3.28 | 0.63 | 0.70 |
| 5/8 | 3-1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.50 | 4.19 | 1.38 | 1.5 |
| 3/4 | 4-3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2.00 | 1.81 | 4.97 | 2.25 | 2.32 |
| 7/8 | 6-1/2 | 1.44 | 1.00 | 3.31 | 0.88 | 2.28 | 2.09 | 5.83 | 3.38 | 3.40 |
| 1 | 8-1/2 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 6.56 | 5.32 | 5.00 |
| 1-1/8 | 9-1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 7.47 | 6.81 | 6.97 |
| 1-1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 8.25 | 9.50 | 9.75 |
| 1-3/8 | 13-1/2 | 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 9.16 | 13.25 | 13.25 |
| 1-1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 10.00 | 17.20 | 17.25 |
| 1-3/4 | 25 | 2.88 | 2.00 | 7.00 | 1.84 | 5.00 | 4.19 | 12.34 | 30.38 | 29.46 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 13.68 | 45.00 | 45.75 |
| 2-1/2 | 55 | 4.13 | 2.75 | 10.50 | 2.71 | 7.25 | 5.69 | 17.84 | 85.75 | -- |
