Egg Type Snap Hook DIN5299 Form B
The Egg Type Snap Hook DIN5299 Form B offers a versatile solution for securing loads in lifting, rigging, and marine operations. Crafted from robust steel with a protective finish, it ensures superior performance against corrosion and mechanical stress.
The streamlined egg-shaped profile enhances strength and reduces friction, making it a practical choice for industries where durability and safety are critical.
Product Details

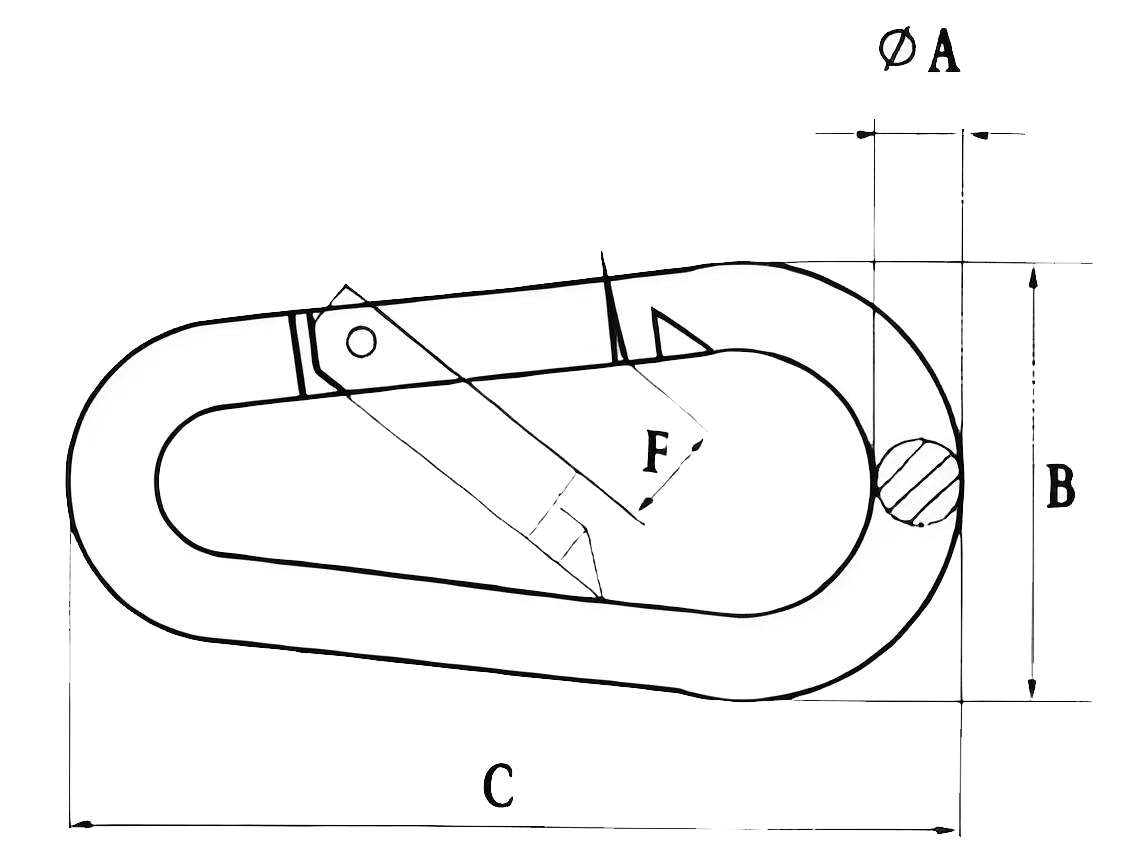

| Size mm | ΦA mm | B mm | C mm | F mm | W.L.L. lbs | |||||||||
| 5×50 | 5 | 25 | 50 | 7 | 100 | |||||||||
| 6×60 | 6 | 30 | 60 | 8 | 140 | |||||||||
| 7×70 | 7 | 35 | 70 | 8 | 200 | |||||||||
| 8×80 | 8 | 40 | 80 | 9 | 250 | |||||||||
| 9×90 | 9 | 45 | 90 | 10 | 280 | |||||||||
| 10×100 | 10 | 50 | 100 | 11 | 400 | |||||||||
| 11×120 | 11 | 57 | 120 | 16 | 500 | |||||||||
| 12×140 | 12 | 67 | 140 | 19 | 600 | |||||||||
