Snap Hook With Screw DIN5299 Form D
Crafted from premium-grade steel, the Snap Hook With Screw DIN5299 Form D ensures durability and strength for demanding environments. The integrated screw lock provides enhanced security, preventing accidental disengagement under stress.
Suitable for lifting, climbing, marine, and rigging systems, it offers peace of mind for users handling heavy or critical loads.
Product Details

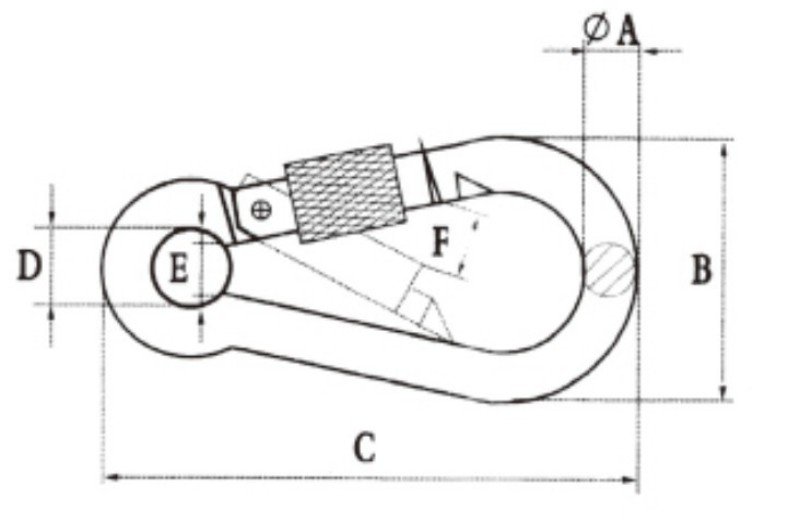

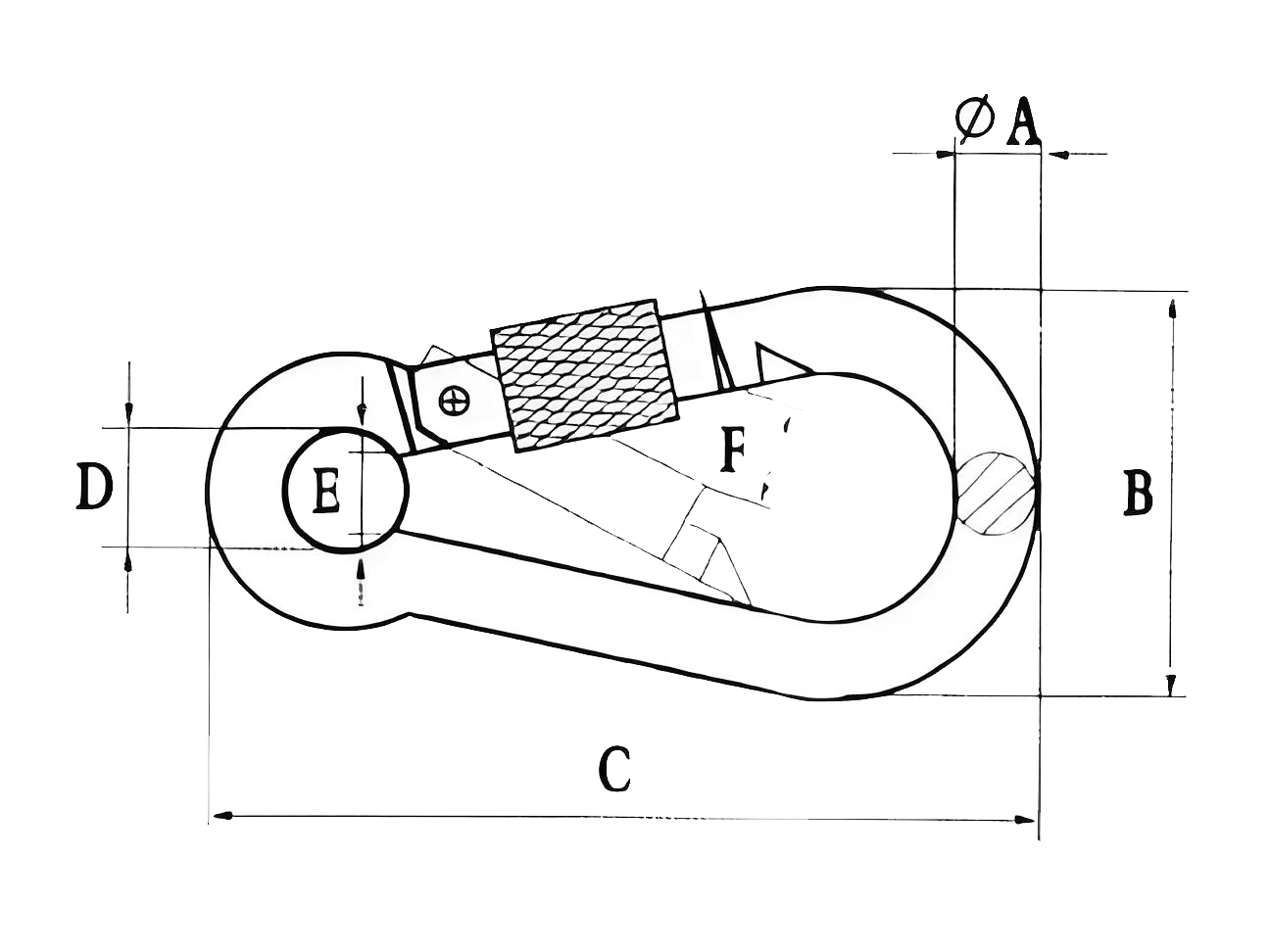

| Size mm | ΦA mm | B mm | C mm | D mm | F mm | W.L.L. lbs | |||||||||
| 4×40 | 4 | 20 | 40 | 7 | 7 | 80 | |||||||||
| 5×50 | 5 | 25 | 50 | 8 | 7 | 100 | |||||||||
| 6×60 | 6 | 30 | 60 | 9 | 8 | 140 | |||||||||
| 7×70 | 7 | 35 | 70 | 10 | 8 | 200 | |||||||||
| 8×80 | 8 | 40 | 80 | 12 | 9 | 250 | |||||||||
| 10×100 | 10 | 50 | 100 | 15 | 11 | 400 | |||||||||
| 12×140 | 12 | 67 | 140 | 20 | 19 | 600 | |||||||||
| 14×180 | 14 | 86 | 180 | 22 | 35 | 900 | |||||||||
