Snap Hook with Eyelet and Screw
Snap Hook with Eyelet and Screw
Surface: Galvanized
Material: Carbon steel, Stainless steel
Size: 5mm-14mm
The Snap Hook with Eyelet and Screw is made from premium steel, ensuring durability and reliability in demanding rigging and fastening applications.
Equipped with an eyelet and screw mechanism, this snap hook provides enhanced safety and prevents accidental opening during operation.
Product Details

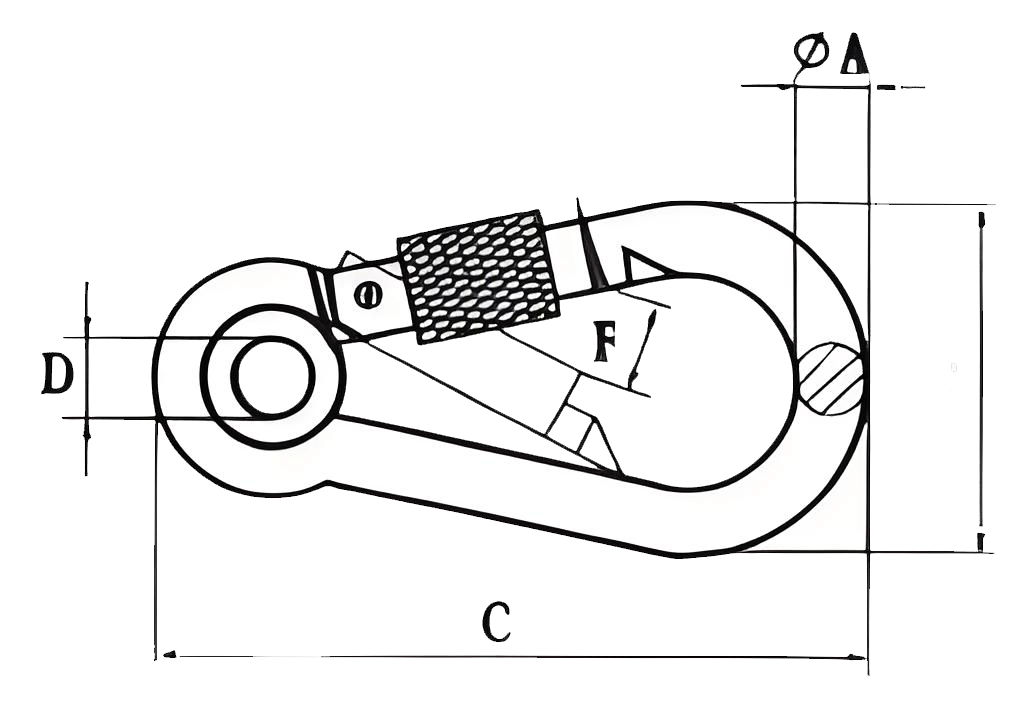

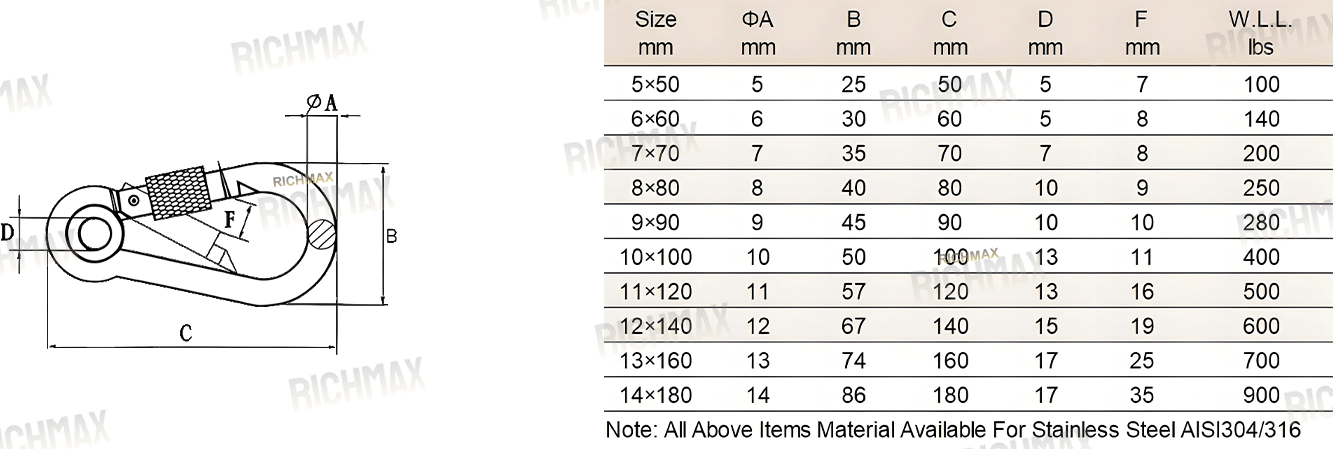

| Size mm | φA mm | B mm | C mm | D mm | F mm | W.L.L. lbs |
| 5×50 | 5 | 25 | 50 | 5 | 7 | 100 |
| 6×60 | 6 | 30 | 60 | 5 | 8 | 140 |
| 7×70 | 7 | 35 | 70 | 7 | 8 | 200 |
| 8×80 | 8 | 40 | 80 | 10 | 9 | 250 |
| 9×90 | 9 | 45 | 90 | 10 | 10 | 280 |
| 10×100 | 10 | 50 | 100 | 13 | 11 | 400 |
| 11×120 | 11 | 57 | 120 | 13 | 16 | 500 |
| 12×140 | 12 | 67 | 140 | 15 | 19 | 600 |
| 13×160 | 13 | 74 | 160 | 17 | 25 | 700 |
| 14×180 | 14 | 86 | 180 | 17 | 35 | 900 |
Note: All Above ltems Material Available For Stainless Steel AISI304/316
