Mine Chain | High-Tensile Mining Chain | Underground Chain Supply

High-tensile Mine Chain for Coal Transport

#1 MARINE HARDWARE

Mine Chain

(5)

Product attributes :

Designed to withstand the harshest conditions, the Mine Chain is the preferred choice for underground conveyor systems and mining equipment. Its robust links ensure reliable load-bearing capacity and minimize wear even in abrasive settings.

This chain complies with mining safety standards and is widely adopted in coal, metal, and mineral processing sectors where reliability is critical.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

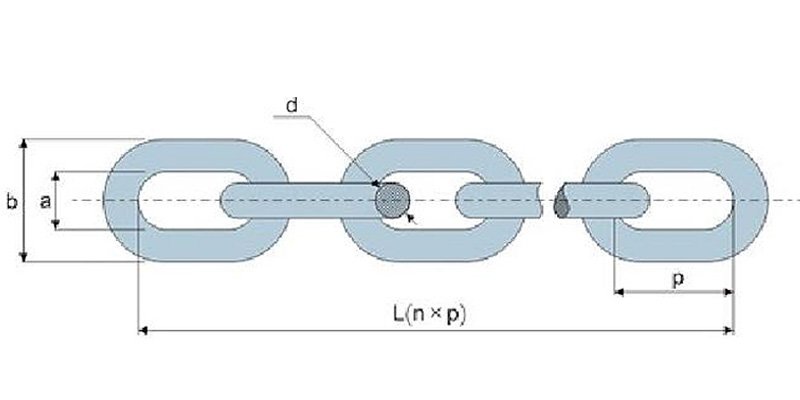

Chain Diameter(d) mm		Pitch of the Chain link(p) mm		Width mm		Curve Radius(r) mm	Proof Load kn		Breaking Load kn		Weight kg/m
				Inside(a) Min.	Outside(b) Max.
							Class 1	Class 2	Class 1	Class 2
10	±0.4	40	±0.5	12	34	15	85	100	110	130	1.9

14	±0.4	50	±0.5	17	48	22	150	200	190	250	4.0
18	±0.5	64	±0.6	21	60	28	260	330	320	410	6.6

22	±0.7	86	±0.9	26	74	34	380	490	480	610	9.5
24	±0.8	86	±0.9	28	79	37	460	580	580	720	11.6

26	±0.8	92	±0.9	30	86	40	540	680	680	850	13.7

30	±0.9	108	±1.0	34	98	46	710	900	890	1130	18.0

34	±1.0	126	±1.2	38	109	52	900	1160	1140	1450	22.7
