Grade 80 Lifting Chain

Product attributes :

Grade 80 Lifting Chain is engineered for maximum safety and load capacity in lifting applications. Each link is precisely heat-treated for strength and durability, ensuring it meets or exceeds EN 818-2 and other relevant standards.

This chain is compatible with a wide range of lifting accessories and is ideal for construction, mining, logistics, and marine applications.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

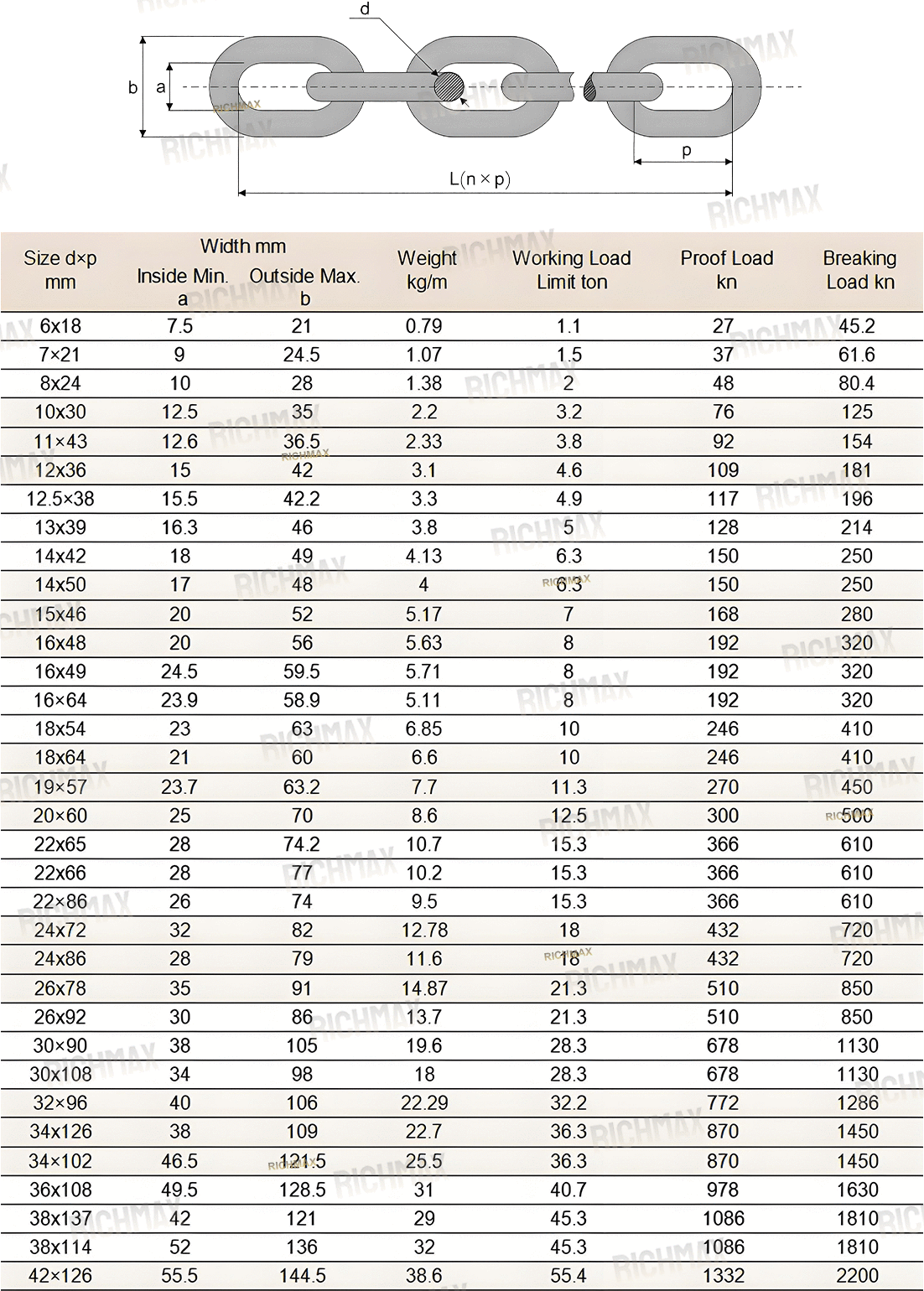

Size d×p mm	Width mm		Weight kg/m	Working Load Limit ton	Proof Load kn	Breaking Load kn

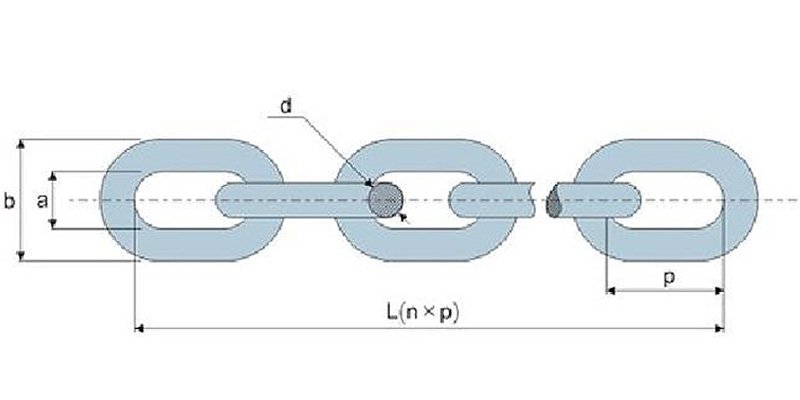

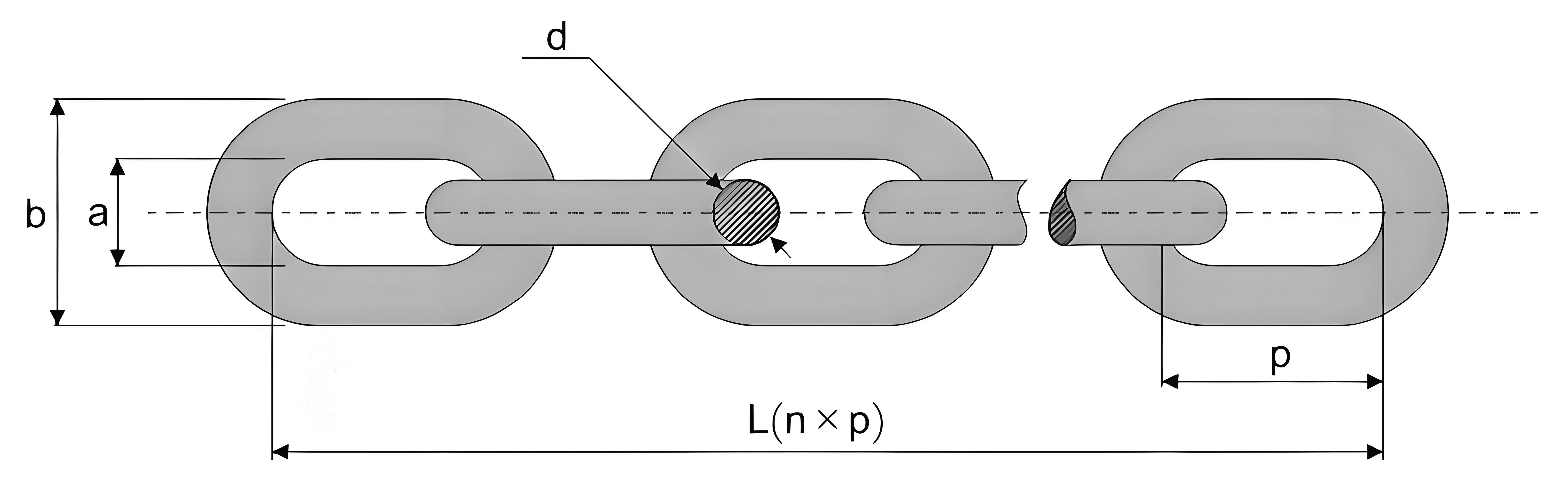

Size d×p mm	Inside Min. a	Outside Max. b	Weight kg/m	Working Load Limit ton	Proof Load kn	Breaking Load kn
6x18	7.5	21	0.79	1.1	27	45.2
7×21	9	24.5	1.07	1.5	37	61.6
8x24	10	28	1.38	2	48	80.4
10x30	12.5	35	2.2	3.2	76	125
11×43	12.6	36.5	2.33	3.8	92	154
12x36	15	42	3.1	4.6	109	181
12.5×38	15.5	42.2	3.3	4.9	117	196
13x39	16.3	46	3.8	5	128	214
14x42	18	49	4.13	6.3	150	250
14x50	17	48	4	6.3	150	250
15x46	20	52	5.17	7	168	280
16x48	20	56	5.63	8	192	320
16x49	24.5	59.5	5.71	8	192	320
16×64	23.9	58.9	5.11	8	192	320
18x54	23	63	6.85	10	246	410
18x54	23	63	6.85	10	246	410
18x64	21	60	6.6	10	246	410
19×57	23.7	63.2	7.7	11.3	270	450
20×60	25	70	8.6	12.5	300	500
22x65	28	74.2	10.7	15.3	366	610
22x66	28	77	10.2	15.3	366	610
22×86	26	74	9.5	15.3	366	610
24x72	32	82	12.78	18	432	720
24x86	28	79	11.6	18	432	720
26x78	35	91	14.87	21.3	510	850
26x92	30	86	13.7	21.3	510	850
30×90	38	105	19.6	28.3	678	1130
30x108	34	98	18	28.3	678	1130
32×96	40	106	22.29	32.2	772	1286
34x126	38	109	22.7	36.3	870	1450
34×102	46.5	121.5	25.5	36.3	870	1450
36x108	49.5	128.5	31	40.7	978	1630
38x137	42	121	29	45.3	1086	1810
38x114	52	136	32	45.3	1086	1810
42×126	55.5	144.5	38.6	55.4	1332	2200
