Pear Shaped Quick Link
Surface: Galvanized
Material: Carbon steel, Stainless steel
Size: 3.5mm-12mm
#1 MARINE HARDWARE
Pear Shaped Quick Link
Pear Shaped Quick Link
Surface: Galvanized
Material: Carbon steel, Stainless steel
Size: 3.5mm-12mm
Product Details

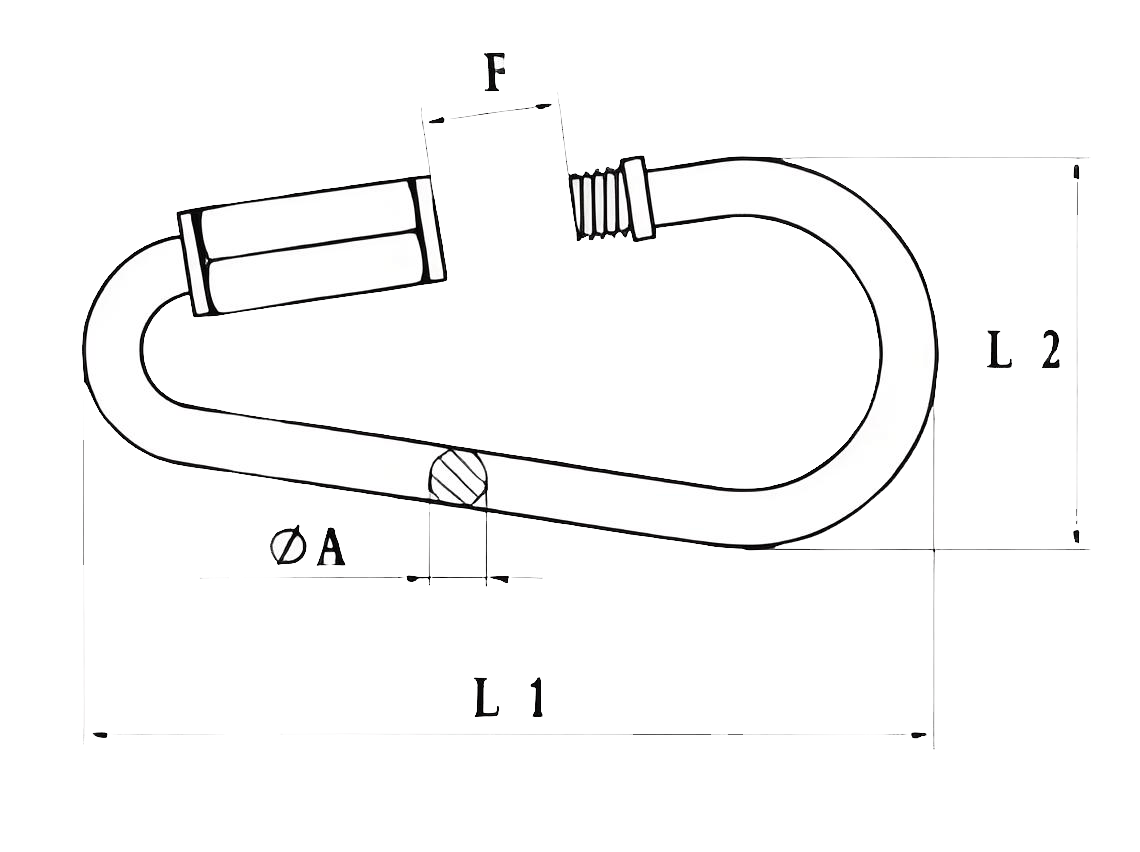

| Size mm | ΦA mm | L1 mm | L2 mm | F mm | W.L.L. lbs | ||
| 3.5 | 3.5 | 52 | 27 | 9.5 | 120 | ||
| 4 | 4 | 60 | 32 | 11 | 350 | ||
| 5 | 5 | 70 | 37 | 12 | 450 | ||
| 6 | 6 | 81 | 42.8 | 14 | 600 | ||
| 8 | 8 | 100 | 50.8 | 17 | 1100 | ||
| 9 | 9 | 108 | 57 | 19 | 1300 | ||
| 10 | 10 | 117.5 | 63.5 | 20.5 | 1500 | ||
| 12 | 12 | 141 | 76 | 23 | 1650 | ||
Note: All Above ltems Material Available For Stainless Steel AISI304/316
The Pear Shaped Quick Link is manufactured from corrosion-resistant alloy steel, offering strong locking capability and versatile application across rigging and safety environments.
Its large opening accommodates mixed diameter connections and supports rapid installation. Ideal for use in uneven loading conditions, this link enhances efficiency in work positioning and load management.
