U.S.Type Chain Swivel G401

Product attributes :

U.S.Type Chain Swivel G401

Finish: Galvanized, Hot Dip Galvanzied

Manufacturing Process‌: Drop Forged

Material: Alloy Steel, Stainless Steel

Application: Lifting equipment, Industrial Manufacturing, Mining, Shipping, Building Industry


The U.S. Type Chain Swivel G401 is made from forged carbon steel, ensuring high strength, durability, and reliable performance under heavy loads.

The G401 swivel allows smooth 360-degree rotation, preventing chain twisting and ensuring safer and more efficient operations.

Commonly used in lifting, rigging, towing, and marine industries, offering secure and stable chain connections for heavy-duty tasks.


Product Details



Size
(in.)
Working
Load Limit
(lbs)
Weight
Each
(lbs)

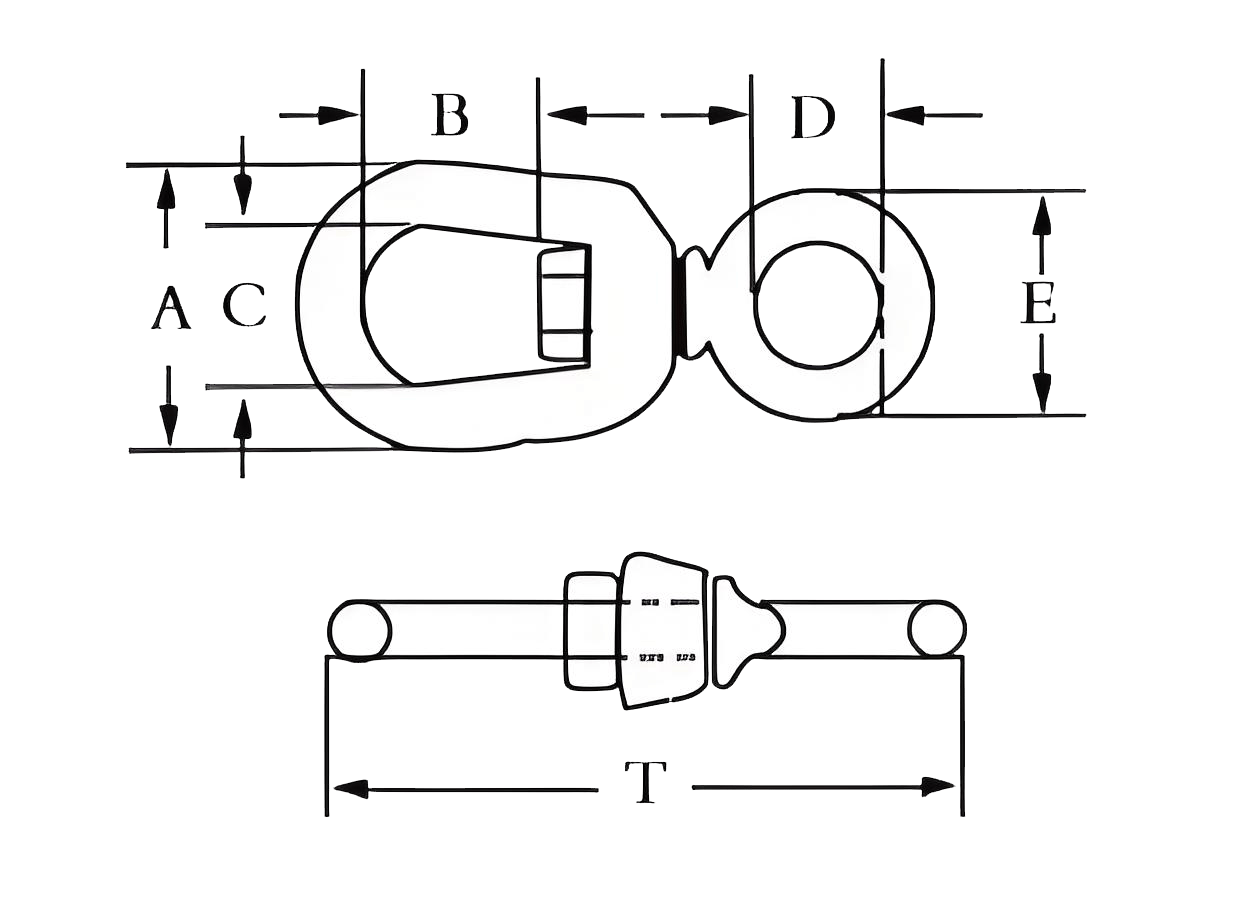

Dimensions (in.)
ABCDET
1/4850 0.13 1.25 0.69 0.75 0.62 1.12 2.75
5/161250 0.25 1.63 0.81 1.00 0.75 1.38 3.34
3/82250 0.61 2.00 0.94 1.25 1.00 1.75 4.19
1/23600 1.12 2.50 1.31 1.50 1.25 2.25 5.25
5/85200 1.75 3.00 1.56 1.75 1.50 2.75 6.31
3/47200 3.09 3.50 1.75 2.00 1.75 3.25 7.22


*M.B.S. IS 5 TIMES OF W.L.L.
