U.S.Type Regular Swivel G402

Product attributes :

U.S.Type Regular Swivel G402

Finish: Galvanized, Hot Dip Galvanzied

Manufacturing Process‌: Drop Forged

Material: Alloy Steel, Stainless Steel

Application: Lifting equipment, Industrial Manufacturing, Mining, Shipping, Building Industry


The U.S. Type Regular Swivel G402 is manufactured from forged carbon steel, providing outstanding strength, durability, and long service life.

Featuring an eye-to-eye configuration, the G402 swivel is easy to connect with chains, ropes, or shackles, ensuring secure and flexible operation.

The swivel design allows free rotation, reducing chain twisting and improving safety during lifting and rigging tasks.

Product Details

Size
(in.)
Working
Load Limit
(Ibs)
Weight
Each
(lbs)

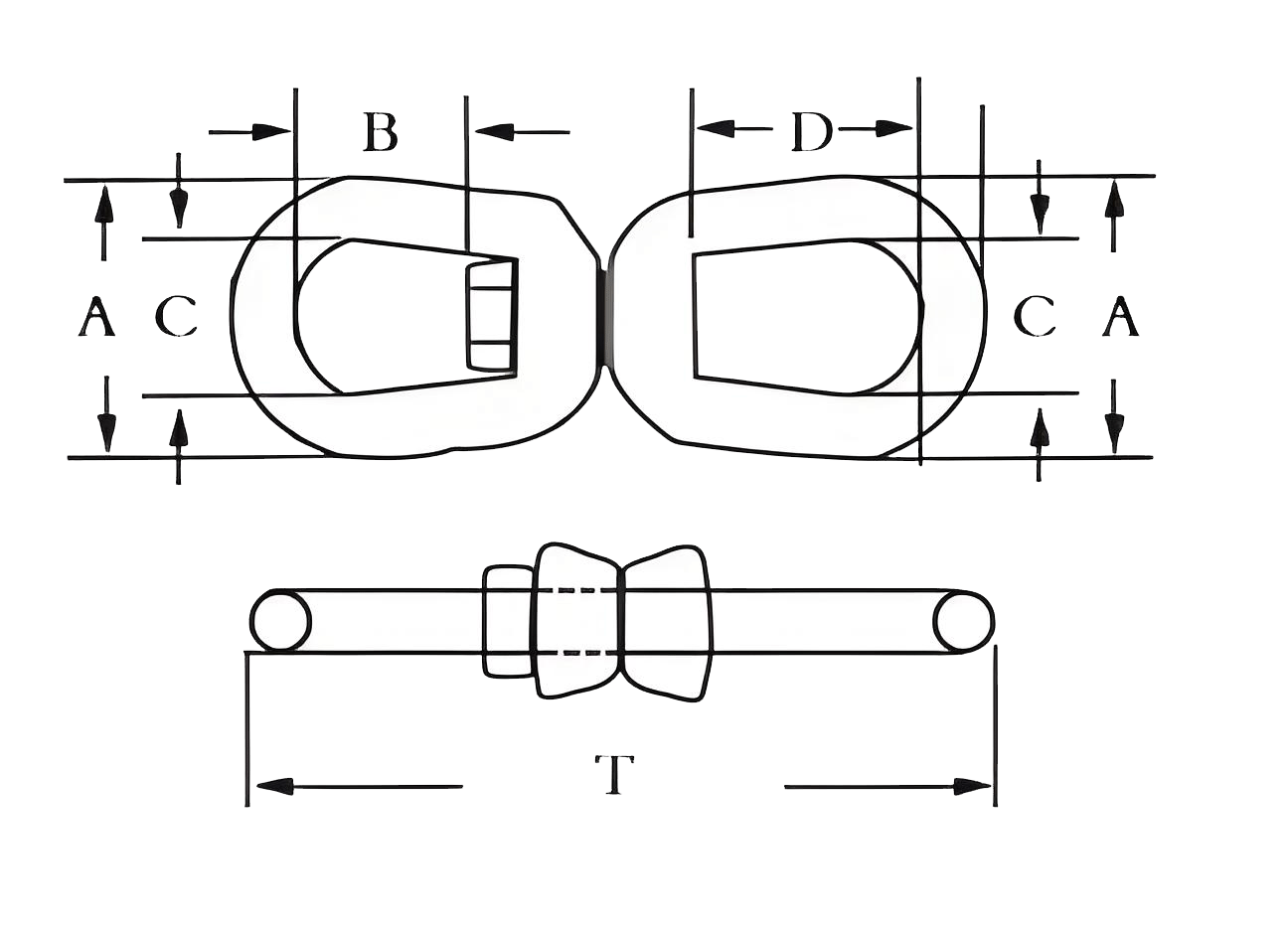

Dimensions(in.)
ABCDT
1/4850 0.21 1.25 0.69 0.75 1.06 3.44
5/161250 0.39 1.63 0.81 1.00 1.25 4.19
3/82250 0.75 2.00 0.94 1.25 1.50 5.06
1/23600 1.43 2.50 1.31 1.50 2.00 6.44
5/85200 2.50 3.00 1.56 1.75 2.38 7.81
3/47200 4.13 3.50 1.75 2.00 2.63 8.69
7/810000 6.25 4.00 2.06 2.25 3.06 10.13
12500 9.00 4.50 2.31 2.50 3.50 11.63
1-1/418000 16.37 5.63 2.69 3.13 3.69 13.36
  1-1/245200 49.06 7.00 4.19 4.00 4.19 20.13

*M.B.S. IS 5 TIMES OF W.L.L.
