U.S.Type Jaw End Swivel G403

Product attributes :

U.S.Type Jaw End Swivel G403

Finish: Galvanized, Hot Dip Galvanzied

Manufacturing Process‌: Drop Forged

Material: Alloy Steel, Stainless Steel

Application: Lifting equipment, Industrial Manufacturing, Mining, Shipping, Building Industry

The U.S. Type Jaw End Swivel G403 is manufactured from premium forged carbon steel, providing exceptional strength, durability, and safety for heavy-duty applications.

Equipped with jaw ends and a secure pin, the G403 swivel ensures easy attachment to shackles, chains, or ropes, making rigging operations more efficient.

The swivel design allows free 360-degree rotation, preventing twisting of chains or ropes during lifting and towing operations.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

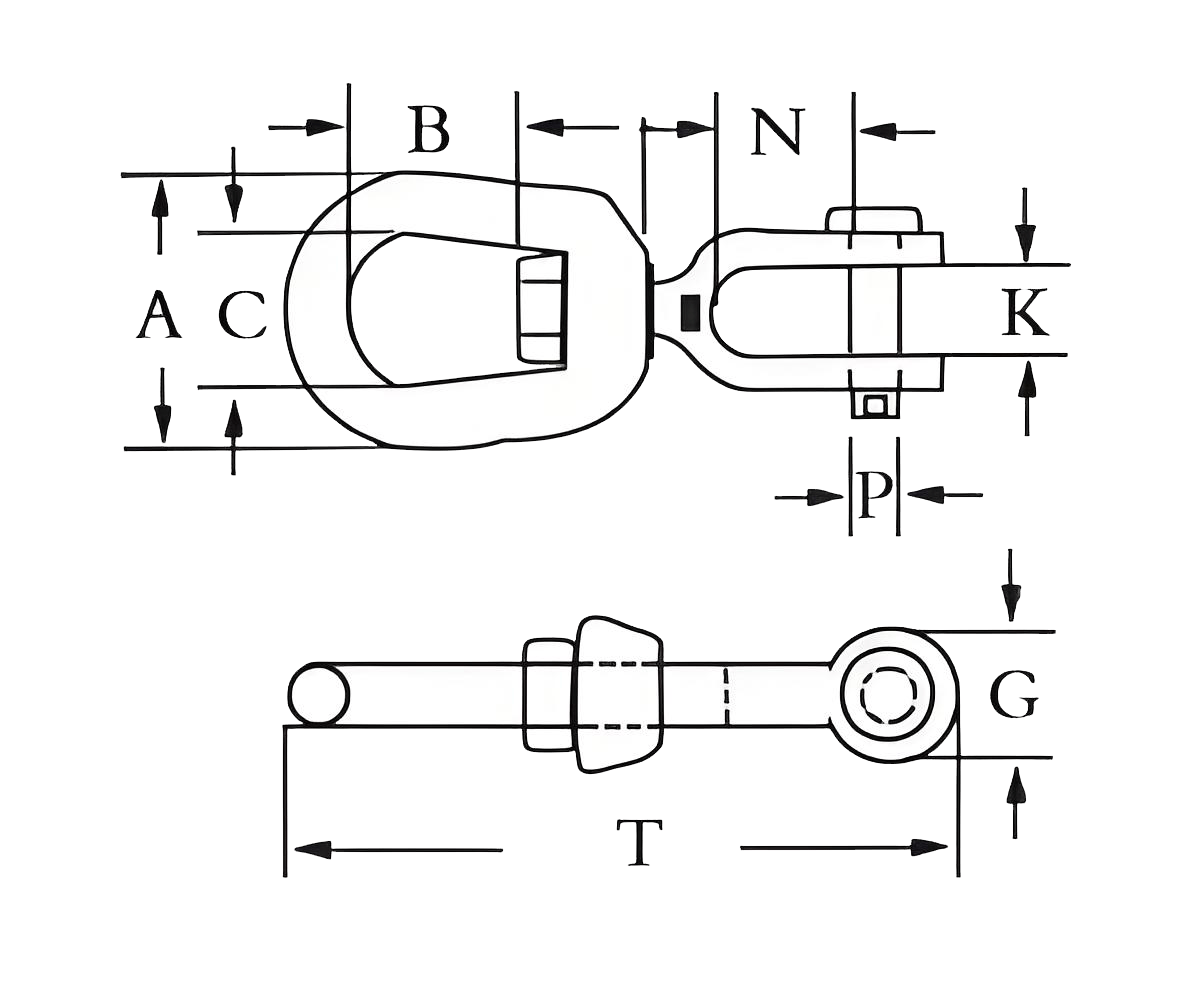

Size (in.)	Working Load Limit (lbs)	Weight Each (Ibs)	Dimensions (in.)
			A	B	C	G	K	N	P	T
1/4	850	0.25	1.25	0.69	0.75	0.69	0.47	0.88	0.25	3.38
5/16	1250	0.37	1.63	0.81	1.00	0.81	0.50	0.88	0.31	3.88

3/8	2250	0.70	2.00	0.94	1.25	1.00	0.63	1.06	0.38	4.75
1/2	3600	1.43	2.50	1.31	1.50	1.31	0.75	1.31	0.50	6.06

5/8	5200	2.48	3.00	1.56	1.75	1.63	0.94	1.50	0.63	7.31
3/4	7200	3.88	3.50	1.75	2.00	1.88	1.13	1.75	0.75	8.31
7/8	10000	5.75	4.00	2.06	2.25	2.13	1.19	2.06	0.88	9.53

1	12500	10.25	4.50	2.31	2.50	2.63	1.75	2.81	1.13	11.69

1-1/4	18000	15.75	5.69	2.69	3.13	3.31	2.06	2.81	1.38	13.13
1-1/2	45200	54.75	7.00	4.19	4.00	5.63	2.88	4.44	2.25	20.84

*M.B.S.IS 5 TIMES OF W.L.L.
