#2 MARINE EQUIPMENT

Single Point Mooring Rope

Product attributes :

Materials : Polyamide(Nylon)

Specific Gravity: 1.14g/cm3

Melting Point: 215℃

Abrasion Resistance: Excellent

UV Resistance: Good

Chemical Resistance: Good


Product Details

false

Polyamide double braid rope is made up of 12-strand core with a protective cover .

This design keeps high strength and good abrasion resistance performance;, it is first choice for single point mooring.

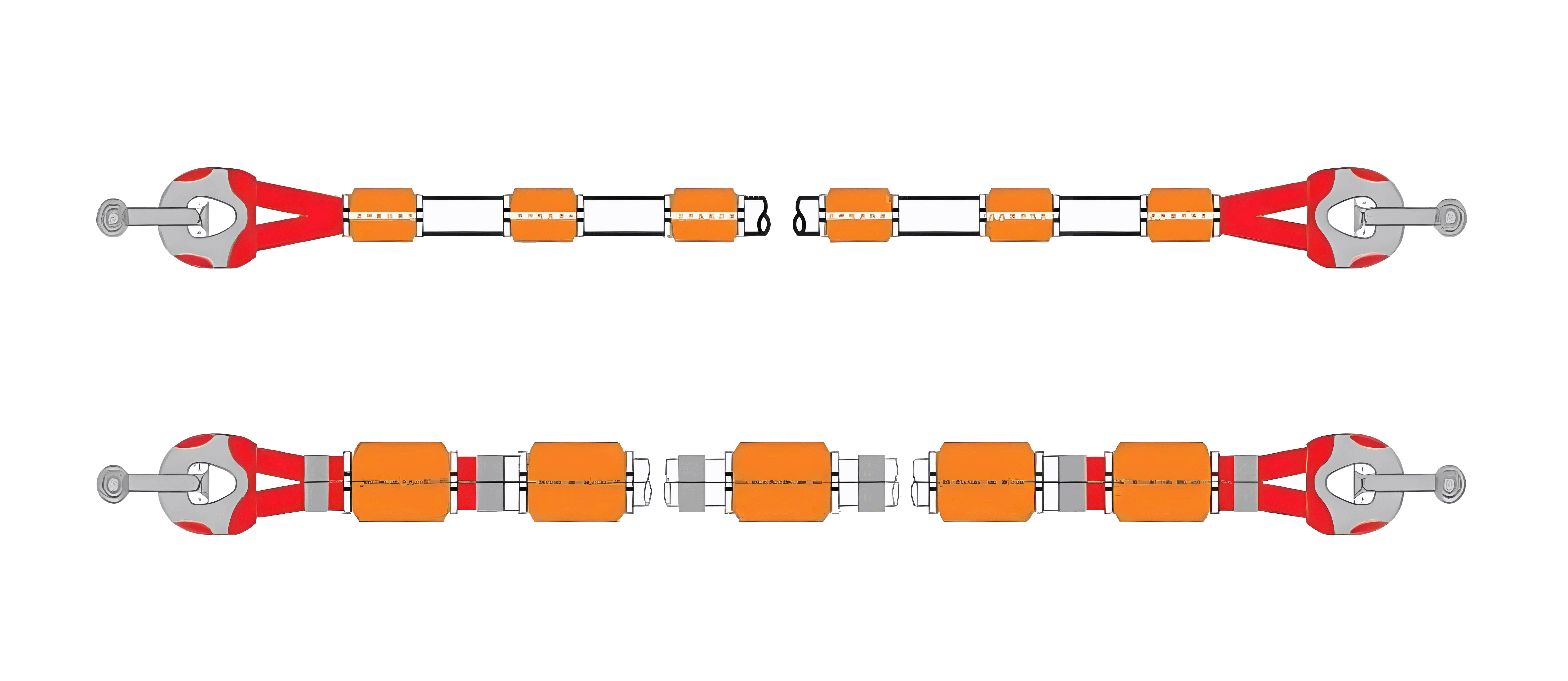

Both end with galvanized cast thimble and polyurethane protect , it would raise the abrasion resistance performance of rope.

At last, put enough floats one by one from the end to end.

The rope manufacturing meets the requirements of OCIMF 2000.


DiameterCircWeightBreaking Strength(Ton)
mminchkg/100mSingle LegGrommet
8010398148252
88 11 482 179 304
9612572208 354
104 13 672 250 425
11214772288490
120 15 887 327 556
128161010368 626
136 17 1140 419 712
144181280460782
152 19 1420 501 852
160201580551 937
168 21 1740 599 1018

Other sizes are available upon request.
