DIN763 Long Link Chain

(5)

Product attributes :

DIN763 Long Link Chain

Brand: RM

Finish: Self Color, Galvanized

Structure: Welded chain

Material: Carbon steel

The DIN763 Long Link Chain features a long-link welded construction, making it ideal for flexible yet durable lifting solutions. It's meeting German DIN specifications.

Widely used in material handling, marine hardware, and cargo securing, this chain offers uniform link dimensions and smooth operation.

Its galvanized finish enhances corrosion resistance, providing long service life in both indoor and outdoor applications.

Share To:

Inquiry Now Add To Inquiry Basket

Product Details
Online Message
Related Products

Product Details

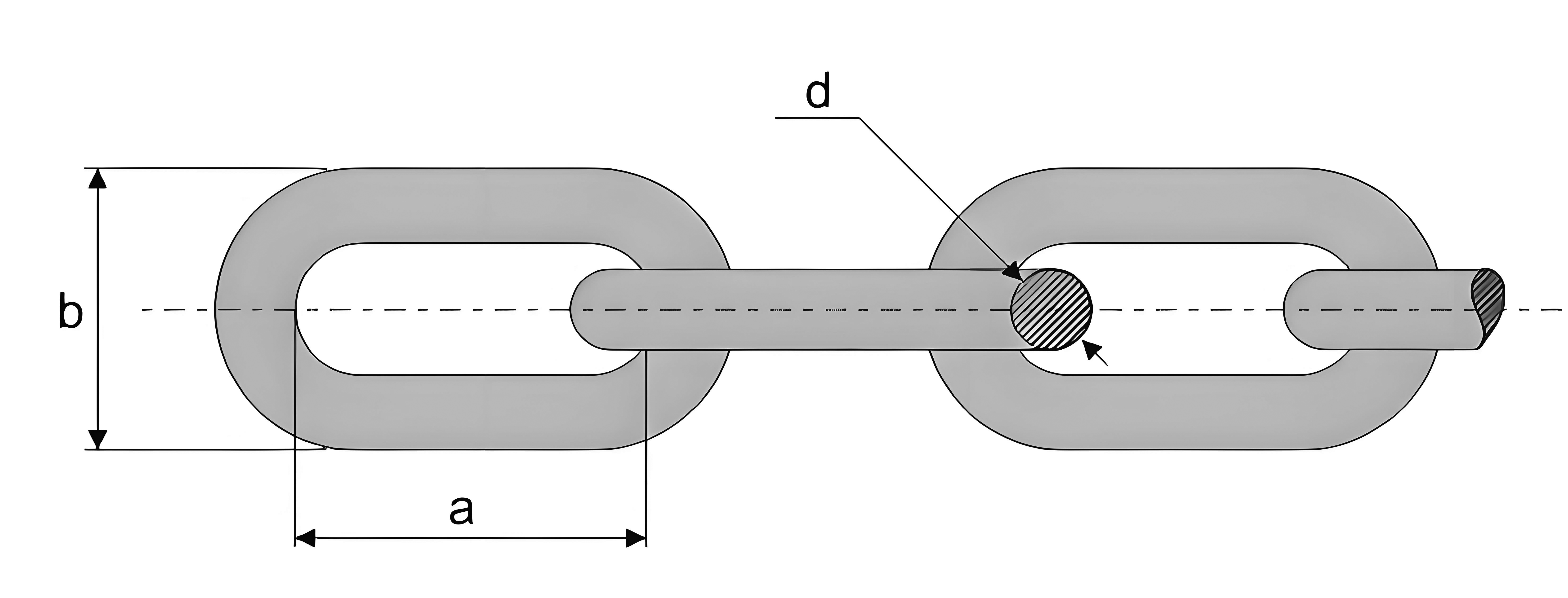

Size(d) mm	Inside Length(a) mm	Outside Width(b) mm	Working Load kn	Proof Load kn	Breaking Load kn	Weight Per M kg
2	22	8	0.25	0.8	1.25	0.06
2.5	24	10	0.4	0.8	2	0.10
3	26	12	0.55	1.05	3.2	0.15
3.5	28	14	0.8	1.54	3.85	0.20
4	32	16	1	2.5	6	0.27
4.5	34	18	1.28	3	6.3	0.35

5	35	20	1.6	4	10	0.43

5.5	38.5	22	1.95	4.2	10.5	0.52

6	42	24	2.4	5	14	0.63

7	49	28	3	7.5	18	0.86

8	52	32	4	10	25	1.10
8.5	56	34	4.6	10.2	25.5	1.25
9	59	36	5.3	10.5	32	1.41
10	65	40	6.3	16	40	1.75
11	72	44	7.9	16.8	47.5	2.11
12	78	48	9.4	18	56.5	2.55
13	82	52	10	25	63	2.95
16	100	64	16	40	100	4.45

18	113	70	21.2	42.3	127	5.65

19	119	72	23.7	47.3	142	6.25

20	120	75	25	50	160	7.00

22	127	82	31.7	63.3	190	8.55

25	140	85	40.9	81.7	245	10.90

28	152	96	60	120	300	13.90
32	171	108	80	160	400	18.20
