DIN766 Short Link Chain

(5)
Product attributes :

DIN766 Short Link Chain

Brand: RM

Finish: Self Color, Galvanized

Structure: Welded chain

Material: Carbon steel


The DIN766 Short Link Chain is crafted for industrial lifting applications, offering unparalleled strength and reliability. It is an ideal solution for handling heavy loads, ensuring a secure and efficient connection for any lifting operation.

The high-quality materials used in its construction guarantee durability and long-lasting performance under the toughest conditions.

DIN766 short link chain is precisely manufactured to meet German DIN standards, offering optimal tensile strength, wear resistance, and consistent performance.

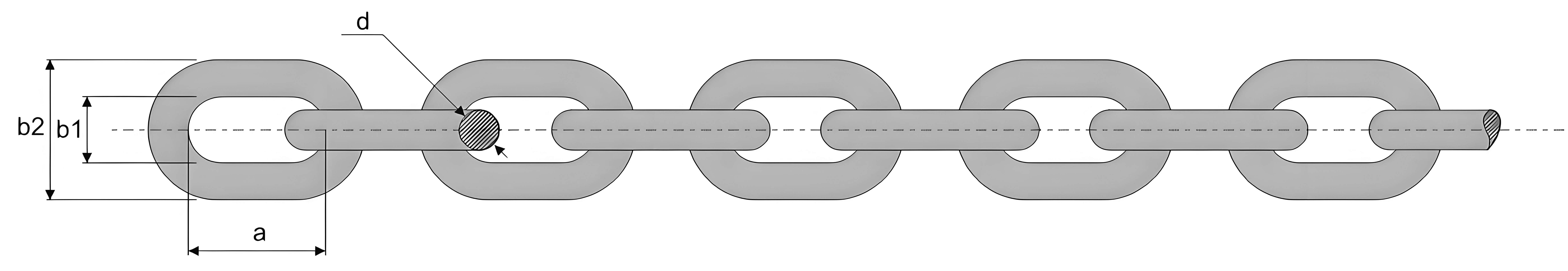

Product Details



Size(d)
mm
Inside
Length(a)
mm
Inside
Width(b1)
mm
Outside
Width(b2)
mm
Weght
Per M
kg
12 3.5 7.5 0.07
16 4.2 11.0 0.16
16 5.0 13.7 0.32
18.5 6.0 17.0 0.50
18.5 7.2 20.2 0.80
22 8.4 23.8 1.10
24 9.6 27.2 1.40
27 10.8 30.6 1.80
10 28 12.0 34.0 2.20
11 31 13.2 37.4 2.70
12 36 14.4 40.8 3.10
13 36 15.6 44.2 3.80
14 41 16.8 47.6 4.40
16 45 19.2 54.4 5.70
18 50 21.6 61.2 7.30
19 53 22.8 64.6 7.97
20 56 24.0 68.0 9.00
22 62 26.4 75.0 11.00
23 64 27.6 78.2 12.00
26 73 31.2 88.4 15.00
28 78 33.8 95.2 18.00
30 84 41.0 102.0 19.50
32 90 43.0 108.8 23.00

Note: All Above Items Material Available For Stainless Steel AISI 304/316
