Grade 100 Alloy Steel Lifting Chain
Brand: RM
Finish: Powder Coated,Painted,Zinc,HDG
Structure: Welded
Material: Alloy steel
Standard: EN818-2
Function: Lifting Chain
Application: Hardware,Lashing,Lifting
#1 MARINE HARDWARE
Grade 100 Alloy Steel Lifting Chain
Grade 100 Alloy Steel Lifting Chain
Brand: RM
Finish: Powder Coated,Painted,Zinc,HDG
Structure: Welded
Material: Alloy steel
Standard: EN818-2
Function: Lifting Chain
Application: Hardware,Lashing,Lifting
Product Details

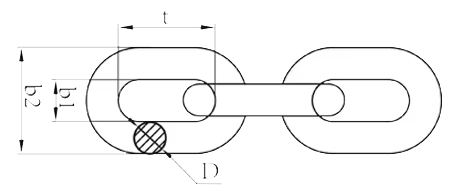

| ITEM NO. | WLL/(T) | B.L(T) | D(mm) | t(mm) | b1(mm)Min | b2(mm)Max |
| 6mm | 1.4 | 5.6 | 6±0.4 | 18±0.5 | 8.7 | 21.6 |
| 7mm | 1.9 | 7.6 | 7±0.28 | 21±0.6 | 9.5 | 25.2 |
| 8mm | 2.5 | 10 | 8±0.32 | 24±0.7 | 10.9 | 28.8 |
| 10mm | 4 | 16 | 10±0.4 | 30±0.9 | 13.5 | 36 |
| 13mm | 6.7 | 26.8 | 13±0.52 | 39±1.2 | 17.5 | 46.8 |
| 16mm | 10 | 40 | 16±0.64 | 48±1.4 | 21.5 | 57.6 |
| 19mm | 14 | 56 | 19±0.9 | 57±1.6 | 25.6 | 68.4 |
| 22mm | 19 | 76 | 22±1.1 | 66±2 | 29.5 | 79.2 |
| 26mm | 26.5 | 106 | 26±1.3 | 78±2.3 | 33.8 | 96.2 |
| 32mm | 39.3 | 157.2 | 32±1.6 | 96±2.9 | 41.6 | 118 |
