Deepwater Mooring Rope

Product attributes :

FEATURES:

  • High-strength parallel-fiber construction

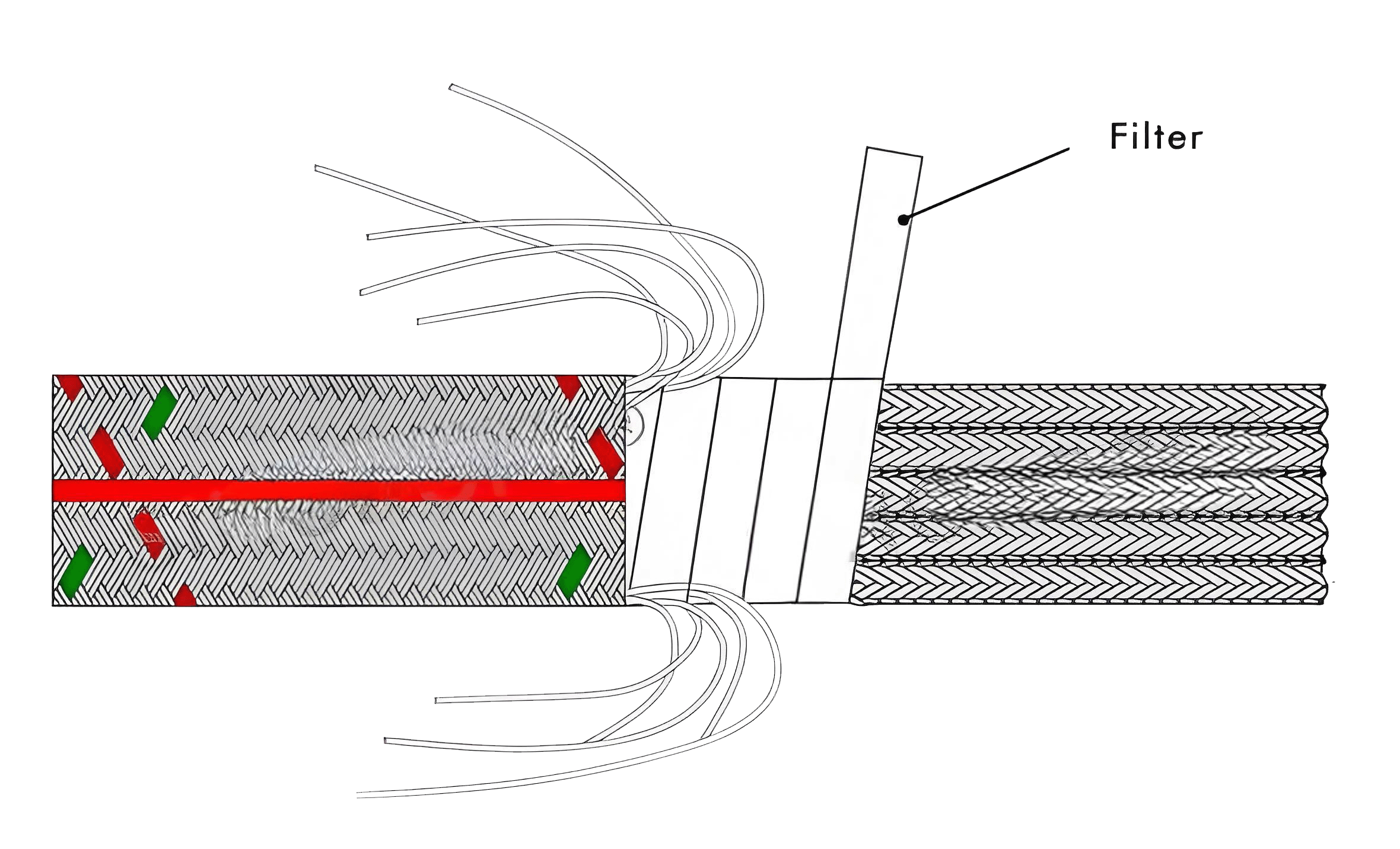

  • Advanced core, filter and protective jacket design

  • Excellent strength-to-weight ratio

  • High abrasion and UV resistance

  • Excellent resistance to particle ingress and corrosion

  • Suitable for harsh marine and deepwater environments

  • Designed for reliable long-term offshore mooring operations

  • Available with customized diameter, length and end termination


DESCRIPTION:

Deepwater Mooring Rope is engineered for demanding offshore and deepwater mooring applications. Its parallel-fiber construction and advanced core, filter and protective jacket provide high strength, durability and protection against abrasion, UV exposure, particle ingress and corrosion. The rope is suitable for FPSO, FSO, floating platforms and other offshore station-keeping systems, offering reliable performance in harsh marine environments.

Product Details

HMPE ROPE (PARALLEL)

Materials: core-HMPE fiber, jacket(optional)

Specific Gravity:0.97g/cm3

Melting Point:145℃

Abrasion Resistance:Excellent

UV Resistance:Excellent

Chemical Resistance:Good


DiameterWeightBreaking Strength
mmkg/mkNTon
762.62940300
87 3.5 3920 400
974.44900500
106 5.2 5880 600
1166.16860700
124 7.0 7840 800
1307.88820900
138 8.7 9800 1000
15410.9122501250
168 13.0 14700 1500
19417.5196002000

Other sizes are available upon request.



POLYESTER ROPE (PARALLEL)

Materials: core-polyester fiber, jacket(optional)

Specific Gravity:1.38g/cm3

Melting Point:251℃

Abrasion Resistance:Excellent

UV Resistance: Excellent

Chemical Resistance: Good


 DiameterWeightBreaking Strength
mmkg/mkNTon
168197840800
178 21.4 8820 900
18623.898001000
196 26.1 10780 1100
202 28.5 11760 1200
208 30.4 12740 1300
218 33.1 13720 1400
224 35.0 14700 1500
232 37.7 15680 1600
238 39.7 16660 1700
246 42.4 17640 1800
252 44.4 18620 1900
260 47.0 19600 2000
266 49.7 20580 2100
27452.3215602200
280 54.7 22540 2300
28657.1235202400
290 59.2 24500 2500

 Other sizes are available upon request.
