◆ Forged super alloy steel–Quenched and Tempered
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
#1 MARINE HARDWARE
Germany Type Forged Link
◆ Forged super alloy steel–Quenched and Tempered
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
Product Details

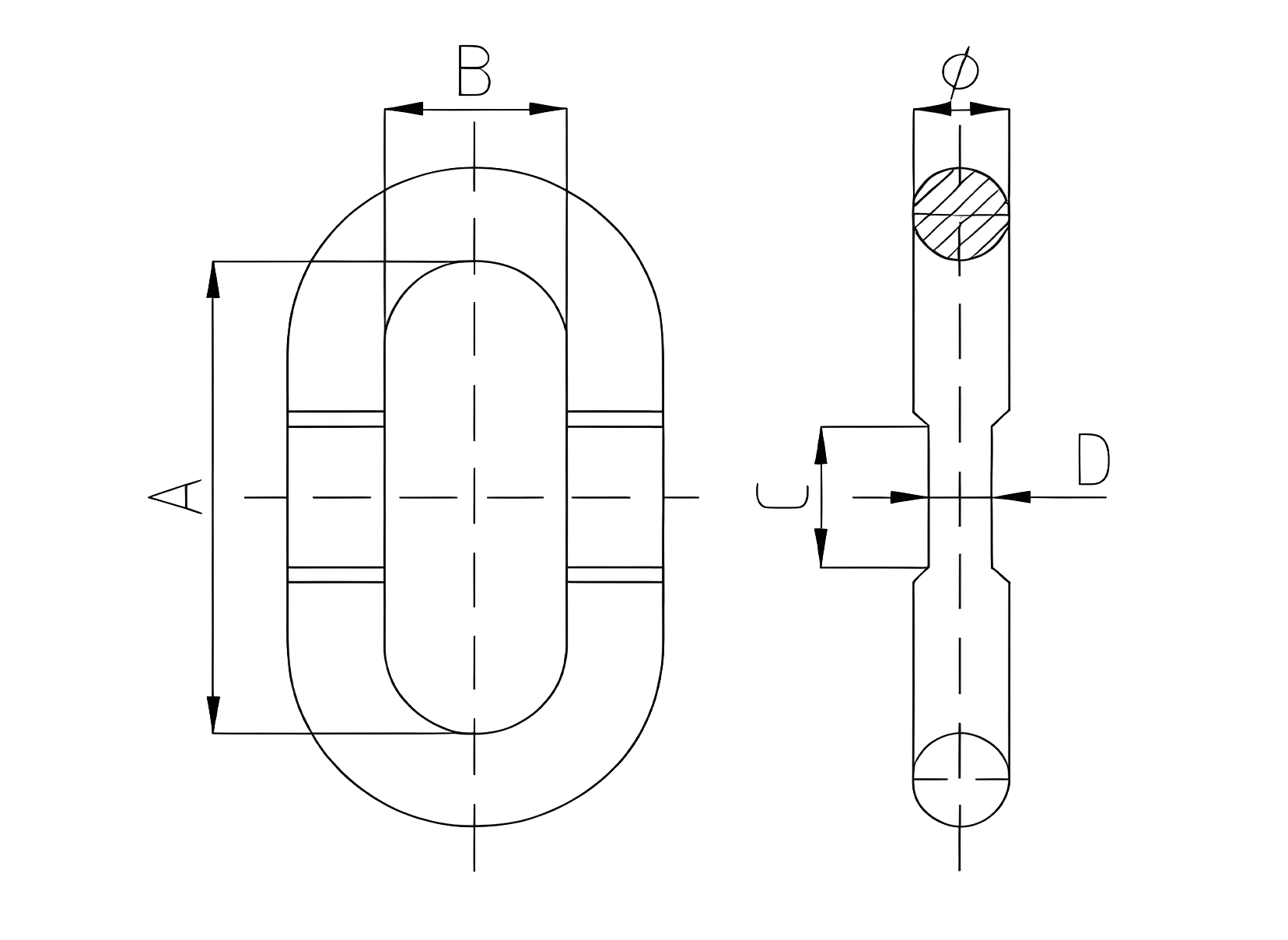

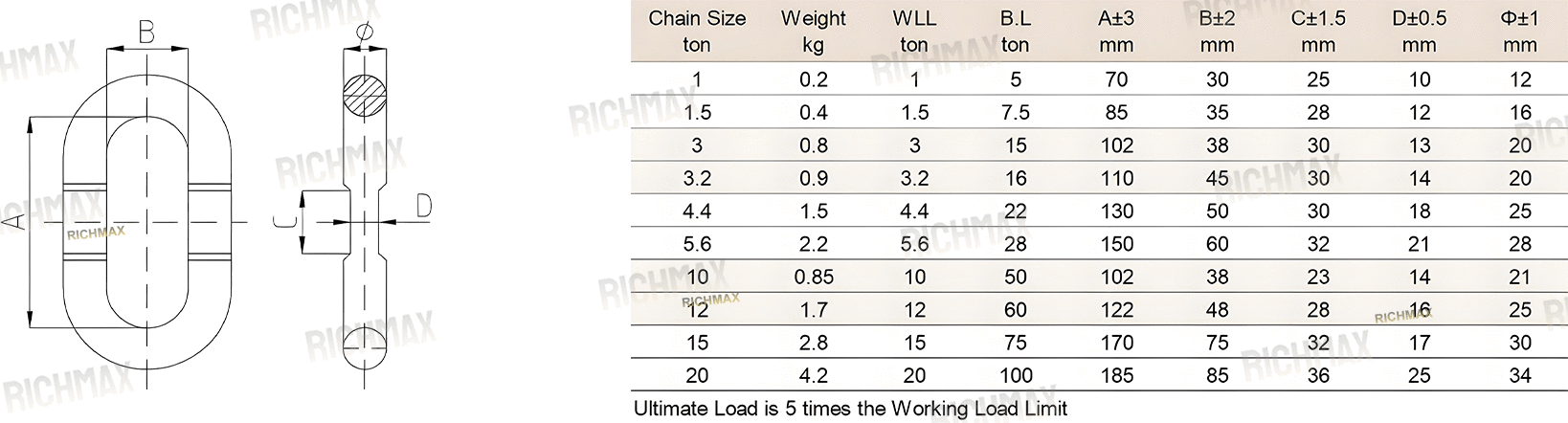

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±3 | B±2 | C±1.5 | D±0.5 | Φ±1 |
| 1T | 0.2 | 1 | 5 | 70 | 30 | 25 | 10 | 12 |
| 1.5T | 0.4 | 1.5 | 7.5 | 85 | 35 | 28 | 12 | 16 |
| 3T | 0.8 | 3 | 15 | 102 | 38 | 30 | 13 | 20 |
| 3.2T | 0.9 | 3.2 | 16 | 110 | 45 | 30 | 14 | 20 |
| 4.4T | 1.5 | 4.4 | 22 | 130 | 50 | 30 | 18 | 25 |
| 5.6T | 2.2 | 5.6 | 28 | 150 | 60 | 32 | 21 | 28 |
| 10T | 0.85 | 10 | 50 | 102 | 38 | 23 | 14 | 21 |
| 12T | 1.7 | 12 | 60 | 122 | 48 | 28 | 16 | 25 |
| 15T | 2.8 | 15 | 75 | 170 | 75 | 32 | 17 | 30 |
| 20T | 4.2 | 20 | 100 | 185 | 85 | 36 | 25 | 34 |
Ultimate Load is 5 times the Working Load Limit
