Swivel Hook

2调大小颜色
Swivel Hook for Rigging Lifting Operations
Swivel Hook for Rigging Lifting Operations
2调大小颜色
Swivel Hook for Rigging Lifting Operations
Swivel Hook for Rigging Lifting Operations

#1 MARINE HARDWARE

Swivel Hook

Product attributes :

◆ Forged alloy steel or carbon steel

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Galvanized, Powder coating, Self color

◆ Colour: Red, Yellow

◆ With latch

◆ Type: 322C - Carbon steel/ 322A- Alloy steel

◆ Alloy steel: Ultimate load is 4.5 times the working load limit

◆ Carbon steel: Ultimate load is 5 times the working load limit


Made from premium alloy steel, the Swivel Hook provides enhanced strength and corrosion resistance, ensuring safe load maneuvering.

Its swivel mechanism reduces cable wear and prevents load chain twisting, offering superior control during lifting, securing, or moving heavy objects in demanding operations.

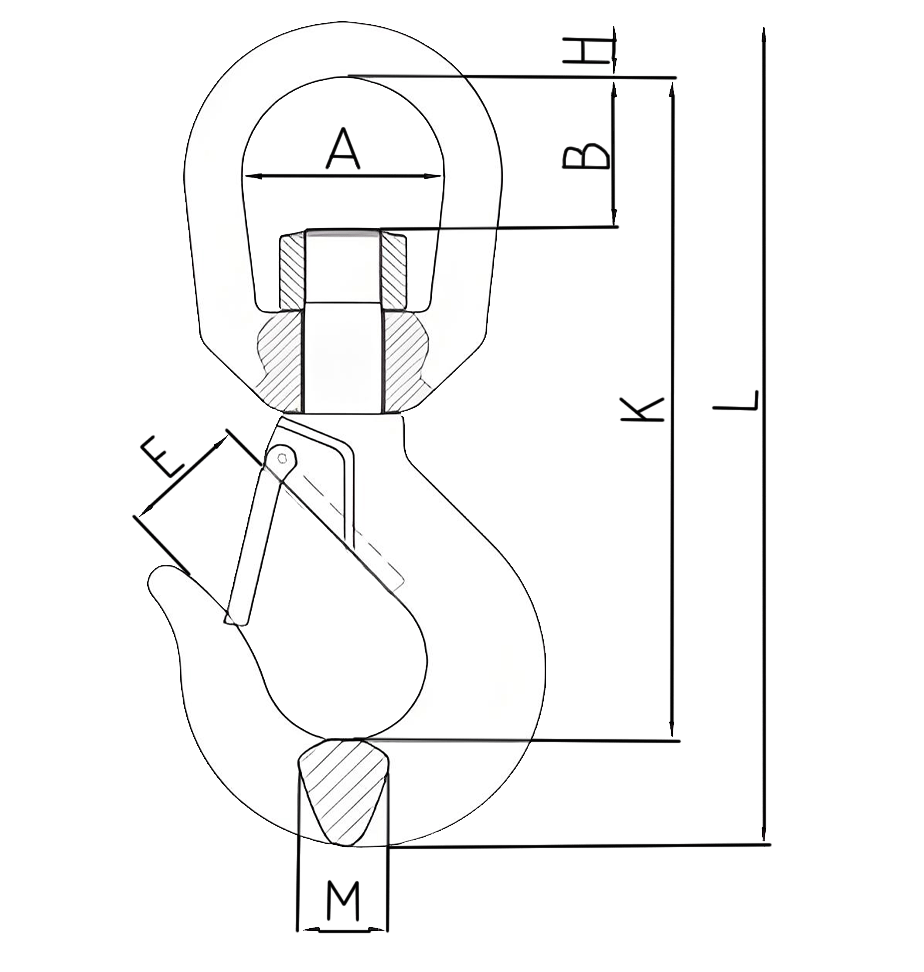

Product Details


Chain SizeWeight
(Kg)
Alloy steel(322A)Carbon(322C)A±1B±2E±2H±0.6K±4L±5M±1
WLL
(T)
B.L
(T)
WLL
(T)
B.L
(T)
A0.75T/C0.5T0.3 0.75 3.375 0.5 2.5 32 22.5  17 110 137 15
A1T/C0.75T0.34 4.5 0.75 3.75 32 22.5  17 108 136 16
A1.5T/C1T0.64 1.5 6.75 37.5 29.5 22.5 12 130 163.5 17.5
A2T/C1.5T1.05 1.5 7.5 42.5 33 21.5 15.8 150 192 21
A3T/C2T1.24 13.5 10 42.5 33 26 15.8 163 209 23
A5T/C3T2.3 22.5 15 48 39 32.5 18 191 246 33
A7T/C5T31.5 25 64 53 43 21.5 243.5 313 34
A11T/C7.5T7.09 11 49.5 7.5 37.5 68 53 49.5 26 277 364 41.5
A15T/C10T12.77 15 67.5 10 50 79 62 54.5 32 332 431 55.7
A22T/C15T24.5 22 99 15 75 105 108 87 40 427 543 70
A30T/C20T34.5 30 135 20 100 105 96 97.5 40 465 596 76.2
