◆ Grade 70, only for lashing or pulling. Never to be used for lifting
◆ Forged alloy steel – Quenched and Tempered
◆ Suitable for G70 transport chain
#1 MARINE HARDWARE
G70 Australian Type Clevis Grab Hook
◆ Grade 70, only for lashing or pulling. Never to be used for lifting
◆ Forged alloy steel – Quenched and Tempered
◆ Suitable for G70 transport chain
Product Details

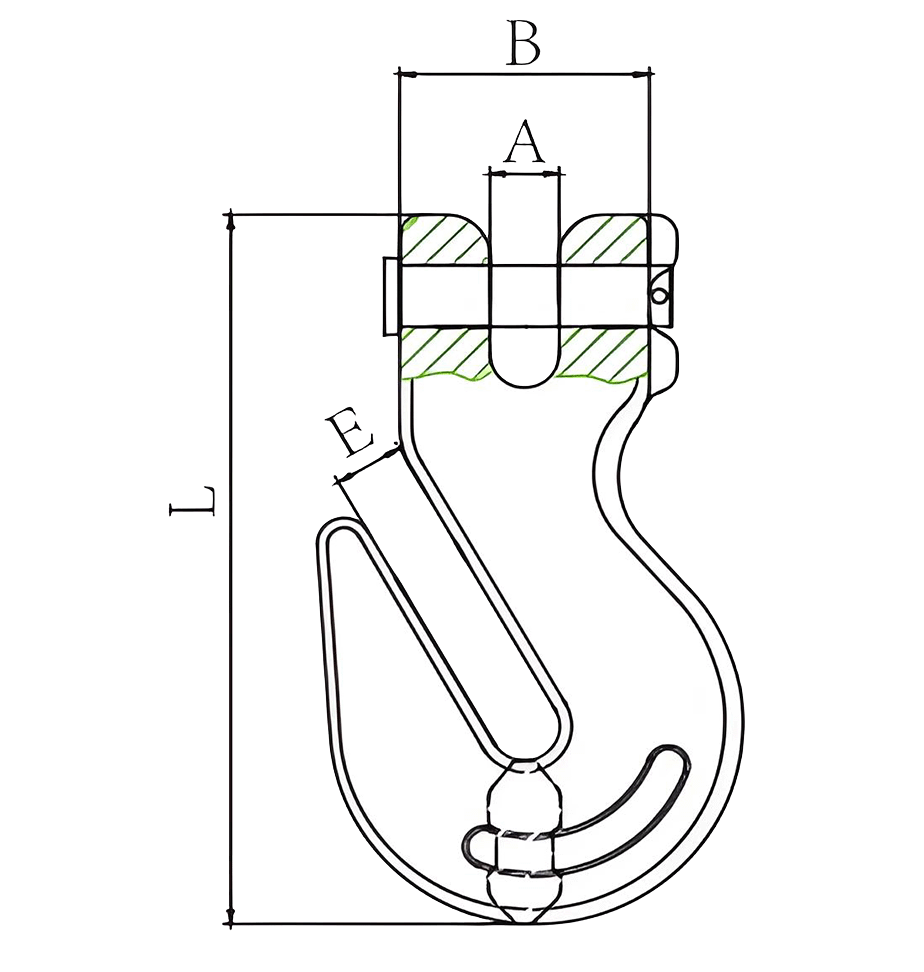

| Chain Size | WEIGHT (KG) | LC (KG) | B.L (KG) | A±0.5 | B±1 | E±0.5 | L±1.2 |
| 6mm | 0.23 | 2300 | 4600 | 9.5 | 26 | 9.5 | 83 |
| 8mm | 0.38 | 3800 | 7600 | 12 | 35 | 12 | 99 |
| 10mm | 0.62 | 6000 | 12000 | 13.5 | 36 | 13.5 | 115 |
| 13mm | 1.24 | 9000 | 18000 | 18 | 48.5 | 18 | 152 |
LC=LOAD CAPACITY BL=BREAKAGE LOAD BL=LC×2 TIME
