Clevis Grab Hook

3调大小颜色
Clevis Grab Hook Marine Lifting Gear
Clevis Grab Hook Marine Lifting Gear
3调大小颜色
Clevis Grab Hook Marine Lifting Gear
Clevis Grab Hook Marine Lifting Gear

#1 MARINE HARDWARE

Clevis Grab Hook

Product attributes :

◆ Forged alloy steel or carbon steel – Quenched and Tempered

◆ Not for lifting, only for lashing or pulling

◆ Breakage test

◆ Surface finish: Galvanized, Powder coating, Self color

◆ Colour: Red, Yellow

◆ Type: H330 - Carbon steel/ A330- Alloy steel


The Clevis Grab Hook is engineered for lifting, securing, and shortening chain assemblies with maximum reliability. Featuring a strong clevis pin connection, this Clevis Grab Hook ensures easy attachment and stable performance under heavy loads.

It is a perfect match for marine equipment, construction machinery, and heavy-duty rigging operations, offering a durable and flexible lifting solution.

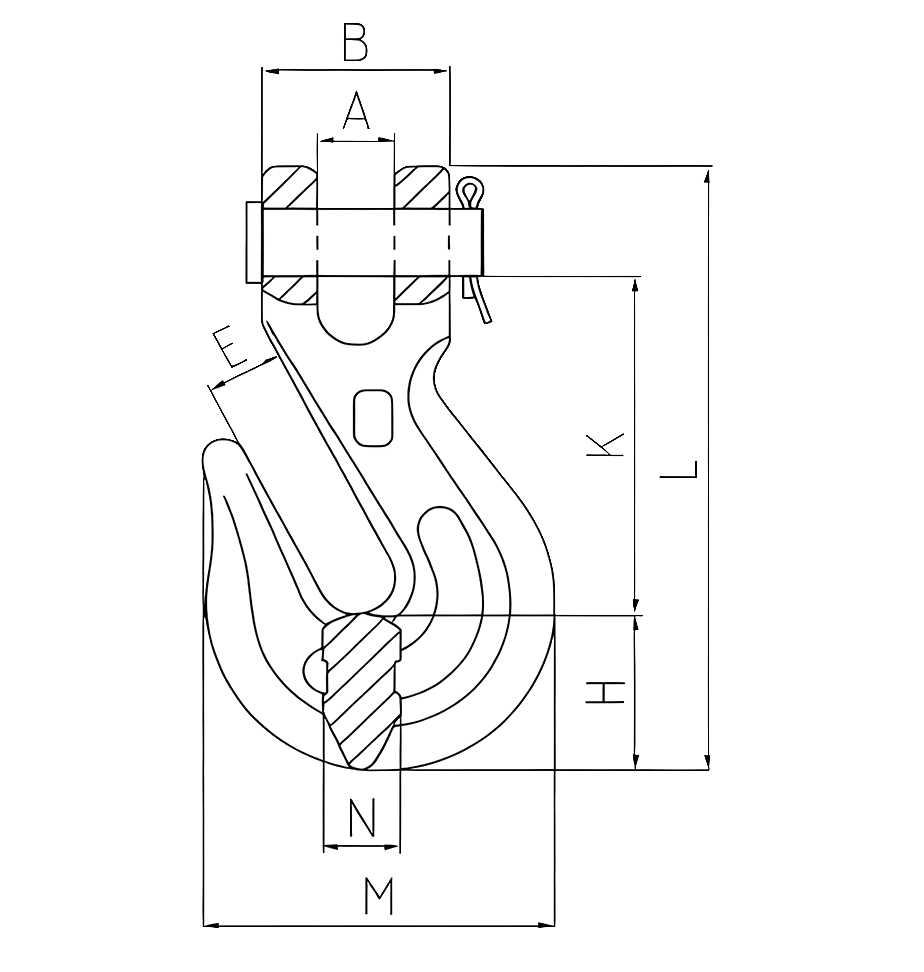

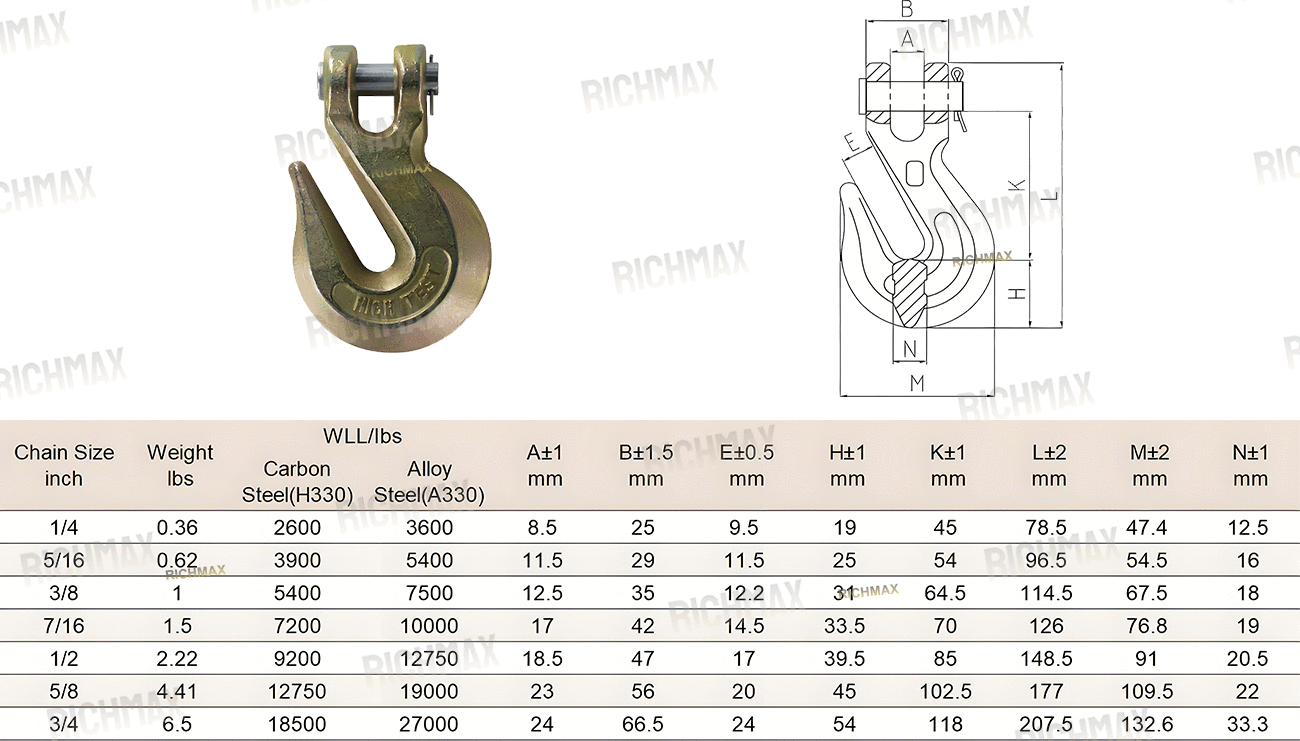

Product Details


Chain SizeWeight
(lbs)
WLL(lbs)A±1B±1.5E±0.5H±1K±1L±2M±2N±1
Carbon Steel(H330)Alloy Steel(A330)
1/40.36 260036008.5 25 9.5 19 45 78.5 47.4 12.5
5/160.62 3900540011.5 29 11.5 25 54 96.5 54.5 16
3/85400750012.5 35 12.2 31 64.5 114.5 67.5 18
7/161.5 72001000017 42 14.5 33.5 70 126 76.8 19
1/22.22 92001275018.5 47 17 39.5 85 148.5 91 20.5
5/84.41 127501900023 56 20 45 102.5 177 109.5 22
3/46.5 185002700024 66.5 24 54 118 207.5 132.6 33.3
