◆ Forged super carbon/alloy steel – Quenched and Tempered
◆ Not for lifting, only for lashing or pulling
◆ Surface finish: Galvanized, Powder coating, Self color
◆ Colour code : Red, Yellow
◆ With latch
#1 MARINE HARDWARE
Clevis Slip Hook With Latch
◆ Forged super carbon/alloy steel – Quenched and Tempered
◆ Not for lifting, only for lashing or pulling
◆ Surface finish: Galvanized, Powder coating, Self color
◆ Colour code : Red, Yellow
◆ With latch
Product Details

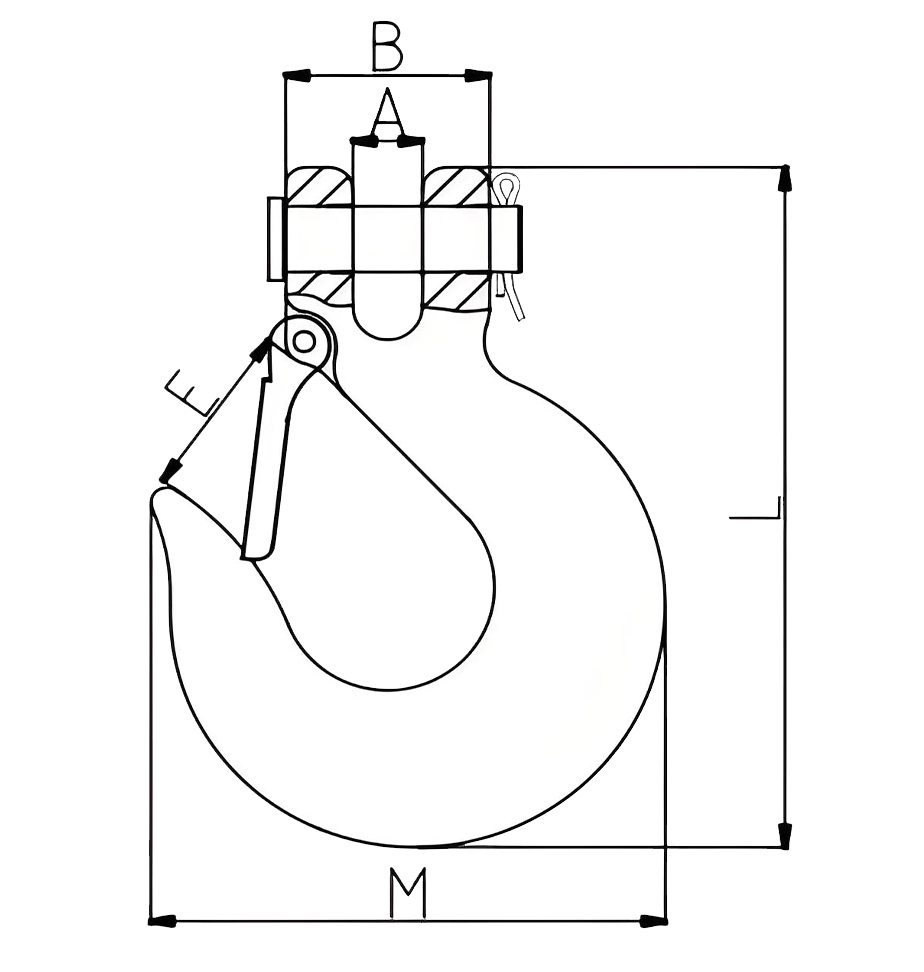

| Chain Size | Weightg ( LBS) | WLL(LBS)(4:1) | A±2 | B±2 | E±2 | L±3 | M±3 | |
| CARBON | ALLOY | |||||||
| 1/4 | 0.53 | 1950 | 2750 | 11 | 27 | 21.5 | 103 | 70.5 |
| 5/16 | 0.77 | 2875 | 4300 | 12.5 | 32 | 26 | 117 | 79 |
| 3/8 | 1.26 | 4000 | 5250 | 15 | 38 | 32 | 134 | 93.5 |
| 7/16 | 2.25 | 5000 | 7000 | 14.5 | 44 | 39 | 151.5 | 111 |
| 1/2 | 3.06 | 6500 | 9000 | 19 | 48 | 37.5 | 168 | 124.5 |
| 5/8 | 5.18 | 9250 | 13500 | 18.5 | 58.7 | 46.5 | 200.5 | 143 |
| 3/4 | 12.4 | 12500 | 19250 | 30 | 81 | 58 | 256 | 188 |
