◆ Forged super alloy steel – Quenched and Tempered
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
#1 MARINE HARDWARE
Alloy Forged Dv Hook
◆ Forged super alloy steel – Quenched and Tempered
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

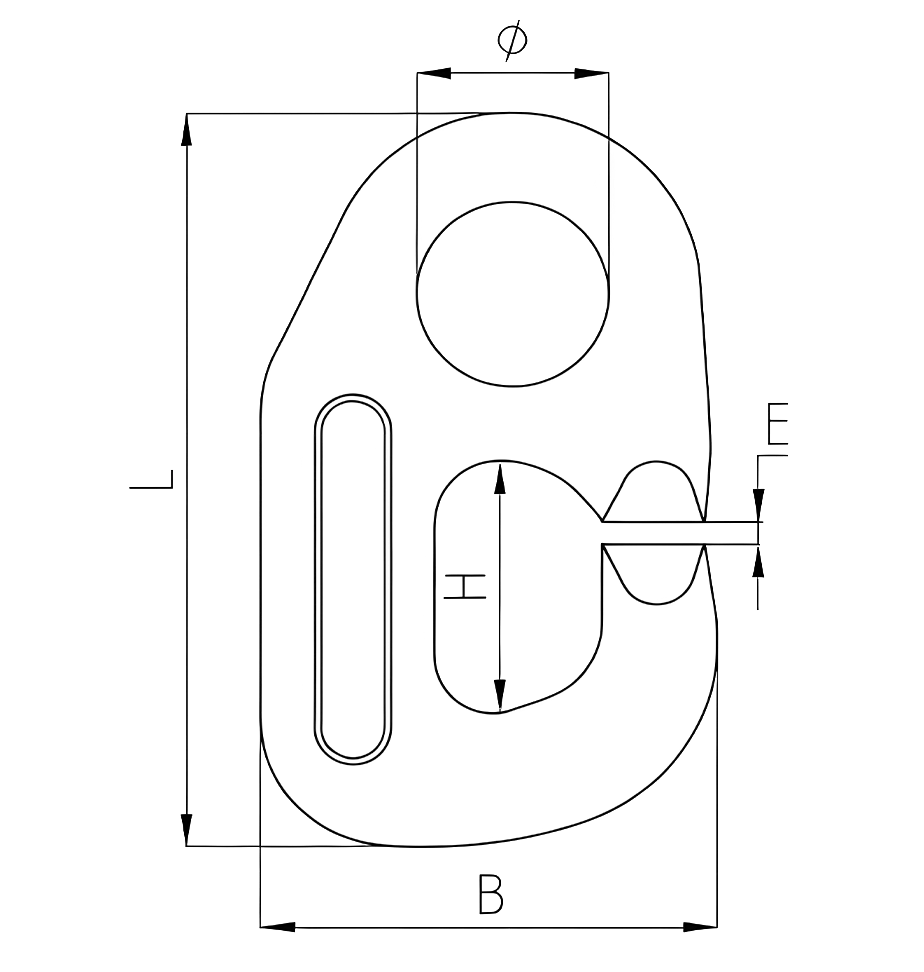

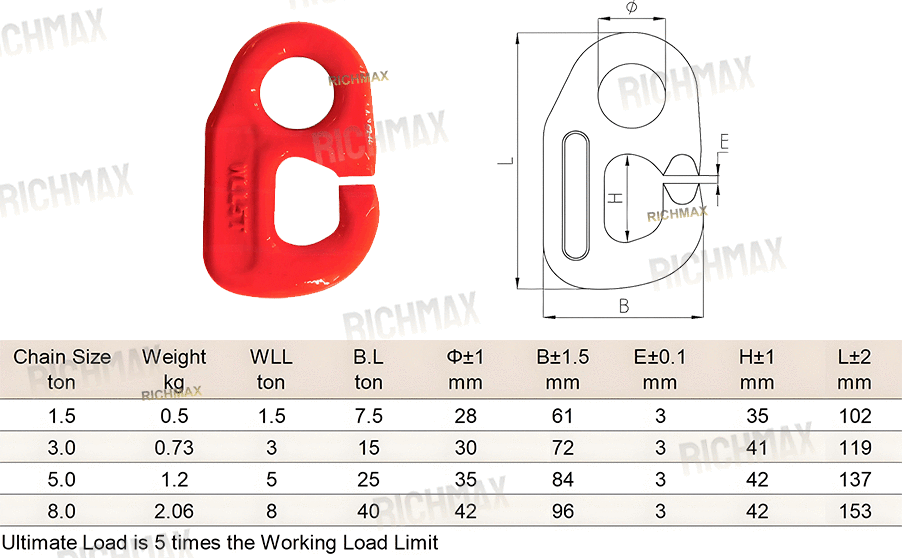

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Φ±1 | B±1.5 | E±0.1 | H±1 | L±2 |
| 1.5T | 0.5 | 1.5 | 7.5 | 28 | 61 | 3 | 35 | 102 |
| 3.0T | 0.73 | 3 | 15 | 30 | 72 | 3 | 41 | 119 |
| 5.0T | 1.2 | 5 | 25 | 35 | 84 | 3 | 42 | 137 |
| 8.0T | 2.06 | 8 | 40 | 42 | 96 | 3 | 42 | 153 |
Ultimate Load is 5 times the Working Load Limit
