Forged Round Ring

Product attributes :

◆ Forged alloy steel – Quenched and Tempered

◆ Surface finish: Powder coating

◆ Colour: Red, Yellow


The forged round ring is manufactured with premium-grade steel and precision forging techniques to withstand extreme loads in marine and construction environments. Its seamless design minimizes stress concentration and ensures superior durability under continuous heavy-duty operations.

This lifting ring is easy to integrate into chain assemblies, cranes, and lifting equipment, making it an indispensable component for safe and efficient rigging applications.

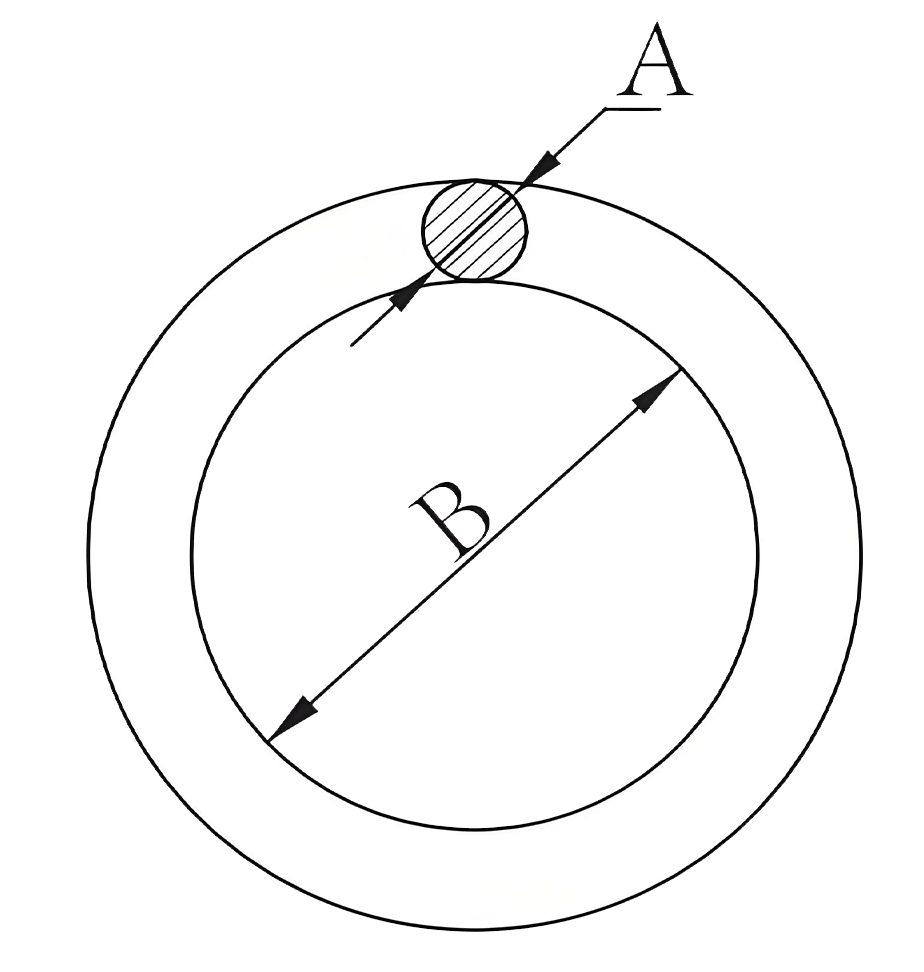

Product Details


Chain SizeWeight
(Kg)
  WLL
  (T)
B.L
(T)
A±1.5B±1
3/8X20.11 0.5 10 50
1/2X20.21 13 50
5/8X3-5/160.46 1.5 16 76
5/8X3-5/160.5 1.5 16 84
3/4X30.67 2.3 13.8 19 76
3/4X40.84 2.5 15 19 102
7/8X41.2 3.3 19.8 22 102
7/8X5-1/21.55 2.5 15 22 140
1X41.59 4.9 29.4 25 102
1X5-1/22.1 4.9 29.4 25 140
1-1/8X62.87 4.7 28.2 28 152
1-1/4X53.1 7.7 46.2 32 127
1-1/4X63.6 7.7 46.2 32 152
1-1/4X105.6 7.7 46.2 32 254
1-3/8X64.5 8.6 51.6 35 152
1-1/2X86.8 11.3 67.8 38 203
1-1/2X8-3/47.32 11.3 67.8 38 222
1-1/2X108.22 11.3 67.8 38 254
1-1/2X1217.8 15.9 95.4 38 305

Ultimate Load is 6 times the Working Load Limit
