#1 MARINE HARDWARE

Shank Hook

Product attributes :

◆ Forged carbon steel/alloy steel – Quenched and Tempered

◆ Surface finish: Galvanized, Powder coating, Self color

◆ Colour: Red, Yellow

◆ Type: 319C - Carbon steel/ 319A- Alloy steel


The Shank Hook is crafted with precision forging processes, ensuring superior strength and easy-maintainable features suitable for lifting chains, cranes, and marine rigging. With optimized geometry for load distribution, the Shank Hook minimizes stress points and enhances safety in critical lifting scenarios.

Its forged body guarantees long service life even under continuous heavy-duty applications, making it an ideal lifting component.

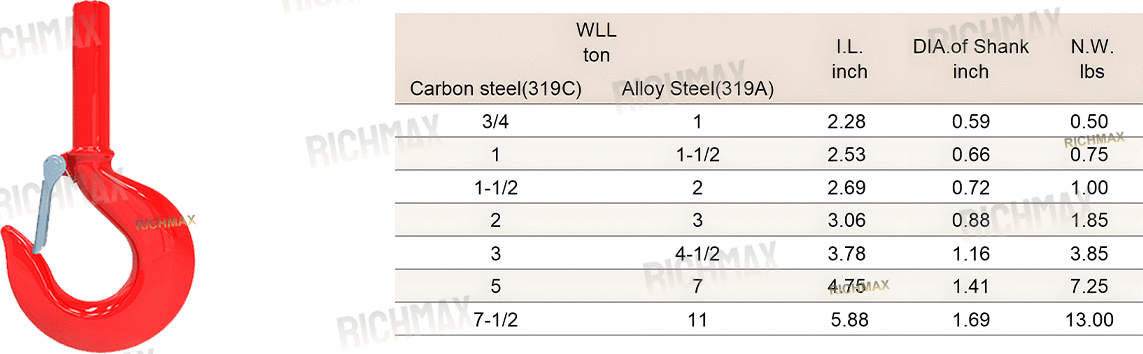

Product Details

W.L.L. (ton)I.L.
  in.
DIA.of Shank
in.
N.W.
lbs
Carbon steel(319C)Alloy Steel(319A)
3/412.28 0.59 0.50
1-1/22.53 0.66 0.75
1-1/22.69 0.72 1.00
3.06 0.88 1.85
4-1/23.78 1.16 3.85
4.75 1.41 7.25
7-1/2115.881.6913.00
