#1 MARINE HARDWARE

X Type Double Clevis Link

Product attributes :

◆ Only for lashing and pulling. Never to be used for lifting

◆ Forged alloy steel – Quenched and Tempered

◆ Suitable for G70 transport chain

◆ Surface finish: Galvanized, Powder coating, Self color

◆ Colour: Red



Manufactured from high-grade steel, the X Type Double Clevis Link excels in providing robust and lasting connections under heavy loads. Its double-clevis design simplifies the attachment process, offering versatility and security for chain systems.

Thanks to its corrosion-resistant finish, it is ideal for outdoor and marine operations where durability and reliability are paramount.

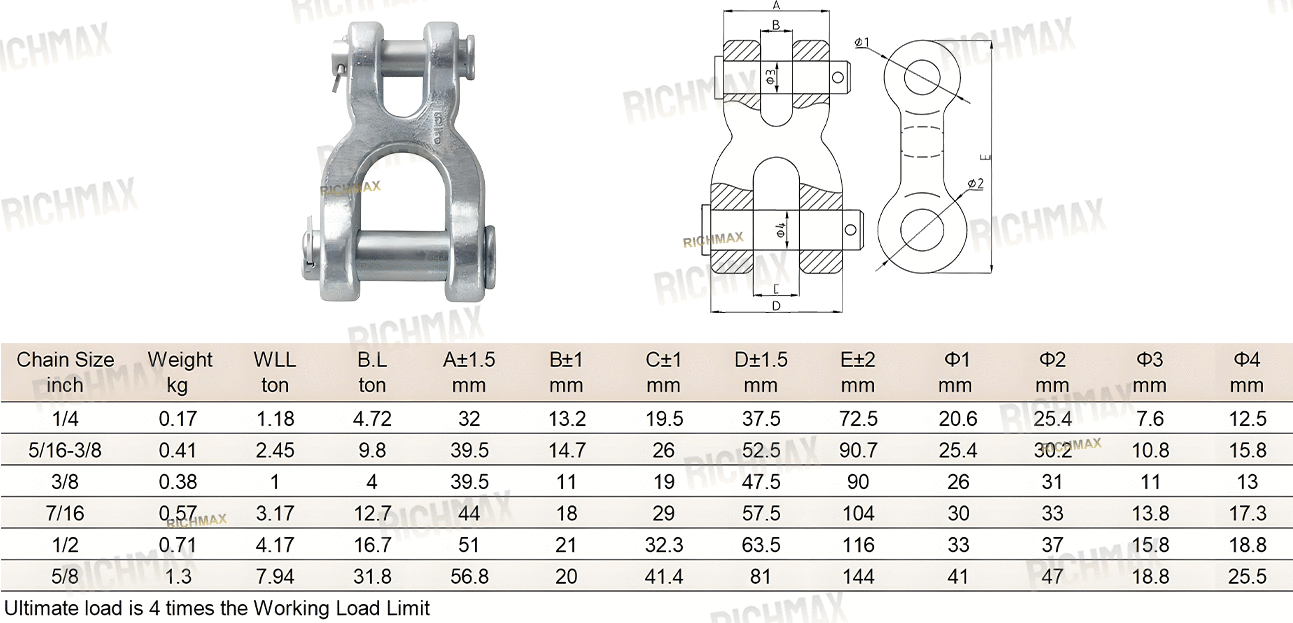

Product Details


Chain Size Weight
   (kg)
WLL
(T)
B.L
(T)

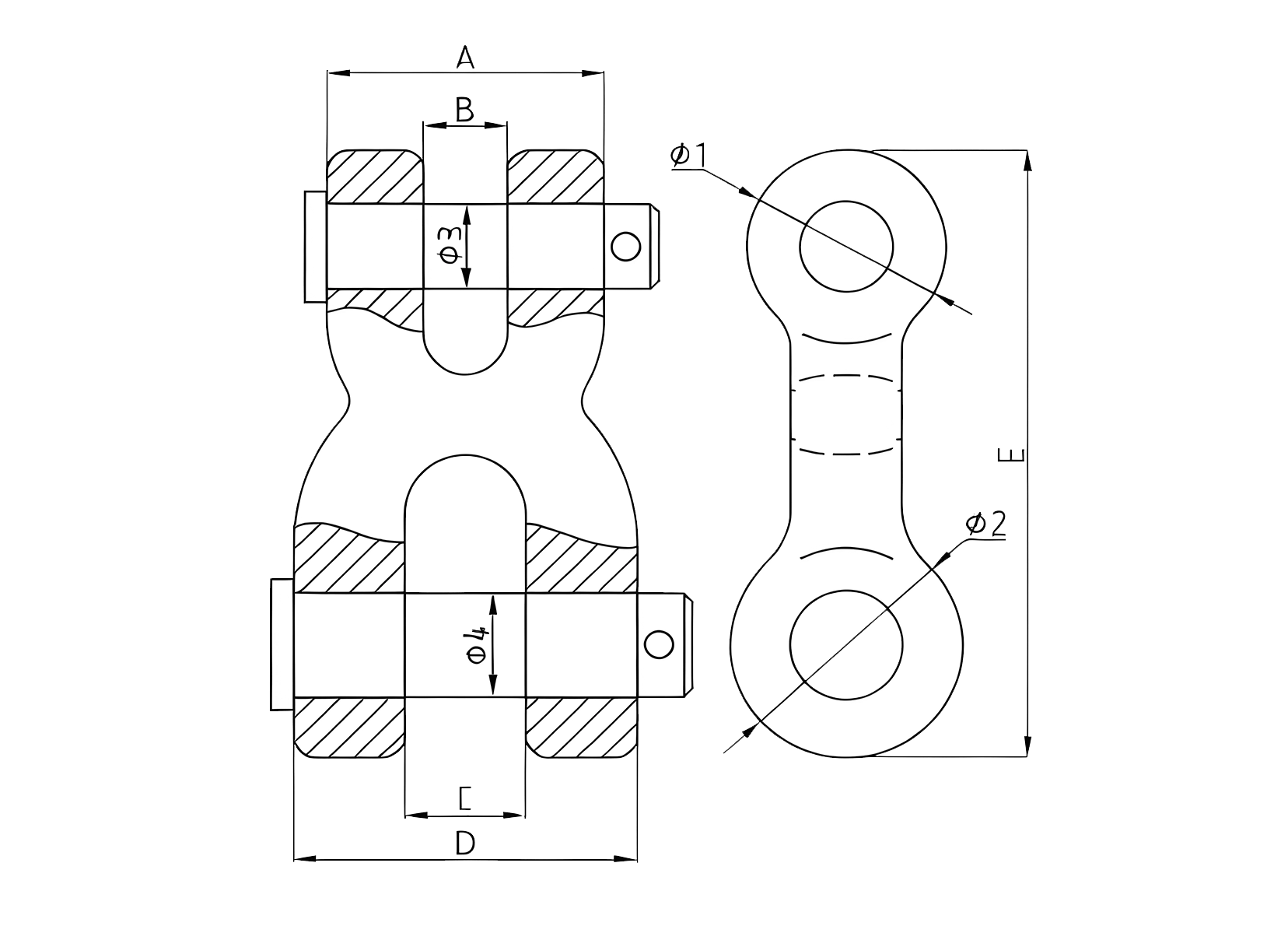

A±1.5B±1C±1D±1.5E±2 Ø1  Ø2Ø3Ø4
1/40.17 1.18 4.72 32 13.2 19.5 37.5 72.5  20.6   25.4 7.6 12.5
5/16-3/80.41 2.45 9.8 39.5 14.7 26 52.5 90.7  25.4   30.2 10.8 15.8
3/80.3839.5 11 19 47.5 90  26   31 11 13
7/160.57 3.17 12.7 44 18 29 57.5 104  30   33 13.8 17.3
1/20.71 4.17 16.7 51 21 32.3 63.5 116  33   37 15.8 18.8
5/81.3 7.94 31.8 56.8 20 41.4 81 144  41   47 18.8 25.5

Ultimate load is 4 times the working load limit
