Danforth High Holding Power Anchor for Offshore and Commercial Applications

OPTIMIZED TWIN FLUKE DESIGN FOR MAXIMUM HOLDING EFFICIENCY

The Danforth High Holding Power Anchor adopts a dual-fluke structure that delivers excellent holding capability with minimal weight, allowing faster setting in various seabed conditions including sand, silt, and clay.

The anchor’s balanced geometry ensures stability even under shifting loads or tidal changes.

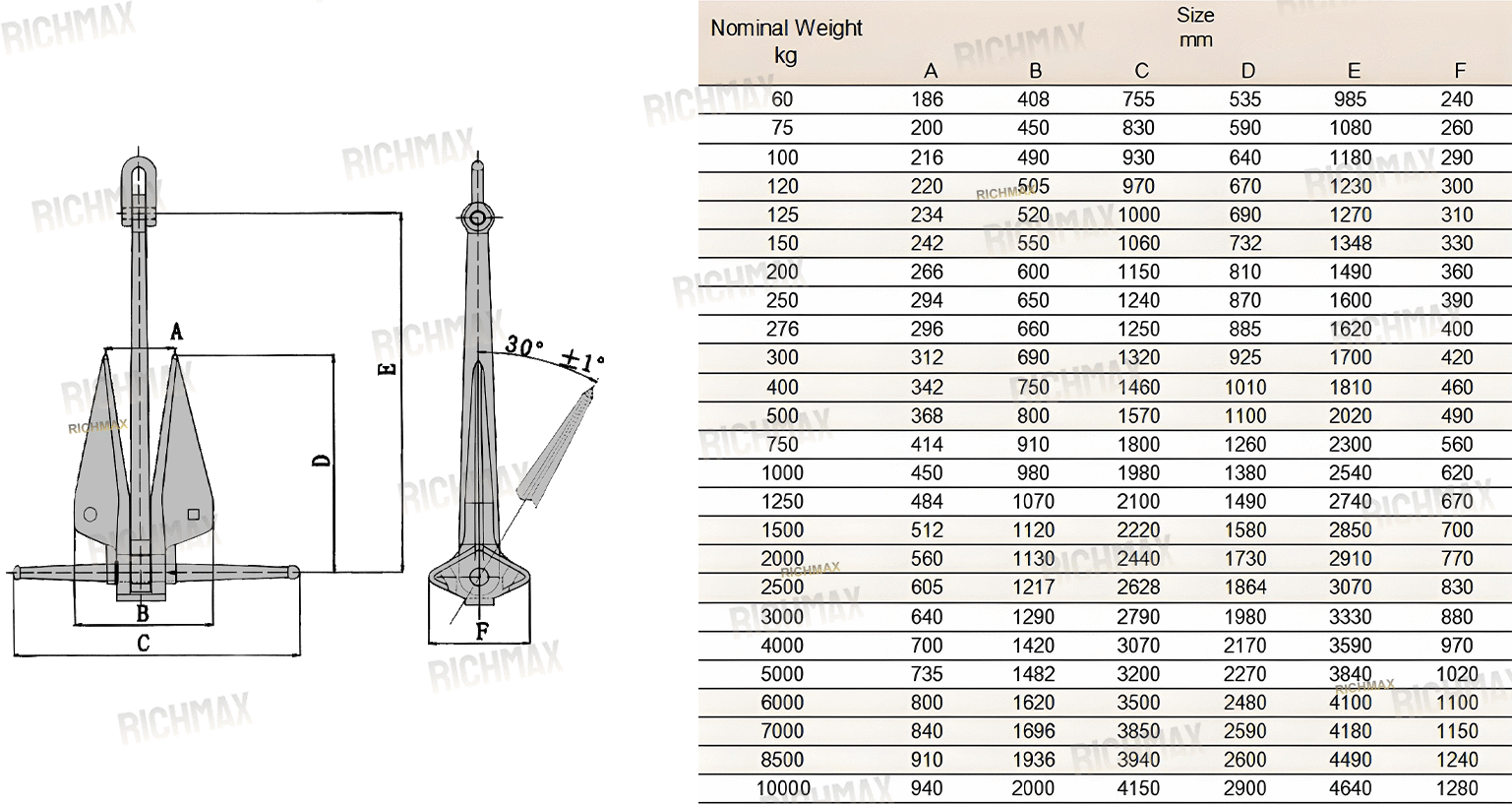

Available in weight ranges from 60 kg to 10,000 kg, suitable for yachts, fishing vessels, and large offshore support ships.

Fluke-to-shank angle precision is maintained within ±0.5° to ensure consistent performance.

Contact us today to request CAD drawings or holding test reports customized for your vessel type.

MARINE-GRADE STEEL AND CORROSION-RESISTANT FINISH

Each anchor is crafted from high-tensile marine-grade steel, ensuring superior durability and resistance to corrosion in harsh saltwater environments.

Offered in hot-dip galvanized or stainless steel 316 versions, with optional epoxy or black bitumen coatings for enhanced offshore endurance.

Consult our engineering team to choose the right surface treatment for your vessel’s operating environment and certification requirements.

CERTIFIED AND TESTED FOR GLOBAL MARINE STANDARDS

The Danforth anchor is fully approved by ABS, LR, BV, CCS and DNV to guarantee compliance with international marine standards.

Each unit undergoes a full proof load test and material certification under IACS UR A1 guidelines. Test documentation and certificates are available upon request.

Request official certification documents to streamline your ship inspection or class approval process.

LIGHTWEIGHT AND EASY TO HANDLE ONBOARD

Its lightweight design allows for easy deployment, retrieval, and stowage, making it ideal for vessels that require frequent anchoring operations.

Designed with a narrow stock and long shank for compact stowage in limited locker spaces, compatible with most hydraulic and electric windlass systems.

Reach out for installation compatibility guidance and improve your anchoring efficiency with our expert support.

PROVEN OFFSHORE AND COASTAL PERFORMANCE

This anchor has demonstrated outstanding results across global marine environments, from deep offshore zones to coastal waters.

Deployed successfully for offshore service vessels and coastal ferries in Europe, the Middle East, and Southeast Asia, where strong holding under dynamic sea conditions is essential.

Get detailed project case studies or request a custom quotation for your ship type and region.

OEM & ODM SUPPLY WITH GLOBAL EXPORT CAPABILITY

As a professional marine anchor manufacturer and exporter, we support OEM and ODM production for shipyards and distributors worldwide.

Annual production capacity exceeds 500 tons, with flexible MOQ from 5 sets and lead times between 30–35 days. Global shipping available via Ningbo, Qingdao, and Shanghai ports.

Send us your drawings or specifications now to receive a personalized quote and secure your production slot.
