JIS Stockless Anchor for Reliable Mooring of Commercial and Offshore Vessels

Precision-Engineered Stockless Design for Marine Applications

The JIS Stockless Anchor is engineered with a balanced shank and twin-fluke geometry, providing secure holding capacity across various seabed types such as clay, sand, and gravel.

Its compact profile allows smooth handling through hawse pipes and windlasses, reducing the risk of chain fouling.

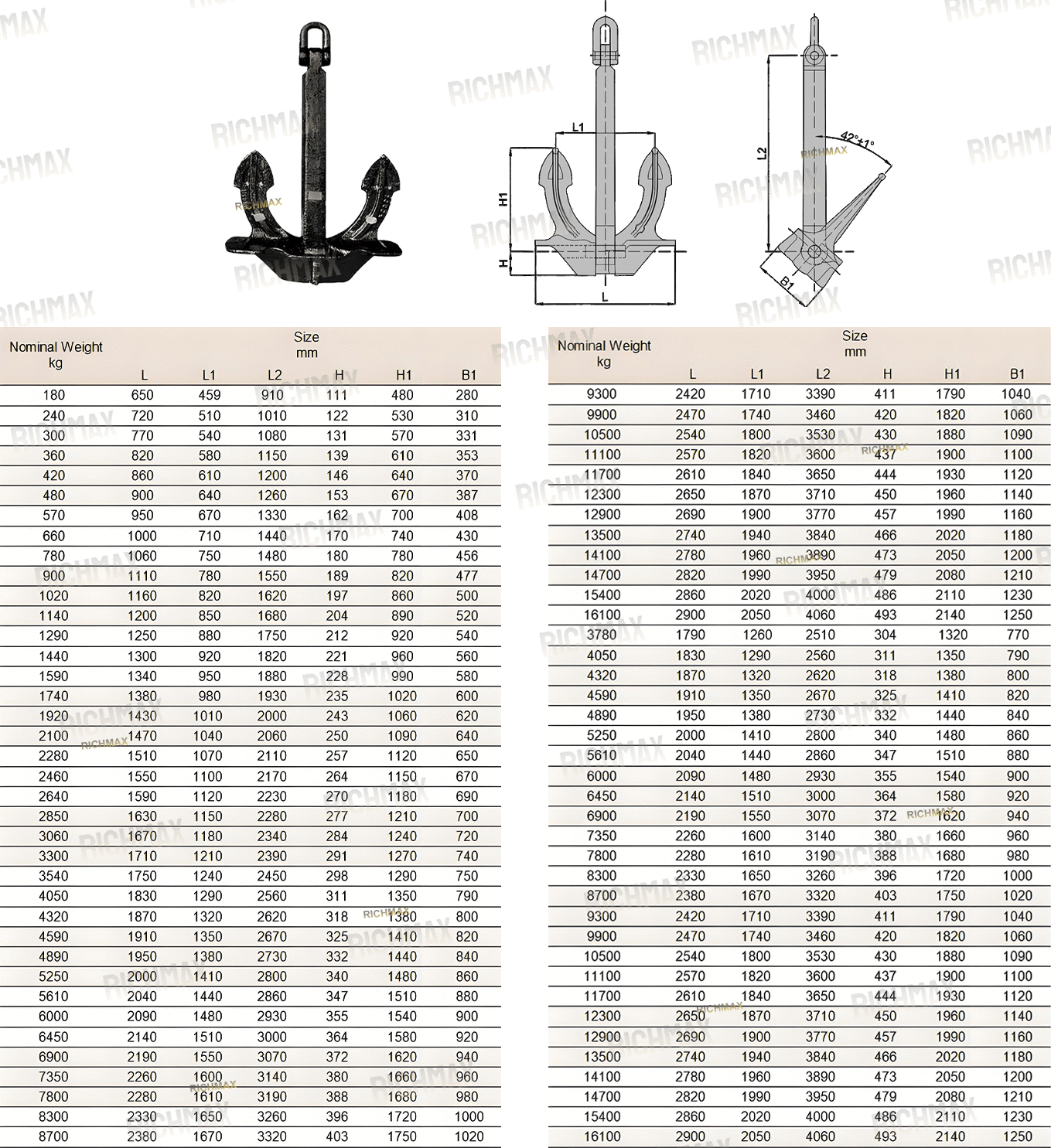

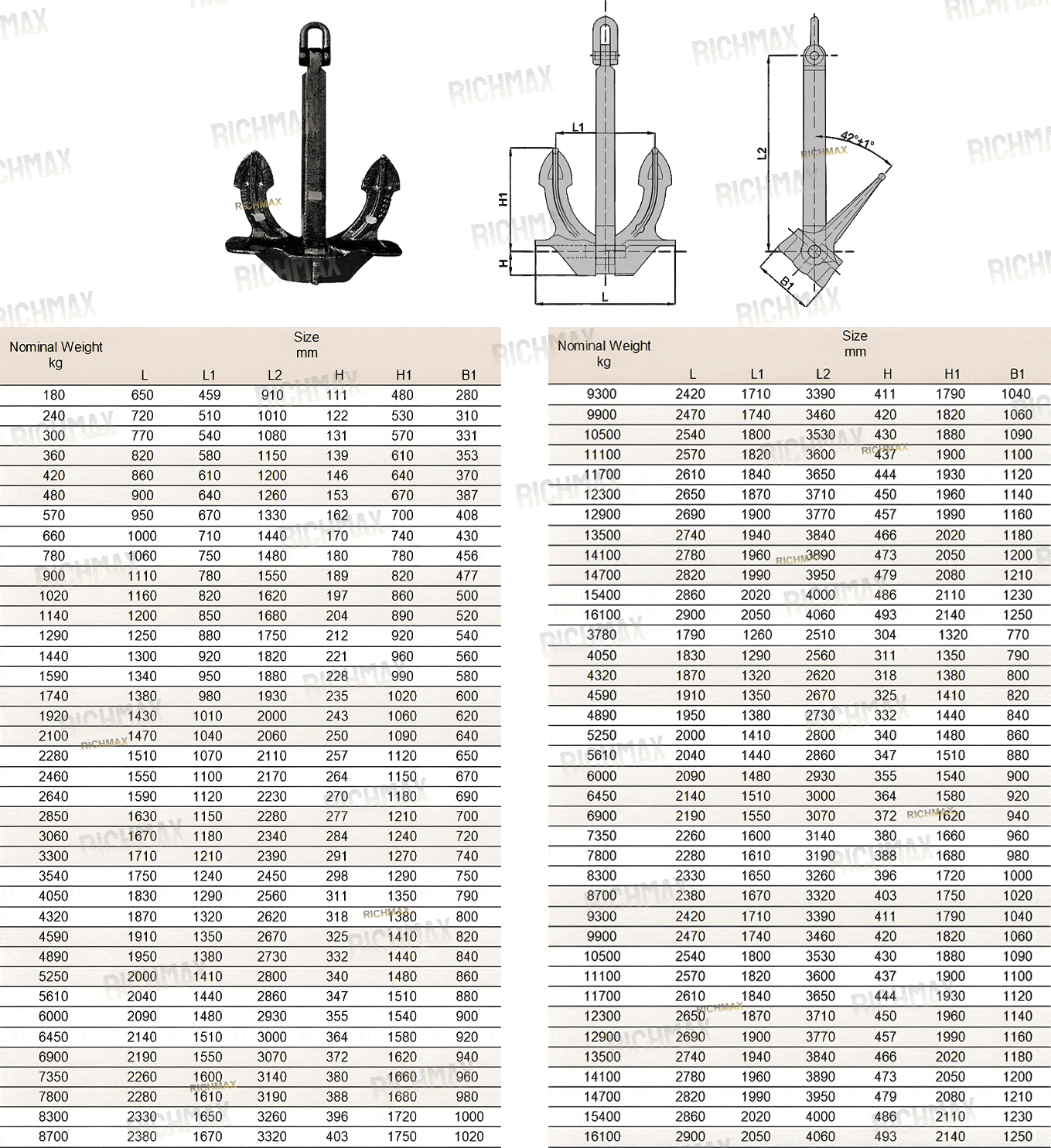

Designed and tested in compliance with JIS F3302 and JIS F2002 standards, featuring fluke-shank load optimization for improved penetration and stability under dynamic loads. Available in weights from 180 kg to 20,000 kg.

Request drawings or load analysis data to evaluate suitability for your vessel class and anchoring conditions.

Marine-Grade Forged Steel Construction

Constructed from high-tensile forged steel, the JIS Stockless Anchor ensures outstanding durability and resistance against mechanical fatigue during long-term offshore operations.

Material options include Grade Q235, Q345, or 42CrMo, with optional heat treatment and ultrasonic testing to ensure microstructural integrity. Surface finishing available in hot-dip galvanization or black coating.

Contact our technical team to get detailed material certificates and finishing options for your procurement requirements.

Certified to International Classification Standards

This anchor meets the highest safety and quality benchmarks approved by major classification societies such as ABS, LR, DNV, CCS and NK.

Each production batch undergoes proof load tests according to IACS UR A1, with full traceability and class certificates provided upon shipment.

Request your classification certificates now to ensure smooth ship survey and approval.

Optimized for Heavy-Duty Commercial Vessels

The JIS Stockless Anchor offers high efficiency for medium to large cargo ships, tankers, and offshore supply vessels that require stable and efficient anchoring in variable marine environments.

Successfully deployed on Panamax-class bulk carriers and offshore workboats operating in Southeast Asia and the Middle East.

Tested for over 150% holding power relative to conventional stockless designs.

Get in touch for a quotation tailored to your vessel type and sea condition requirements.

Efficient Handling and Reduced Maintenance

The symmetrical design ensures quick retrieval and smooth storage, minimizing wear on chain links and windlass equipment.

Each anchor is CNC-machined at the shank-eye interface to maintain tolerance within ±0.3 mm, reducing vibration and mechanical stress during retrieval.

Request a maintenance recommendation guide to optimize your ship’s anchor handling system.

OEM & Global Supply Capability

As a professional marine anchor manufacturer, we provide full OEM and ODM production services for shipyards and distributors worldwide.

Annual production capacity exceeds 500 tons, with standard lead time of 30–35 days. We offer export-ready packaging and shipment through Ningbo, Qingdao, and Shanghai ports.

Send your specifications or drawings now to receive a detailed quotation and secure your manufacturing slot.
