#1 MARINE HARDWARE
G100 Special Clevis Self-Lock Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
◆ Positive lock latch is self-locking when hook is loaded

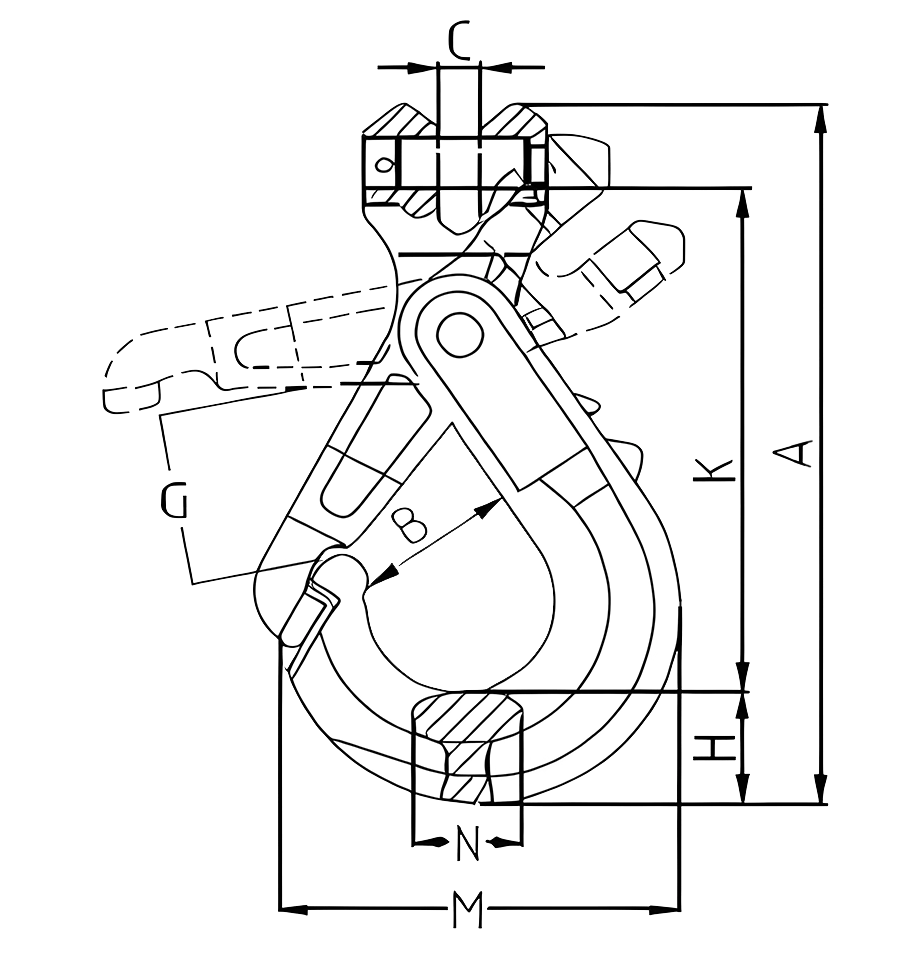

Product Details
| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | C | H | G | N | M | K |
| 08 | 0.78 | 2.5 | 10 | 165±3 | 37.5±2 | 9.5±0.5 | 21±1 | 38±2 | 21.5±1 | 91±2 | 118±2 |
| 10 | 1.42 | 4 | 16 | 204±3 | 48±2 | 12.5±1 | 30.5±1.5 | 45±3 | 23±1.5 | 113±2 | 150±2 |
| 13 | 2.56 | 6.7 | 26.8 | 244±4 | 52.5±3 | 15±1.5 | 39±1.5 | 57±3 | 30±1.5 | 135±3 | 176±3 |
| 16 | 4.21 | 10 | 40 | 288±4 | 68±3 | 18.5±1.5 | 49.5±3 | 59±3 | 32±2 | 168±3 | 250±3 |
Ultimate Load is 4 times the Working Load Limit
