G100 Special Swivel Self-Lock Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
◆ Positive lock latch is self-locking when hook is loaded
Product Details

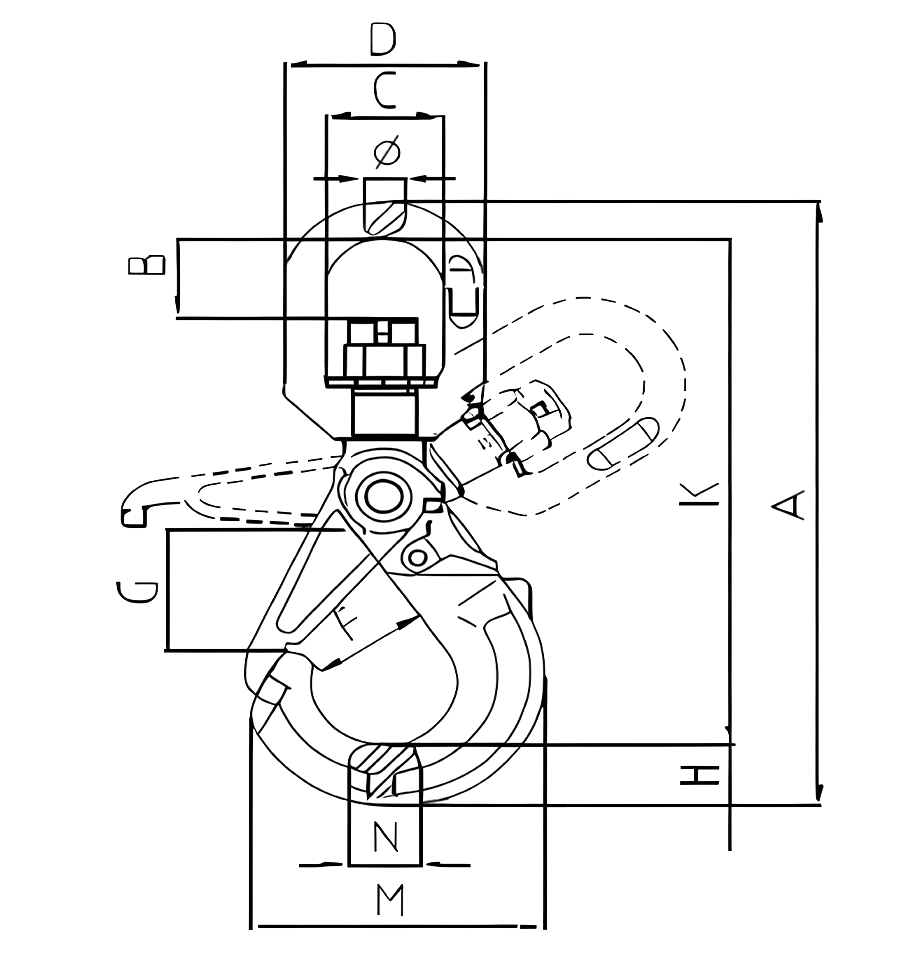

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | C | D | Φ | F | G | H | N | M | K |
| 08 | 1.03 | 2.5 | 10 | 220±3 | 28±2 | 36±1.5 | 62±1.5 | 13±1 | 38±2 | 39±2 | 21±1 | 21.5±1 | 91±2 | 186±3 |
| 10 | 1.86 | 4 | 16 | 265±3 | 38±2 | 42±2 | 73±2 | 15.5±1 | 48±3 | 45±3 | 30.5±1. | 23±1.5 | 113±2 | 219±3 |
| 13 | 3.34 | 6.7 | 26.8 | 295±4 | 45±3 | 49±2 | 87.5±2 | 19±1 | 52.5±3 | 57±3 | 39±1.5 | 30±1.5 | 135±3 | 237±4 |
| 16 | 5.9 | 10 | 40 | 400±4 | 68±3 | 62±2 | 108±2 | 23±1 | 68±3 | 59±3 | 49.5±2 | 32±2 | 168±3 | 327.5±4 |
Ultimate Load is 4 times the Working Load Limit
