G100 Eye Self-Lock Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% individually inspected and tested
◆ Surface finish: Powder coating
◆ Colour: Blue
◆ Positive lock latch is self-locking when hook is loaded
Product Details

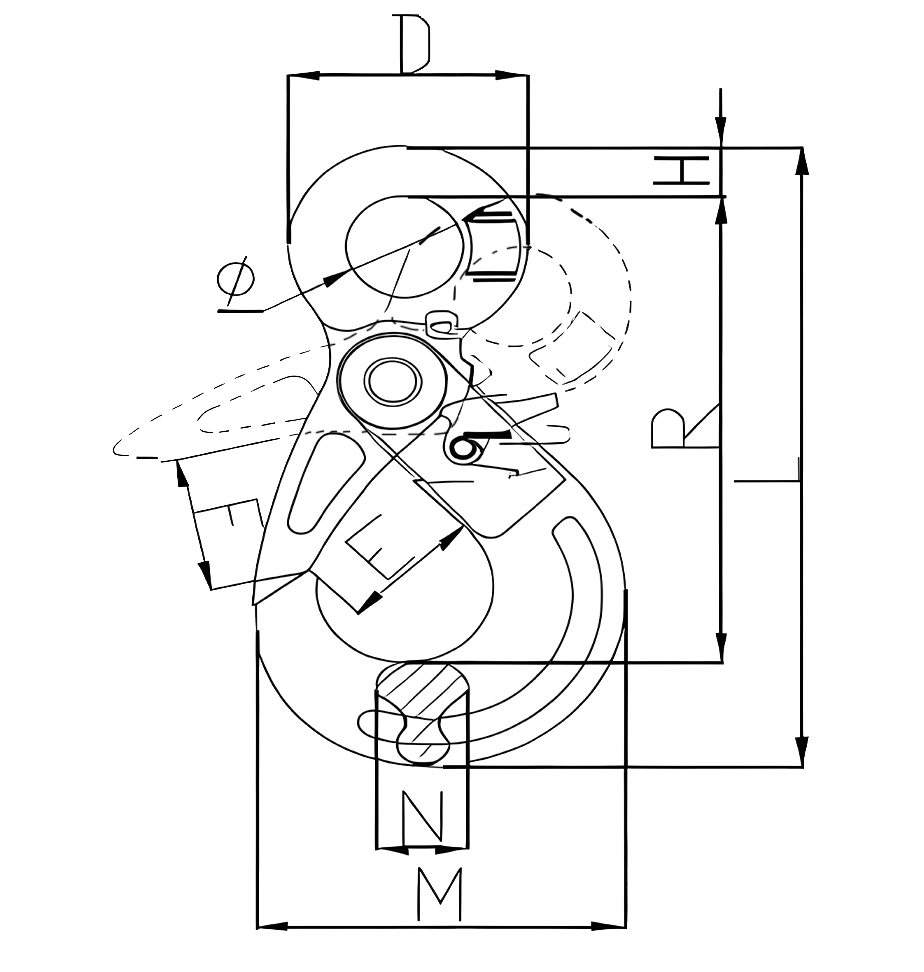

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Φ | D | E | F | R | M | N | L | H |
| 06 | 0.5 | 1.4 | 5.6 | 21±1 | 43±1 | 28±2 | 31.5±2 | 110±4 | 73±2 | 15±1 | 141±4 | 11±1 |
| 07 | 0.81 | 1.9 | 7.6 | 27±1 | 51±1 | 31±2 | 34±2 | 127±4 | 81±2 | 17±1 | 162±4 | 12±1 |
| 08 | 0.9 | 2.5 | 10 | 27±1 | 51±1 | 36±3 | 40±3 | 137±4 | 90±3 | 20±1 | 175±4 | 12±1 |
| 10 | 1.5 | 4 | 16 | 34.5±2 | 64.5±2 | 45±3 | 46±3 | 170±5 | 108±3 | 26±2 | 212±5 | 15±1 |
| 13 | 2.7 | 6.7 | 26.8 | 40±2 | 80±2 | 53.6±3 | 66±4 | 209±5 | 137.5±4 | 32.5±2 | 269±5 | 20±2 |
| 16 | 5.7 | 10 | 40 | 50±3 | 104±3 | 61±4 | 75±4 | 256±6 | 170.5±4 | 38±3 | 333±6 | 27±2 |
| 20 | 7.9 | 16 | 64 | 60±3 | 124±3 | 76.5±4 | 80±5 | 277±6 | 191.5±5 | 50±3 | 368.5±6 | 30±2 |
| 22 | 11.2 | 19 | 76 | 70±3 | 139±3 | 76±4 | 104±5 | 319±8 | 205±5 | 52±3 | 417±8 | 33±2 |
| 26 | 20.5 | 26.5 | 106 | 76±3 | 154±3 | 99±4 | 107±5 | 370±8 | 251±5 | 60±3 | 489±8 | 38±2 |
Ultimate Load is 4 times the Working Load Limit
