G100 Clevis Sling Hook With Latch
G100 Clevis Sling Hook With Latch
Size: 6mm-22mm
Surface finish: Powder coating
Surface Colour: Blue
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for G100 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% individually inspected and tested
Note:
◆ 25% stronger than G80
Product Details

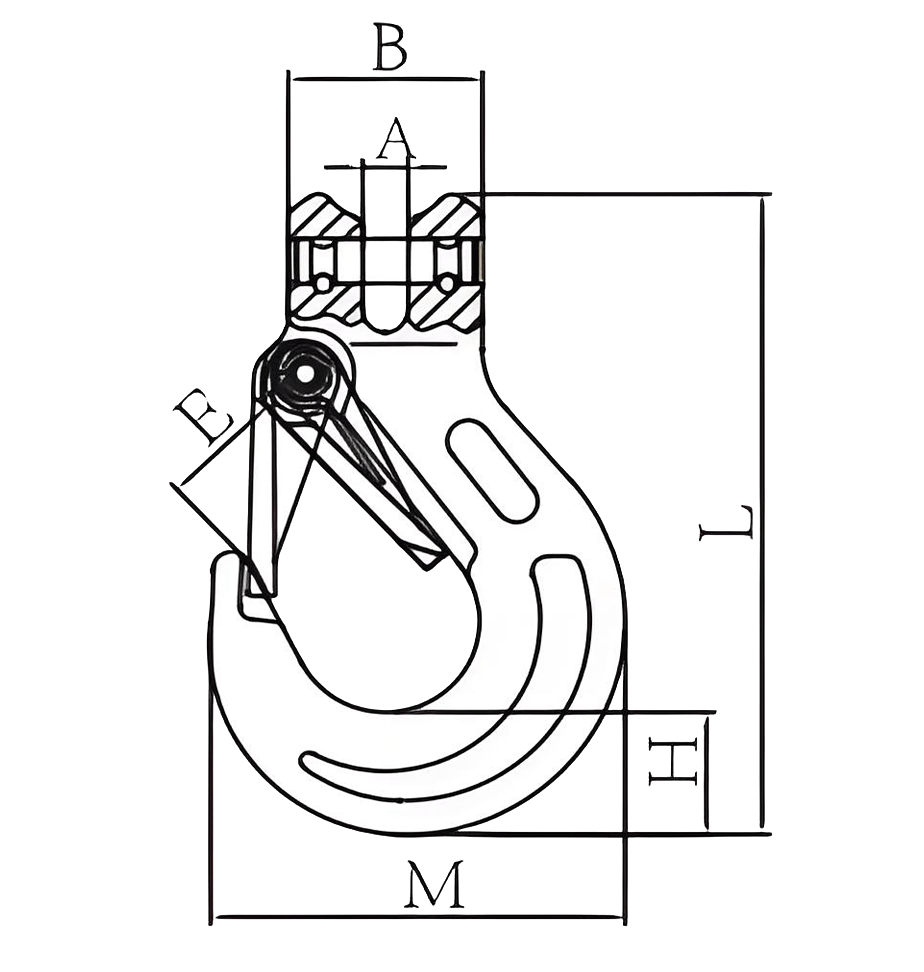

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±0.5 | B±1 | E±1.5 | H±1 | M±2 | L±2.5 |
| 06 | 0.33 | 1.4 | 5.6 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 |
| 08 | 0.7 | 2.5 | 10 | 9.5 | 37 | 25 | 27.5 | 88 | 134 |
| 10 | 1.3 | 4 | 16 | 12 | 48 | 28 | 33.5 | 105.5 | 161.5 |
| 13 | 2.3 | 6.7 | 26.8 | 15 | 59 | 38 | 42 | 134 | 203 |
| 16 | 3.6 | 10 | 40 | 18.5 | 70 | 44 | 50 | 160.5 | 248 |
| 20 | 7 | 16 | 64 | 25 | 85 | 52 | 56 | 190.5 | 297 |
| 22 | 12.1 | 19 | 76 | 27 | 100 | 66 | 62 | 214.5 | 326 |
Ultimate Load is 4 times the Working Load Limit
Both cast and stamped latches are available
