G100 Swivel Self-Lock Hook With Bearing
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
◆ Positive lock latch is self-locking when hook is loaded.
Product Details

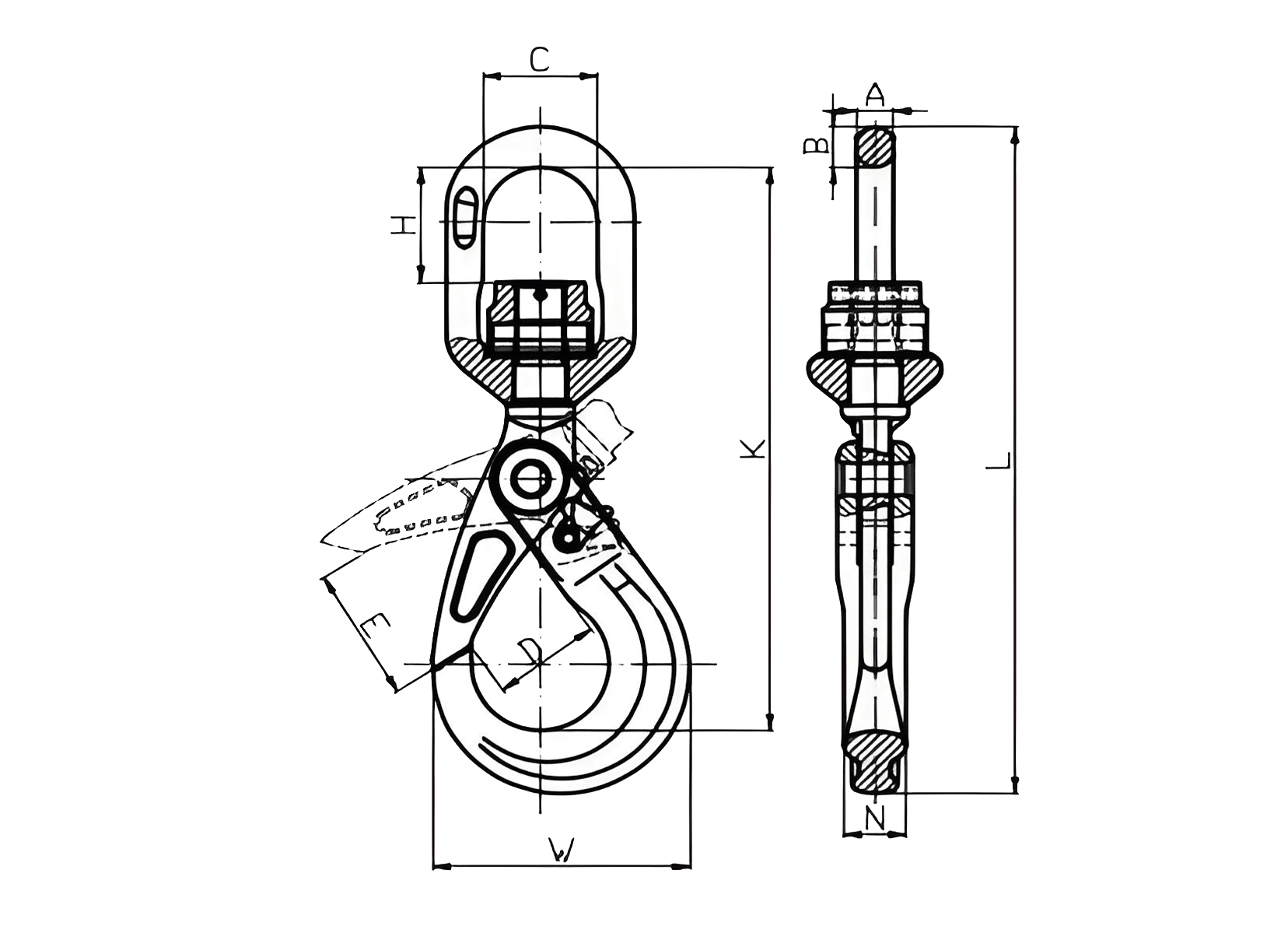

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±1.5 | B±1.5 | C±2 | D±2 | E±2.5 | N±1 | H±3 | K±3 | L±5 | W±3 |
| 6-10 | 0.67 | 1.4 | 5.6 | 11.5 | 13 | 37 | 27 | 30 | 15 | 32 | 163 | 196.5 | 70 |
| 8-10 | 1.21 | 2.5 | 10 | 13 | 15 | 41 | 35.5 | 40 | 20 | 39 | 202 | 243 | 90 |
| 10-10 | 2.2 | 4 | 16 | 15.5 | 17.5 | 48 | 45 | 48 | 26 | 48 | 244 | 289 | 108 |
| 13-10 | 4.4 | 6.7 | 26.8 | 17 | 19 | 55 | 52.5 | 63 | 32.5 | 57 | 292 | 351 | 138 |
| 16-10 | 7.48 | 10 | 40 | 21.5 | 26 | 62 | 62 | 75 | 38 | 62 | 346 | 422 | 170 |
| 20-10 | 13.75 | 16 | 64 | 26.5 | 28.5 | 76 | 76 | 80 | 50 | 72 | 396 | 487 | 191 |
| 22-10 | 18.81 | 19 | 76 | 33 | 33 | 97 | 79 | 95 | 52 | 97 | 465 | 563 | 208 |
Ultimate Load is 4 times the Working Load Limit
